Allen-Bradley PowerFlex 700AFE Migration Guide

Rockwell Automation Publication 750-RM003A-EN-P - April 2018 93
Enclosure Information Appendix A

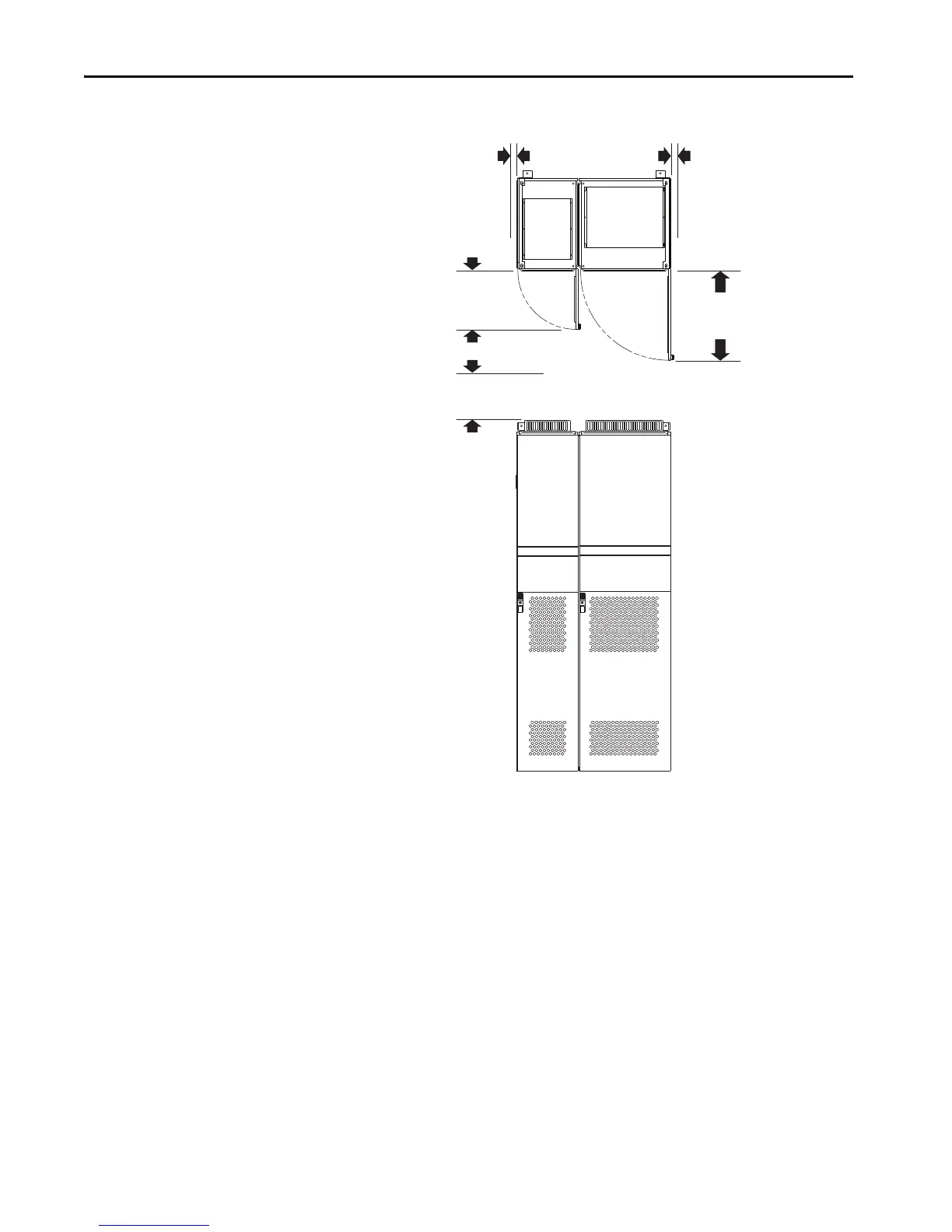

Figure 30 - Frame 10 in IP21 Rittal Enclosure
200 mm
(7.87 in.)
400 mm
(15.7 in.)
600 mm
(23.6 in.)
50 mm
(2.0 in.)
50 mm
(2.0 in.)
Top View
Front View
Clearance to Wall Clearance to Wall
Height Clearance
Door Swing Clearance
Door Swing Clearance
