Allen-Bradley PowerFlex 700S - Human Interface Modules; User Installed Options

18 Rockwell Automation Publication 20D-TD002L-EN-P - July 2018
PowerFlex 700S Drives with Phase II Control
User Installed Options

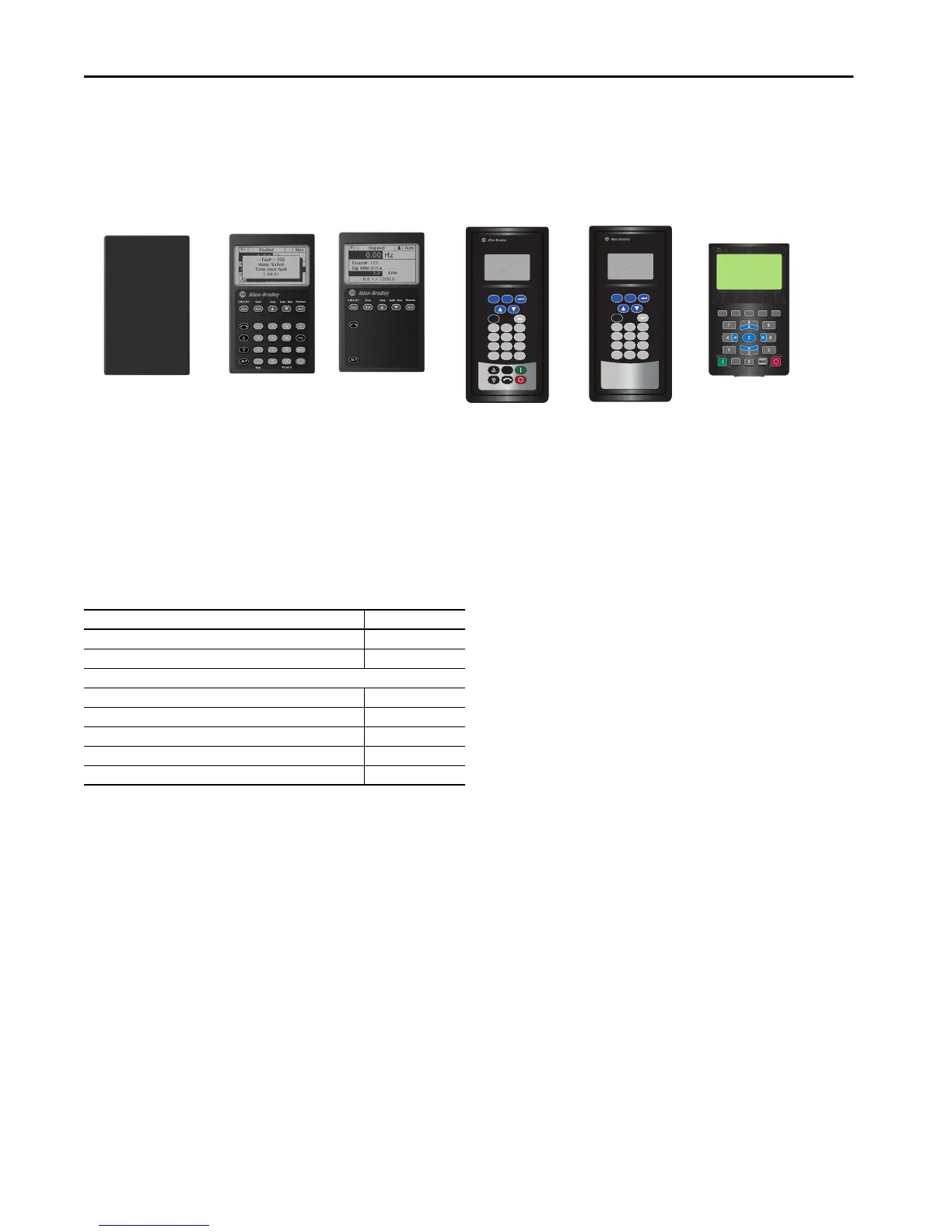

Human Interface Modules
Human Interface Module Accessories
Description Cat. No.
Bezel Kit for LCD HIMs, NEMA/UL Type 1
(1)
(1) Includes an interface cable (1202-C30) for connection to drive.
20-HIM-B1
PowerFlex HIM Interface Cable, 1 m (39 in)
(2)
(2) Required only when HIM is used as handheld or remote.
20-HIM-H10
Cable Kit (Male-Female)
(3)
(3) Required in addition to 20-HIM-H10 for distances up to a total maximum of 10 Meters (32.8 Feet).
0.33 Meters (1.1 Feet)
1202-H03
1 Meter (3.3 Feet)
1202-H10
3 Meter (9.8 Feet)
1202-H30
9 Meter (29.5 Feet)
1202-H90
DPI/SCANport™ One to Two Port Splitter Cable 1203-S03
No HIM (Blank Plate)
20-HIM-A0
LCD Display, Full
Numeric Keypad
20-HIM-A3
LCD Display,
Programmer Only
20-HIM-A5
Remote (Panel Mount) LCD
Display, Full Numeric
Keypad
20-HIM-C3S
(1)(2)
Remote (Panel Mount) LCD
Display, Programmer Only
20-HIM-C5S
(1)(2)
(1) For indoor use only.
(2) Includes a 1202-C30 interface cable (3 meters) for connection to drive.


LCD Display, Full Numeric
Keypad, Handheld/Local,
Drive Mounted, NEMA Type 1
20-HIM-A6
(1)(2)
Esc
Sel
Jog
Alt
789
456
123
.
0 +/-
Esc
Sel
Alt
789
456
123
.
0 +/-
