Allen-Bradley PowerFlex 753 User Manual

Rockwell Automation Publication 750-QS001A-EN-P - March 2015 15

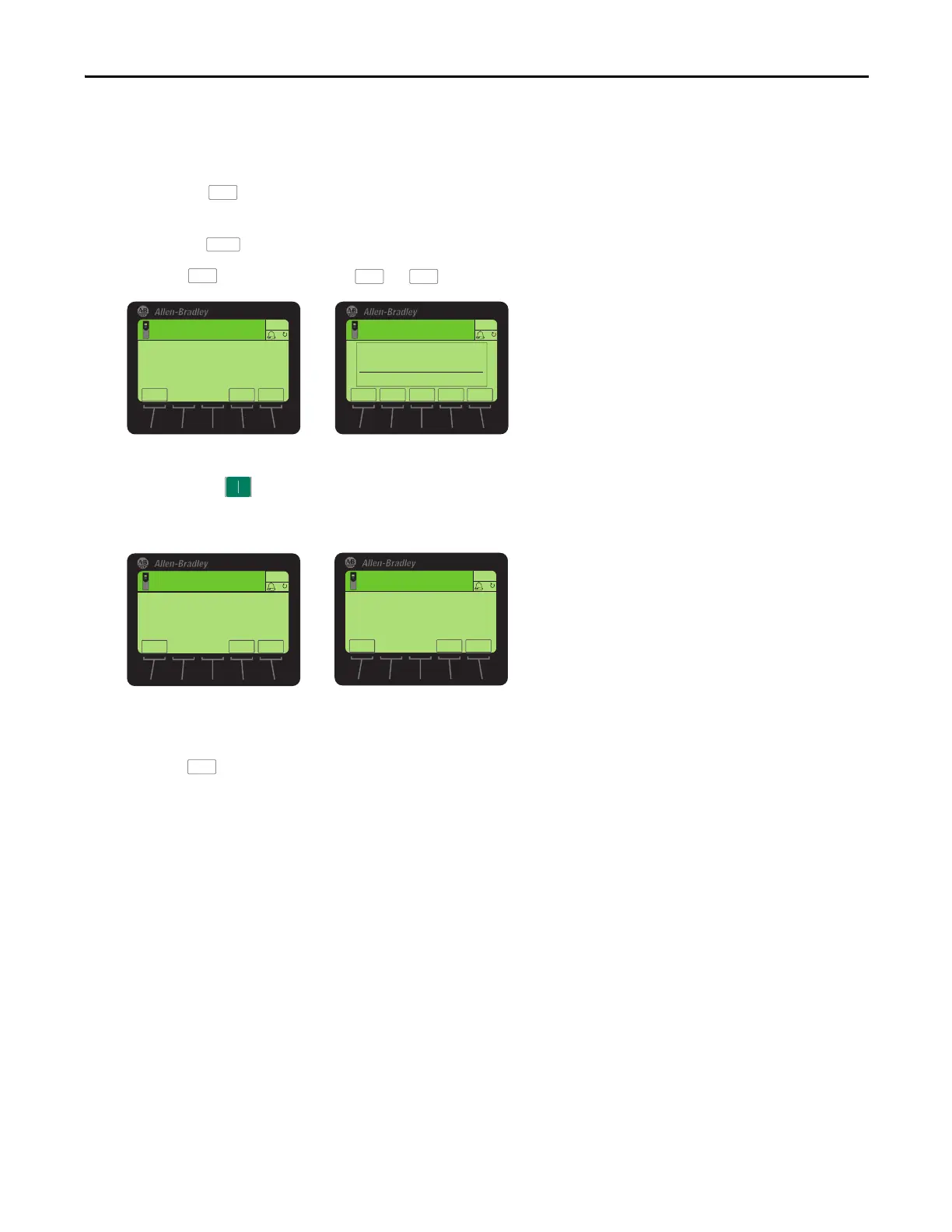

Step 3: Power Up, Configure the Drive, and Spin the Motor Shaft
Autotune
1. Access parameter 70 [Autotune].
• Press the soft key.
• Enter 70.
• Press the soft key.
2. Press the soft key and use the or soft keys to select “Static Tune 2.”
3. Press the Start key.
“Autotuning” replaces “Stopped” while the drive is tuning.
Af
ter Autotune routine is done, “Ready 0” appears in
parameter 70 [Autotune] and the top line again displays “Stopped”.
4. The Autotune routine is complete.
5. Press the soft key to exit Autotune.
PAR#
ENTER
EDIT
▼
▼
E S C ENTER
Stopped
0.000 Hz
AUTO
F
▲
0 << 2
Edit Autotune
Static Tune 2
▼

Stopped
0.000 Hz
AUTO
Port 00 Dev Param 70
Autotune
Ready 0
ESC EDIT
F
PAR#
Parameter Screen Edit Screen
Stopped
0.000 Hz
AUTO
Port 00 Dev Param 70
Autotune
Ready 0
ESC TEXT
F
PAR#
Autotuning
AUTO
Port 00 Dev Param 70
Autotune
Static Tune 2
ESC TEXT
F
PAR#
In Progress Screen
Result Screen
ESC

Allen-Bradley PowerFlex 753 Specifications

General

Output Voltage	0 to input voltage
Humidity	5% to 95% non-condensing
Altitude	Up to 1000 m (3300 ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC
Horsepower	1 to 250 HP
Enclosure	NEMA/UL Type 1, 12, IP20, IP30, IP54
Communications	EtherNet/IP, DeviceNet, ControlNet
Control Method	Sensorless Vector Control, V/Hz Control
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
