Reference Section

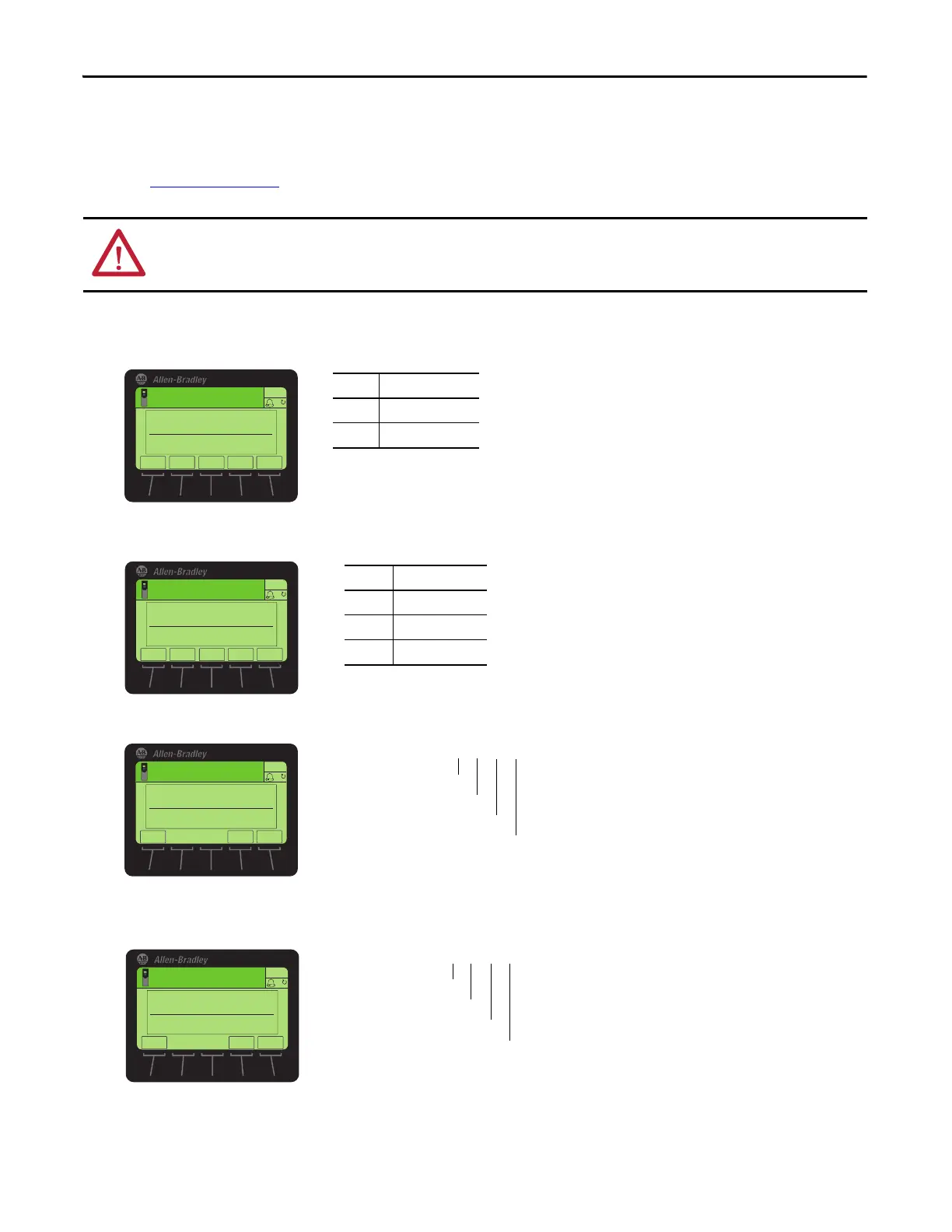

Setting the IP Address Using Adapter Parameters
1. Verify that the IP address rotary switches are set to any value other than 001…254 or 888. The default setting is 999.
See Tab le 38 on page
59 for more information on the address settings.
2. Apply power to the drive.
3. Set the value of parameter 36 [BOOTP] to ‘0’ (Disabled).
4. Set the value of parameter 5 [Net Addr Sel] to ‘1’ (Parameters).
5. Set the value of parameters 7 [IP Addr Cfg 1] through 10 [IP Addr Cfg 4] to a unique IP address.
6. If required, set the value of parameters 11 [Subnet Cfg 1] through 14 [Subnet Cfg 4] to the desired value for the
subnet mask.
ATTENTION: Risk of equipment damage, injury, or death exists. Unpredictable operation may occur if you fail to verify that
parameter settings are compatible with your application. Verify that settings are compatible with your application before applying
power to the drive.
Value Setting
0 Disabled
1Enabled (Default)
ESC

ENTER
Stopped
0.000 Hz
AUTO
F
▲▼
Edit BOOTP
Disabled 0
0<<1
Value Setting
1Parameters
2BOOTP
3DHCP (default)
ESC

ENTER
Stopped
0.00 Hz
AUTO
F
▲▼
Edit Net Addr Sel
DHCP 3
1<<3
Default = 0.0.0.0 255.255.255.255
[IP Addr Cfg 1]
[IP Addr Cfg 2]
[IP Addr Cfg 3]
[IP Addr Cfg 4]
Edit IP Addr Cfg 1
0
0 << 255
ESC

ENTER
Stopped
0.000 Hz
AUTO
F
Default = 0.0.0.0 255.255.255.255
[Subnet Cfg 1]
[Subnet Cfg 2]
[Subnet Cfg 3]
[Subnet Cfg 4]
Edit Subnet Cfg 1
0
0 << 255
ESC

ENTER
Stopped
0.000 Hz
AUTO
F

Allen-Bradley PowerFlex 753 Specifications

General

Output Voltage	0 to input voltage
Humidity	5% to 95% non-condensing
Altitude	Up to 1000 m (3300 ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC
Horsepower	1 to 250 HP
Enclosure	NEMA/UL Type 1, 12, IP20, IP30, IP54
Communications	EtherNet/IP, DeviceNet, ControlNet
Control Method	Sensorless Vector Control, V/Hz Control
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
