Allen-Bradley PowerFlex 753 User Manual

Rockwell Automation Publication 750-QS001A-EN-P - March 2015 71
Reference Section

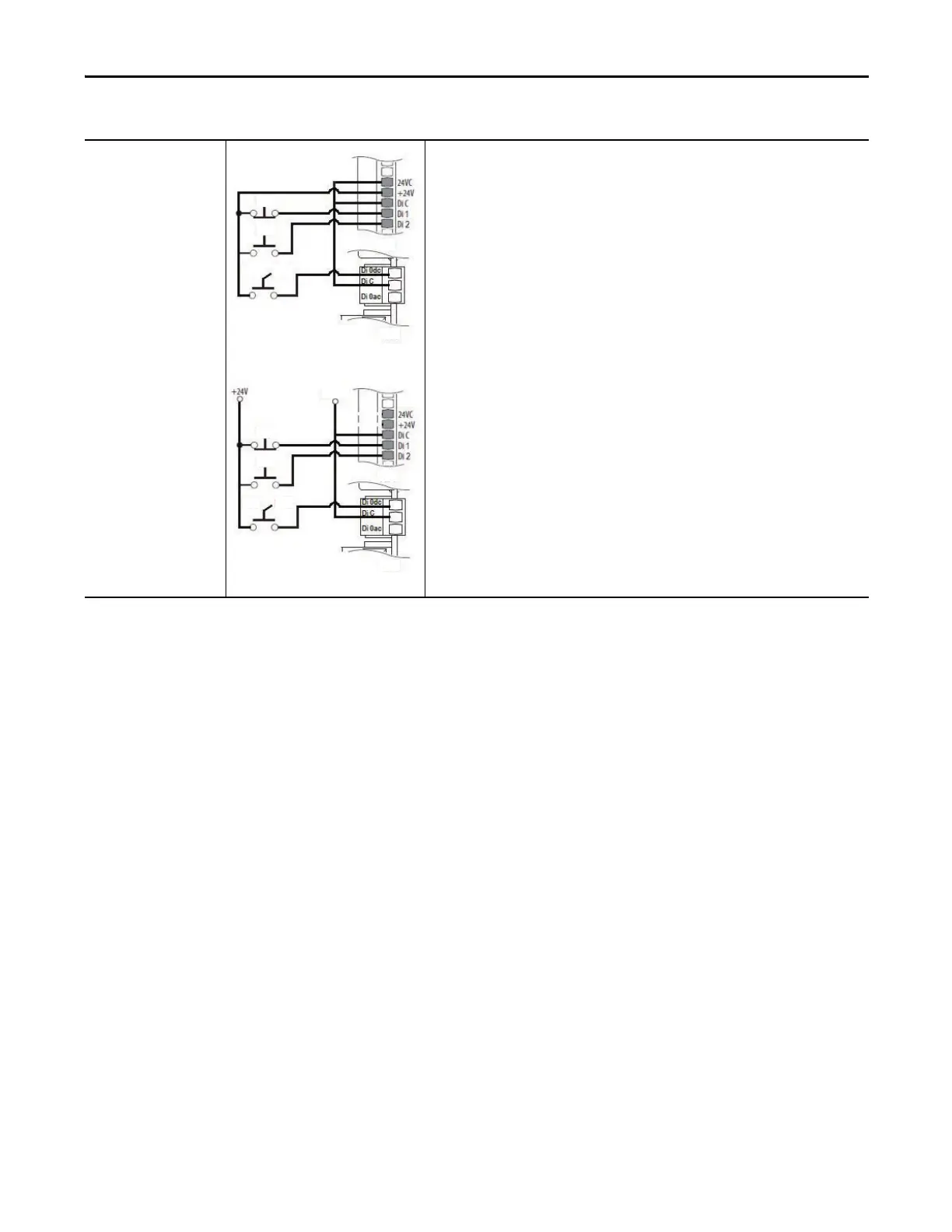

Table 47 - 753 Main Control Board TB1 & TB3 3-Wire Control with Reversing Wiring
3-Wire Control Reversing
Internal Supply
753 Main Control Board TB1 & TB3
Set Selection
Port 0: P158 [DI Stop] = Port 0: P220 [Digital In Sts], bit 1 = Digital In 0
Port 0: P161 [DI Start] = Port 0: P220 [Digital In Sts], bit 2 = Digital In 1
Port 0: P162 [DI Fwd Reverse] = Port 0: P220 [Digital In Sts], bit 3 = Digital In 2
View Results
Port 0: P220 [Digital In Sts]
Port 0: P935 [Drive Status 1]
3-Wire Control Reversing
External 24V Supply
753 Main Control Board TB1 & TB3
Stop
Start
Rev Fwd
TB1
TB3
Stop
Start
Rev Fwd
TB1
TB3
Common

Allen-Bradley PowerFlex 753 Specifications

General

Output Voltage	0 to input voltage
Humidity	5% to 95% non-condensing
Altitude	Up to 1000 m (3300 ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC
Horsepower	1 to 250 HP
Enclosure	NEMA/UL Type 1, 12, IP20, IP30, IP54
Communications	EtherNet/IP, DeviceNet, ControlNet
Control Method	Sensorless Vector Control, V/Hz Control
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
