Allen-Bradley PowerFlex 753 User Manual

72 Rockwell Automation Publication 750-QS001A-EN-P - March 2015
Reference Section

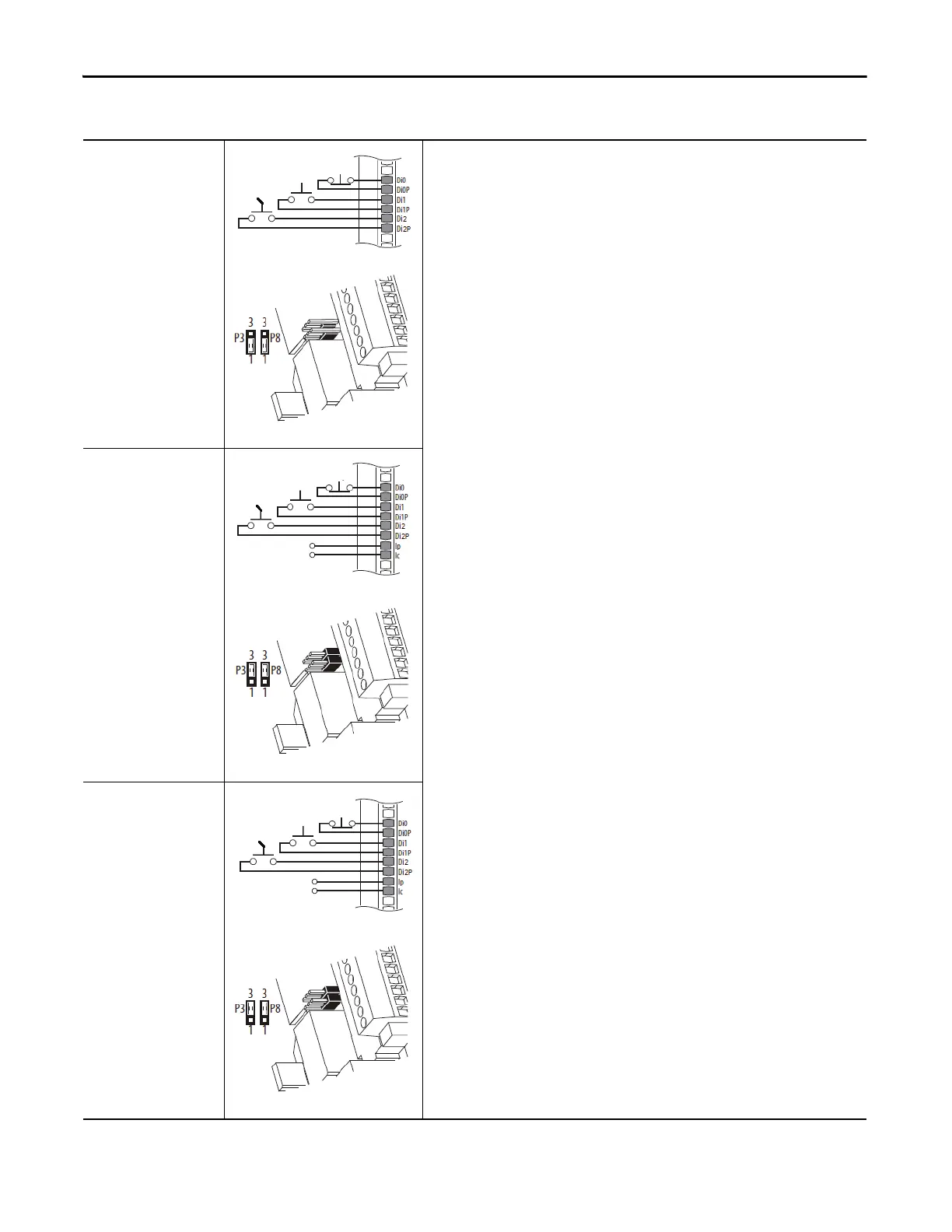

Table 48 - 750-11 Series I/O Module TB1 3-Wire Control with Reversing Wiring
3-Wire Control Reversing
Internal Supply
750-11 Series I/O Module TB1
Set Selection
Port 0: P158 [DI Stop] = Port 4 (or port where your I/O Module is installed): P1 [Dig In Sts],
bit 0 = Input 0
Port 0: P161 [DI Start] = Port 4 (or port where your I/O Module is installed): P1 [Dig In Sts],
bit 1 = Input 1
Port 0: P162 [DI Fwd Reverse] = Port 4 (or port where your I/O Module is installed): P1 [Dig In Sts],
bit 2 = Input 2
View Results
Port 4 (or port where your I/O Module is installed): P1 [Dig In Sts]
Port 0: P935 [Drive Status 1]
3-Wire Control Reversing
External 24V Supply
20-750-1132C-2R
20-720-1133C-1R2T
750-11 Series I/O Module TB1
3-Wire Control Reversing
External 120V Supply
20-750-1132D-2R
750-11 Series I/O Module TB1
Fwd Rev
Start
Stop
Fwd Rev
Start
Stop
+24V
Common
Fwd Rev
Start
Stop
+24V
Common

Allen-Bradley PowerFlex 753 Specifications

General

Output Voltage	0 to input voltage
Humidity	5% to 95% non-condensing
Altitude	Up to 1000 m (3300 ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC
Horsepower	1 to 250 HP
Enclosure	NEMA/UL Type 1, 12, IP20, IP30, IP54
Communications	EtherNet/IP, DeviceNet, ControlNet
Control Method	Sensorless Vector Control, V/Hz Control
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
