Rockwell Automation Publication 750-QS001A-EN-P - March 2015 73
Reference Section

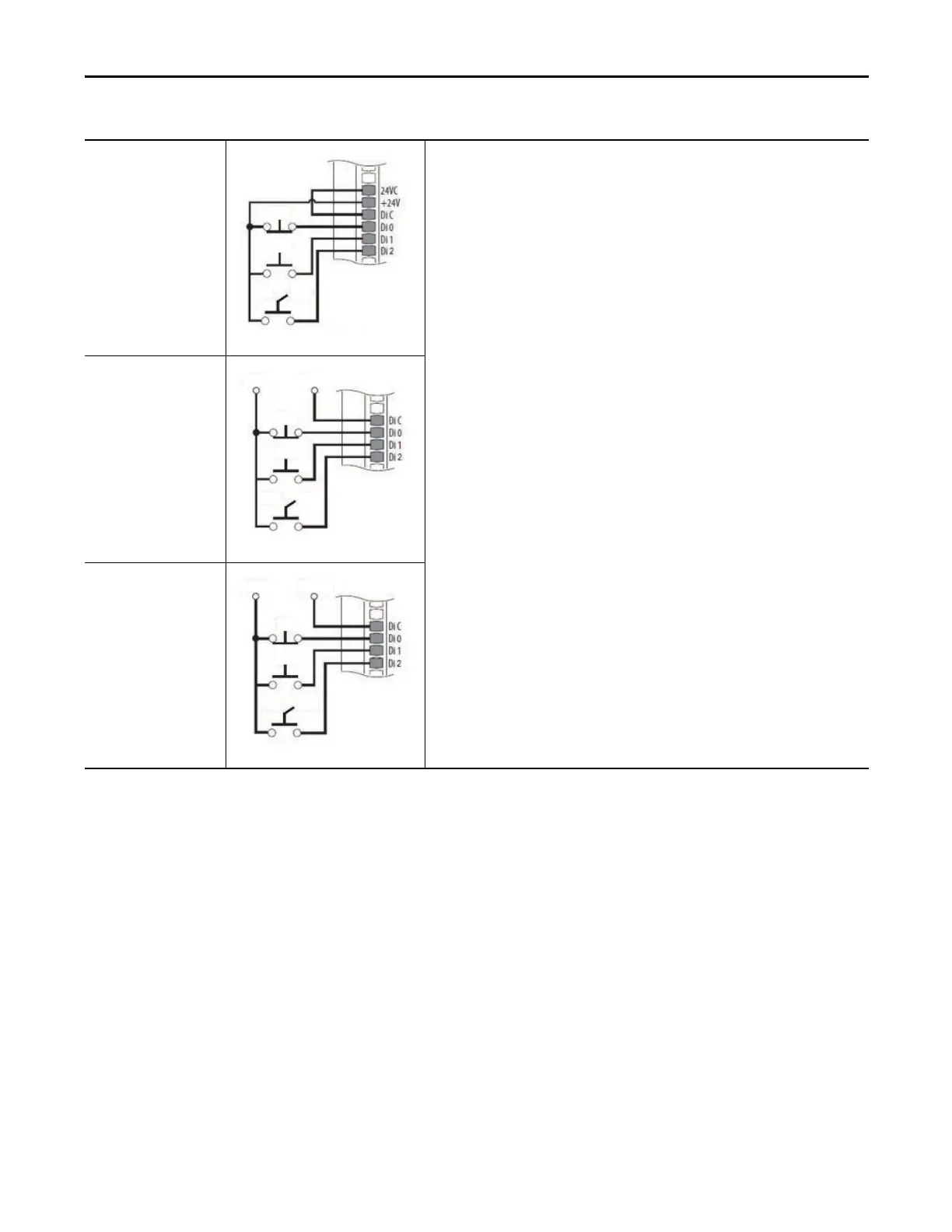

Table 49 - 750-22 Series I/O Module TB1 3-Wire Control with Reversing Wiring
3-Wire Control Reversing
Internal Supply
750-22 Series I/O Module TB1
Set Selection
Port 0: P158 [DI Stop] = Port 4 (or port where your I/O Module is installed): P1 [Dig In Sts],
bit 0 = Input 0
Port 0: P161 [DI Start] = Port 4 (or port where your I/O Module is installed): P1 [Dig In Sts],
bit 1 = Input 1
Port 0: P162 [DI Fwd Reverse] = Port 4 (or port where your I/O Module is installed): P1 [Dig In Sts],
bit 2 = Input 2
View Results
Port 4 (or port where your I/O Module is installed): P1 [Dig In Sts]
Port 0: P935 [Drive Status 1]
3-Wire Control Reversing
External 24V Supply
20-750-2262C-2R
20-720-2263C-1R2T
750-22 Series I/O Module TB1
3-Wire Control Reversing
External 120V Supply
20-750-2262D-2R
750-22 Series I/O Module TB1
Stop
Start
Rev Fwd
Stop
Start
Rev Fwd
+24V Common
Stop
Start
Rev Fwd
+120V Common
