Allen-Bradley Rockwell Automation PowerFlex 700 Series User Manual

28 Rockwell Automation Publication PFLEX-AP005B-EN-P - May 2019
Chapter 1 Drive Selection Considerations

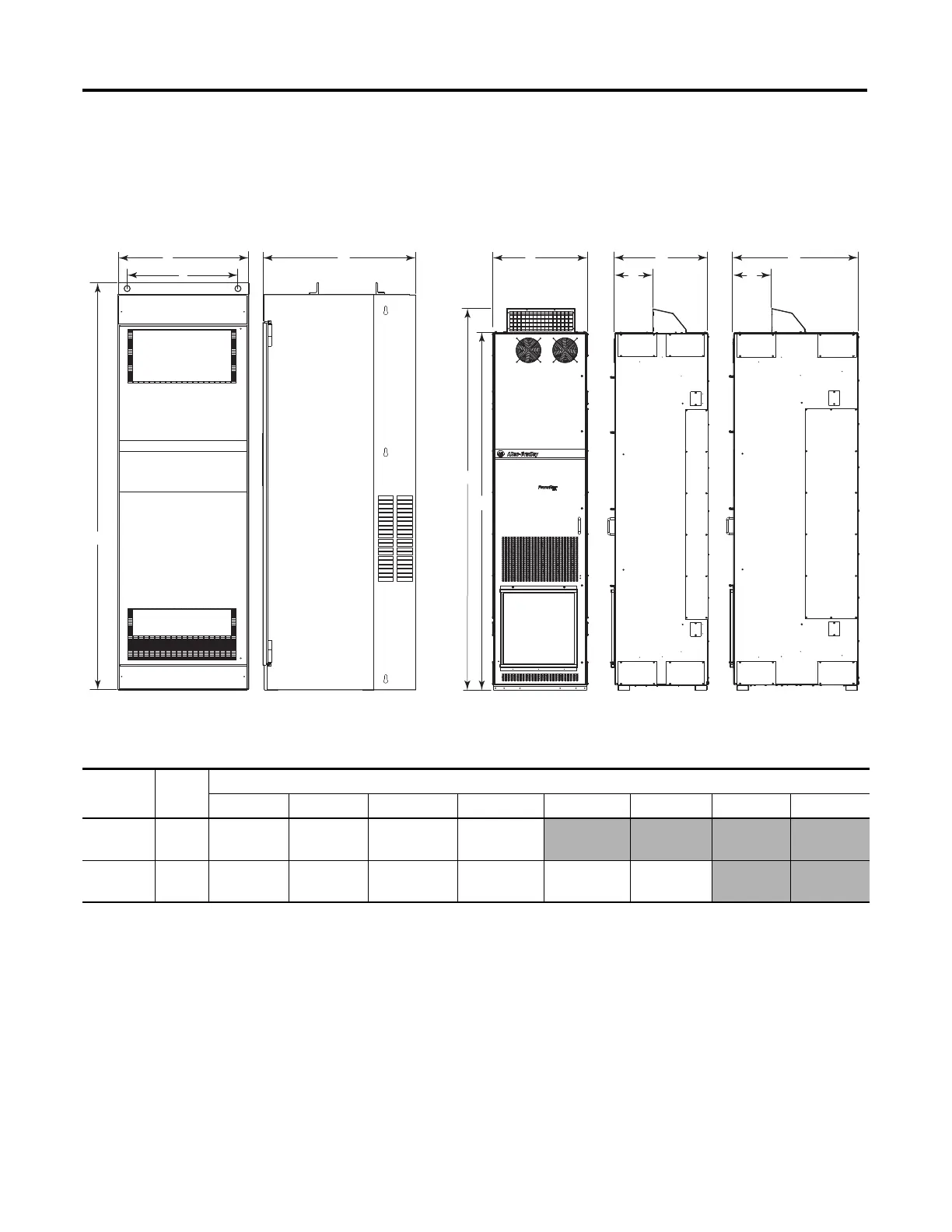

Figure 11 - PowerFlex 700 Frames 8 and 9 (IP20) to PowerFlex 755 Frame 8 (IP20)
NOTE: PowerFlex 753 Drive is not available in a Frame 8 model.
Dimensions mm (in.)
Drive Frame A B C D E F G H
700 8 and 9 757.7 (29.83) —
889.0 (35.0)
(1)
1016.0 (40.0)
(2)
2373.9 (93.46)
755 8 600.0 (23.6) 240.0 (9.4) 600.0 (23.6)
(3)
800.0 (31.5)
(4)
2453.0 (96.6) 2300.0 (90.6) 339.2 (13.35)
(1) For PowerFlex 700 drive catalog numbers 20Bx365…20Bx481.
(2) For PowerFlex 700 drive catalog numbers 20Bx535…20Bx730.
(3) For 2500 MCC cabinet enclosure code B.
(4) For 2500 MCC cabinet enclosure code L.
C
A
B
D
C
A
B
E
D
C
B
PowerFlex 700 Frames 8 and 9
(IP20, NEMA/UL Type 1)
PowerFlex 755 Frame 8
(IP20, NEMA/UL Type 1)
With 2500
MCC Cabinet
(Enclosure Code B)
With 2500
MCC Cabinet
(Enclosure Code L)
