Allen-Bradley SLC 500 BASIC Installation Instructions

8 SLC 500 BASIC and BASIC-T Modules
Publication 1746-IN009B-EN-P - August 2005
Module Jumper JW1
Use jumper JW1 to select one of the following configurations for port PRT1.
• RS-232/423
• RS-422
• RS-485

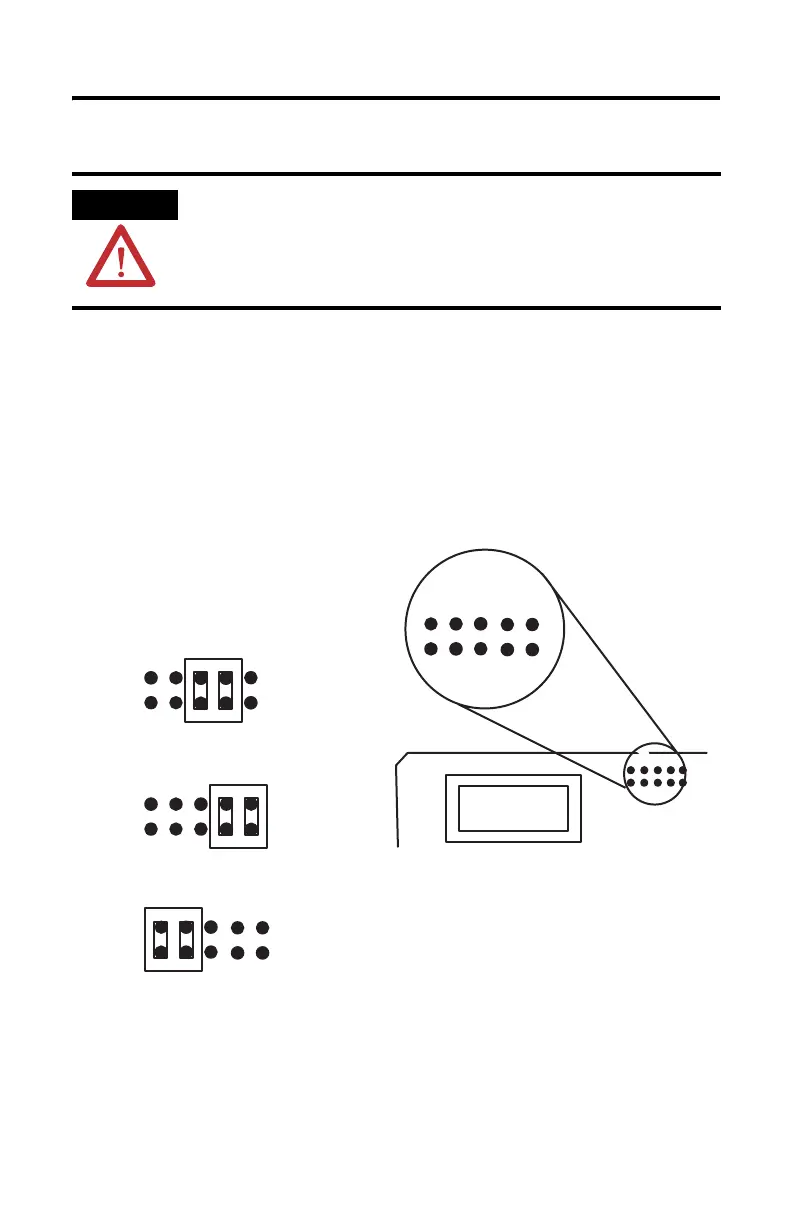

Figure 3 Jumper JW1 Pin Assignments and Settings
ATTENTION
Settings other than those shown for each jumper may cause
damage to the module.
13579
246810
Pin Assignments
RS-232/423 (Shipped Configuration)
RS-422
RS-485
