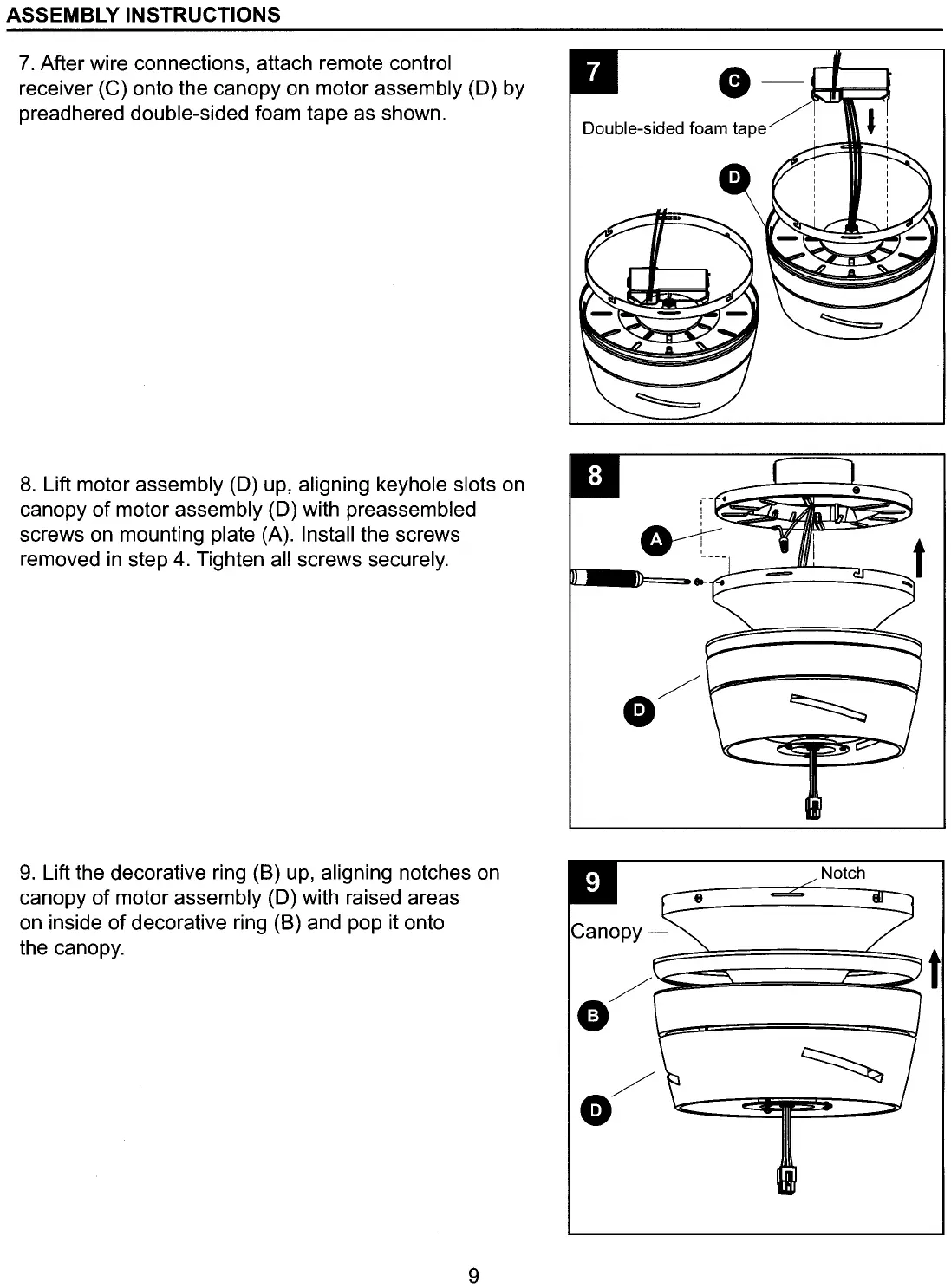

ASSEMBLY INSTRUCTIONS
7.
After wire connections, attach remote control
receiver (C) onto the canopy
on
motor assembly (D) by
preadhered double-sided foam tape
as
shown.
8. Lift motor assembly (D) up, aligning keyhole slots
on
canopy of motor assembly (D) with preassembled
screws
on
mounting plate (A). Install the screws
removed
in
step
4.
Tighten all screws securely.
9.
Lift the decorative ring (B) up, aligning notches
on
canopy
of
motor assembly (D) with raised areas
on
inside
of
decorative ring (B) and pop it onto
the canopy.
9
Double-sided foam tape
