Operating Instructions - cont’d
Pitch Adjustment

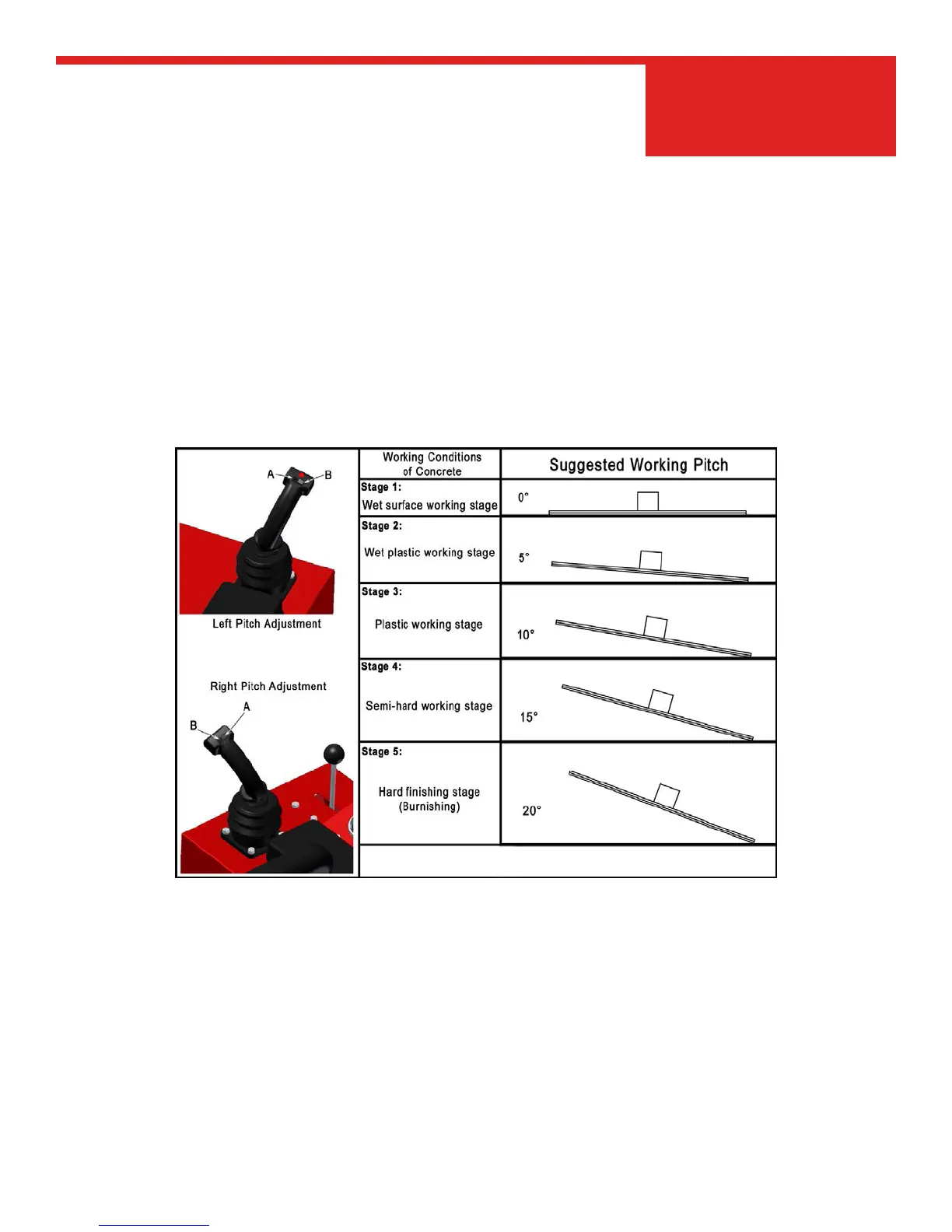

Different pitch angles are needed as you work the different stages of the concrete. See the drawing
below. When changing or setting pitch (angle of trowel blades), set the desired degree of pitch on the
left side of the machine and then adjust the right side to match.
To increase the pitch, press the pitch control button (a) which is located on top of joystick towards the
inside. To decrease the pitch, press the pitch control button (b) which is located on top of joystick to-
wards the outside.
