SECTION 3
SERVICE
Air Filter Maintenance
Pre-Cleaner Maintenance Procedure

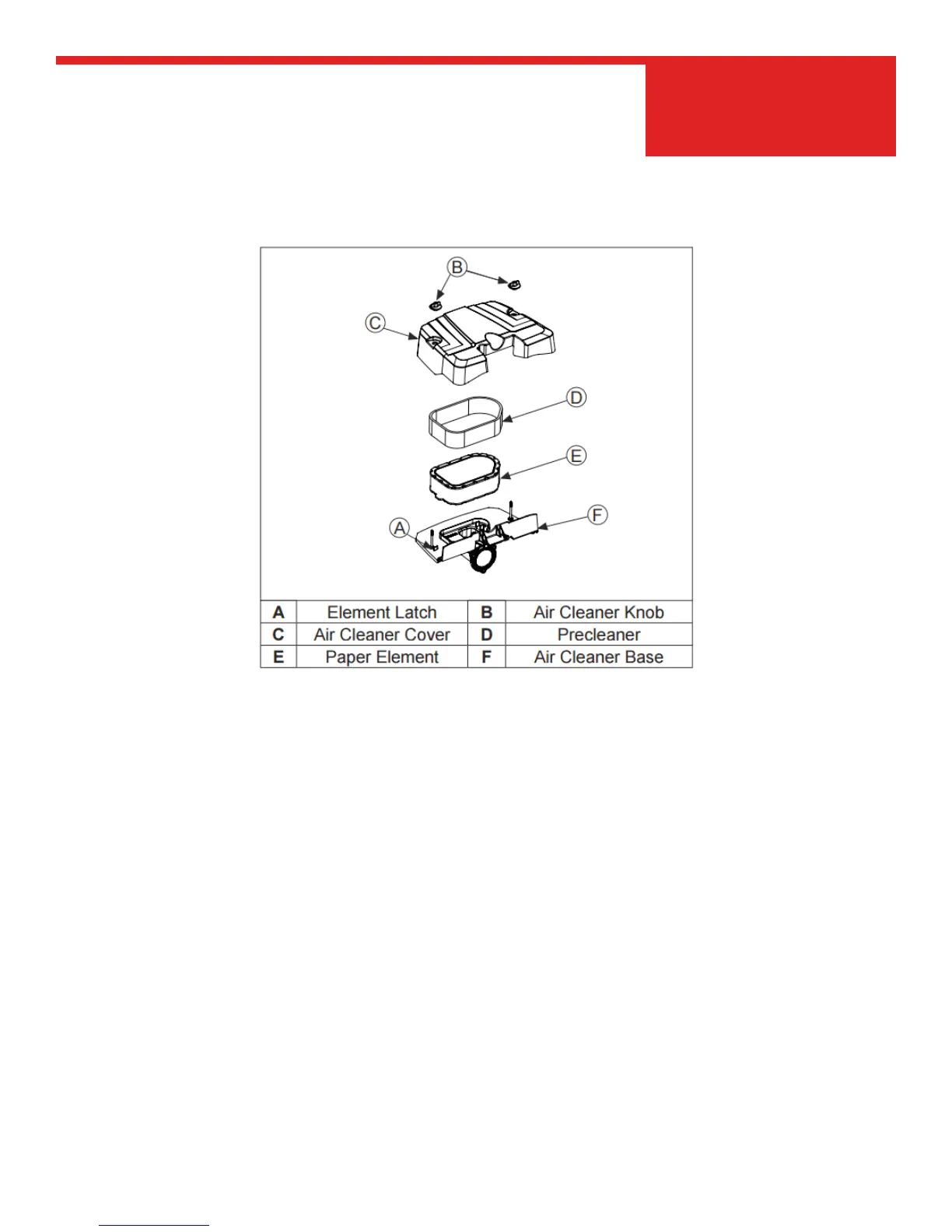

This engine is equipped with a large capacity, dual element air lter—an oiled, foam pre-cleaner sur-
rounds a high density paper element.
Loosen knob and remove air cleaner cover.
Precleaner (Part #: 057992)
1. Remove precleaner from paper element.
2. Replace or wash precleaner in warm water with detergent. Rinse and allow to air dry.
3. Saturate precleaner with new engine oil; squeeze out excess oil.
4. Reinstall precleaner over paper element.
Paper Element (Part #: 057991)
1. Rotate element latch (if equipped); remove paper element with precleaner.
2. Separate precleaner from element; service precleaner and replace paper element.
3. Install new paper element on base; install precleaner over paper element; rotate element latch (if
equipped).
Reinstall air cleaner cover and secure with knob.
