allen HP205 - Right Spider Assembly

064355 - 06/2017
Page 60
SECTION 4
PARTS
RH Spider Assembly

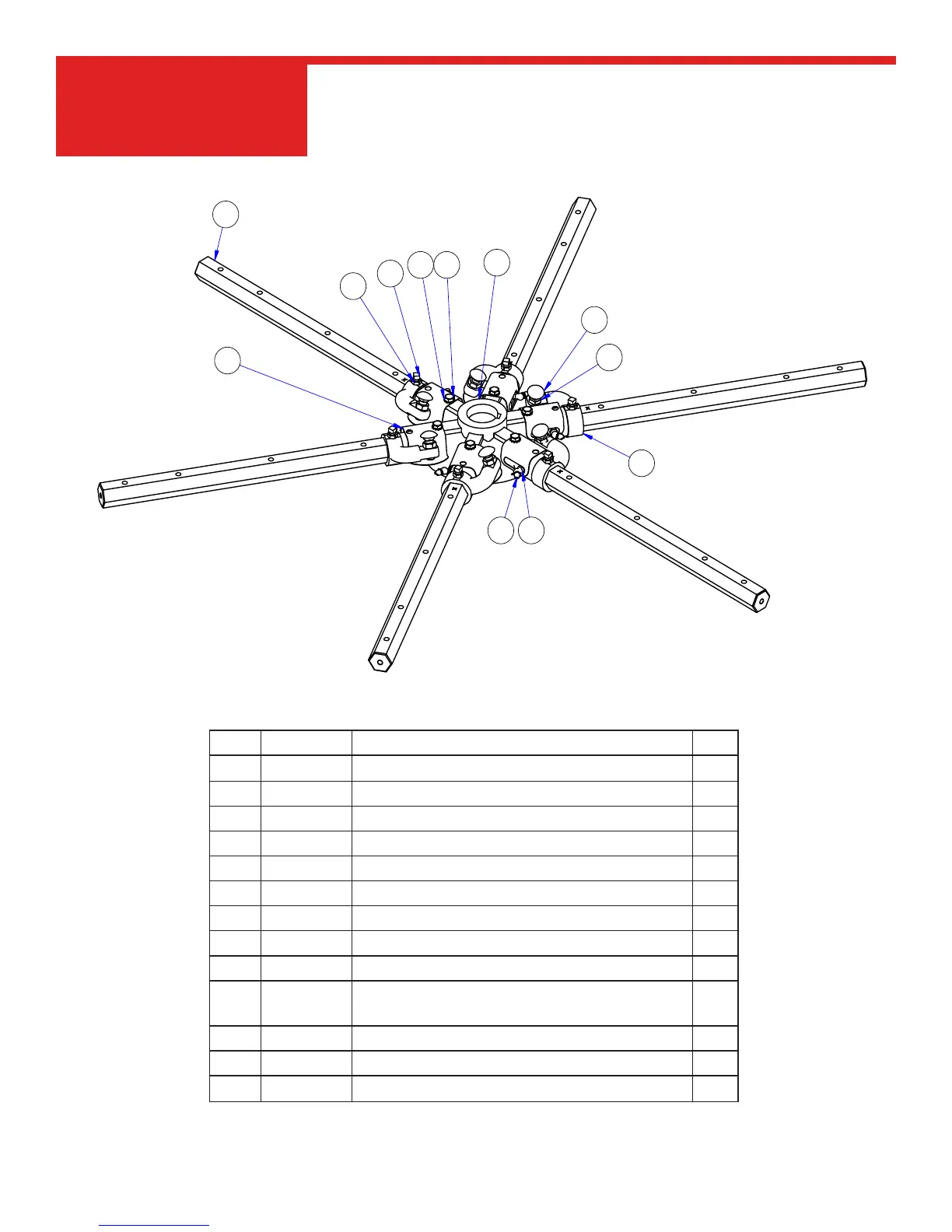

Illustration and Parts List
ITEM PART NO. DESCRIPTION QTY
- 049539
SPIDER ASSY, 1200-5 SHD RH-SOM
1
1 010050 FSTN, NUT HEX JAM 1/2-13 6
2 015682 WASHER, 3/8 EXT TOOTH LOCK 6
3 015683 BOLT, 3/8-16 X 7/8 DOG PT HEX HD CAP 6
4 015684 FSTN, NUT HEX JAM 3/8-16 6
5 015686 FSTN, SQHSS 3/8-16 X 1 6
6 024755 FITTING, 1/8-27 NPT 45° GREASE 6
7 028216 FSTN, CABLT 1/2-13 X 1-1/2 GR8 6
8 033034 LEVER, LIFT SD UNIVERSAL 6
9 049533
ARM,6 BOSS HDX740 SPIDER ASSY
TROWEL
6
10 064198 SPIDER BOSS, 6 BLADE UNIVERSAL 1
11 051043 CLIP, 46-48 UNIV SPIDER SPRING 6
12
015692 CAP, Ø1/4 RED GREASE
6
PARTS LIST
U/MQTYDESCRIPTIONPART NO.ITEM
6
FSTN, NUT HEX JAM 1/2-13
0100501
6WASHER, 3/8 EXT TOOTH
LOCK
0156822
6BOLT, 3/8-16 X 7/8 DOG PT
HEX HD CAP
0156833
6FSTN, NUT HEX JAM 3/8-160156844
6
FSTN, SQHSS 3/8-16 X 1
0156865
6
FITTING, 1/8-27 NPT 45
°
GREASE
0247556
6
FSTN, CABLT 1/2-13 X 1-1/2
GR8
028216
7
6
LEVER, LIFT SD UNIVERSAL
0330348
6ARM,6 BOSS HDX740
SPIDER ASSY TROWEL
0495339
1SPIDER BOSS, (RH SOM)
COUNTER CLOCKWISE
HDX740
06419810
6
CLIP, 46-48 UNIV SPIDER
SPRING
051043*
11
6
CAP, Ø1/4 RED GREASE
01569212
