Exhaust Requirements
58
©
Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458301ENR7
Figure 19
1
Outlet duct diameter = largest duct diameter based on number of units
2
45° typical

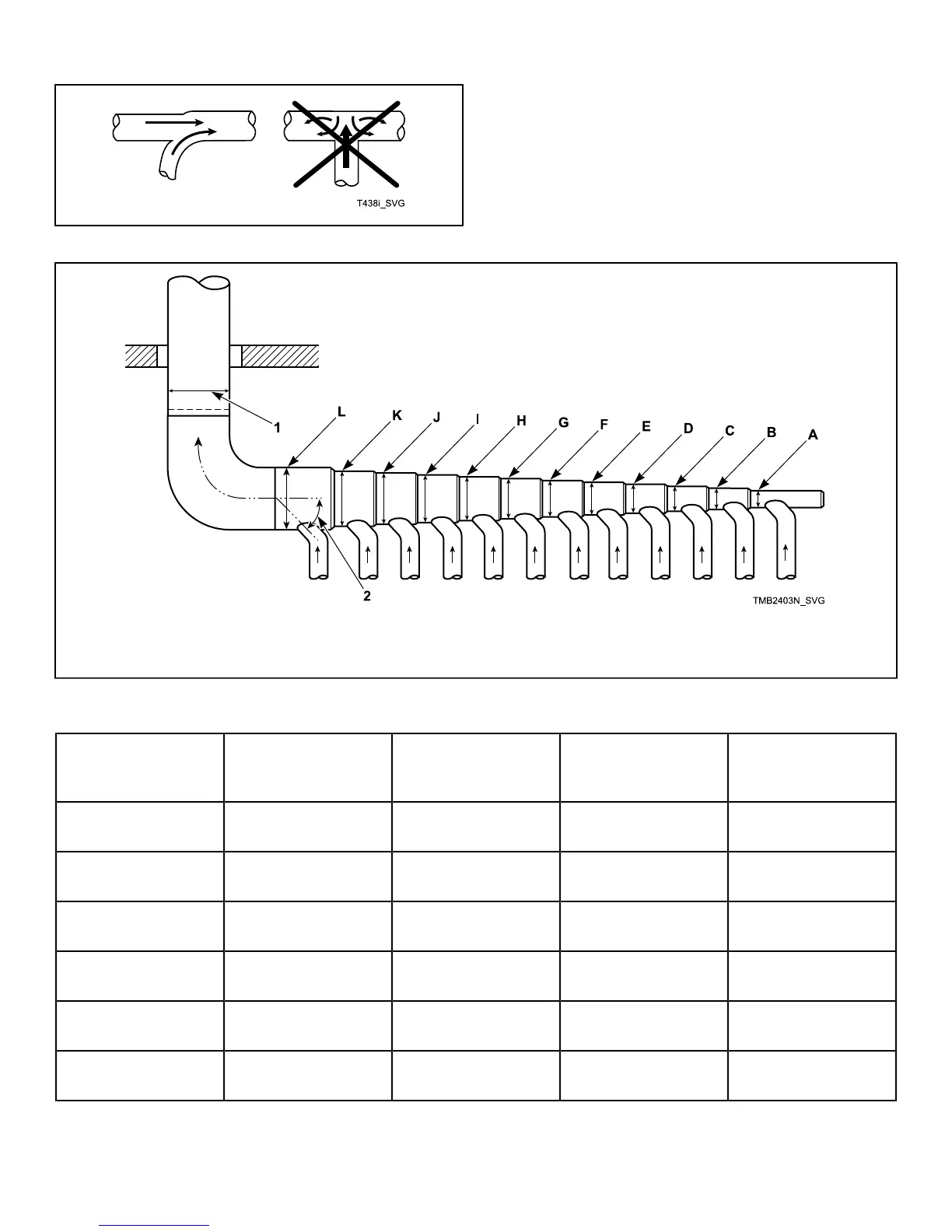

Figure 20 One Manifold Assembly
Duct Station Eco Line 025
Classic Line 025
and all 030 Series
035, 055 and
T30 Series T45 Series
A 4 in. (102 mm) 6 in. (152 mm) 8 in. (203 mm) 10 in. (254 mm)
B 6 in. (152 mm) 10 in. (254 mm) 12 in. (305 mm) 15 in. (381 mm)
C 8 in. (203 mm) 12 in. (305 mm) 15 in. (381 mm) 18 in. (457 mm)
D 10 in. (254 mm) 14 in. (356 mm) 17 in. (432 mm) 21 in. (533 mm)
E 12 in. (305 mm) 16 in. (406 mm) 19 in. (483 mm) 24 in. (610 mm)
F 12 in. (305 mm) 18 in. (457 mm) 21 in. (533 mm) 26 in. (660 mm)
