Installation
Part No. 70458301ENR7
©
Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 45
1

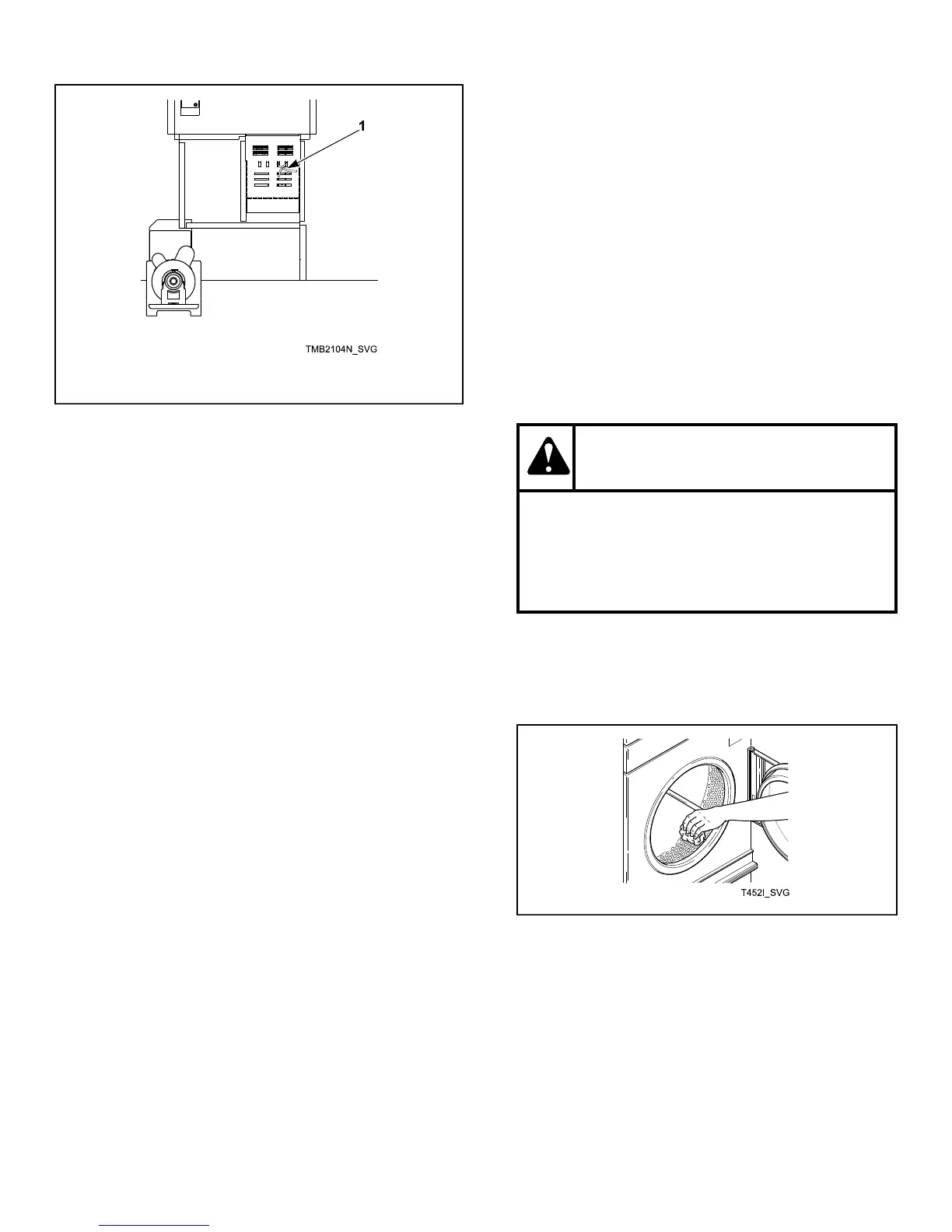

Wire Tie
Figure 12
4. Turn on electrical supply to tumble dryer.
5. Open the supply valve for gas or steam heated tumble
dryers.
6. After performing the previous checks, start the tumble dryer
by pressing START. (Refer to the Operating section for
detailed instructions.) Release the start button and open the
loading door. The cylinder should stop rotating within seven
seconds after the door is opened a maximum of 2 inches
(51 mm) . If it does not, adjust the loading door switch.
Refer to Adjustments section.
7. Gas Tumble Dryers: Start the tumble dryer and check the
burner flame. Adjust the air inlet shutter as required. Refer
to Adjustments section.
IMPORTANT: The electronic ignition system will
attempt to light the gas by sparking for the “trial
for ignition” period. If gas does not ignite within
this period, the ignition control will go into a safety
lockout and the valve will no longer open until
the control is reset. It may be necessary to retry
several times to bleed air from the gas lines. To
reset, open and close the loading door and restart
tumble dryer.
IMPORTANT: If lockout condition persists,
check that the manual gas shut-off valve is
in the ON position and that the gas service is
properly connected. If condition still persists,
remove tumble dryer from service.
8. Load the cylinder with a full load of clean rags and run to
remove oil or dirt from cylinder.
9. Check the airflow switch operation by opening the lint
panel; be sure to remove shipping tape from airflow switch
prior to operation. Temporarily tape down the lint panel
safety switch located behind the upper left corner of the lint
panel. The heating systems should shut off when the lint
panel is opened a maximum of 1.5 inches ( 38 mm) .
The airflow switch operation may be affected by shipping
tape still in place, lack of make-up air, or an obstruction in the
exhaust duct. These should be checked. If there is a problem,
contact an authorized service person.
WARNING
Do not operate tumble dryer if airflow switch is
faulty. An explosive gas mixture could collect in
tumble dryer if airflow switch does not operate
properly.
W407R1
10. Wipe out the cylinder using an all-purpose cleaner or
detergent and water solution. Refer to Figure 13 .
IMPORTANT: The use of chlorine bleach for
removing any discoloration should be avoided
because bleach could damage the finish.
Figure 13
