Exhaust Requirements
60
©
Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458301ENR7
1
Outlet duct diameter = combined largest duct diameter of both sides
2
45° typical

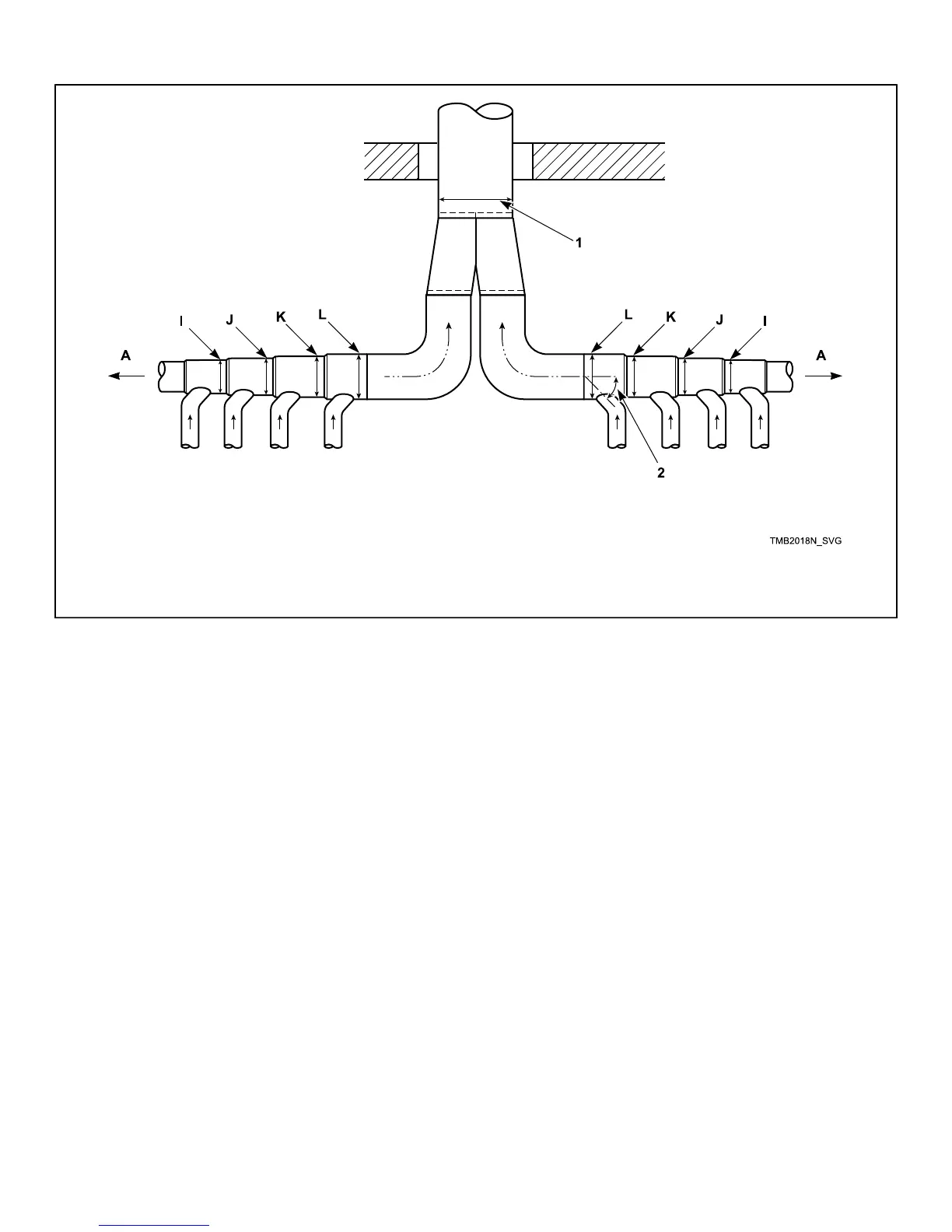

Figure 21 Two Manifold Assemblies
Refer to Table 4 for measurements for each manifold.
