Steam Requirements
98
©
Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458301ENR7
NOTE: Refer to Table 27 for sizing of steam lines. Piping must also be sized accordingly for length of runs and
number of elbows.

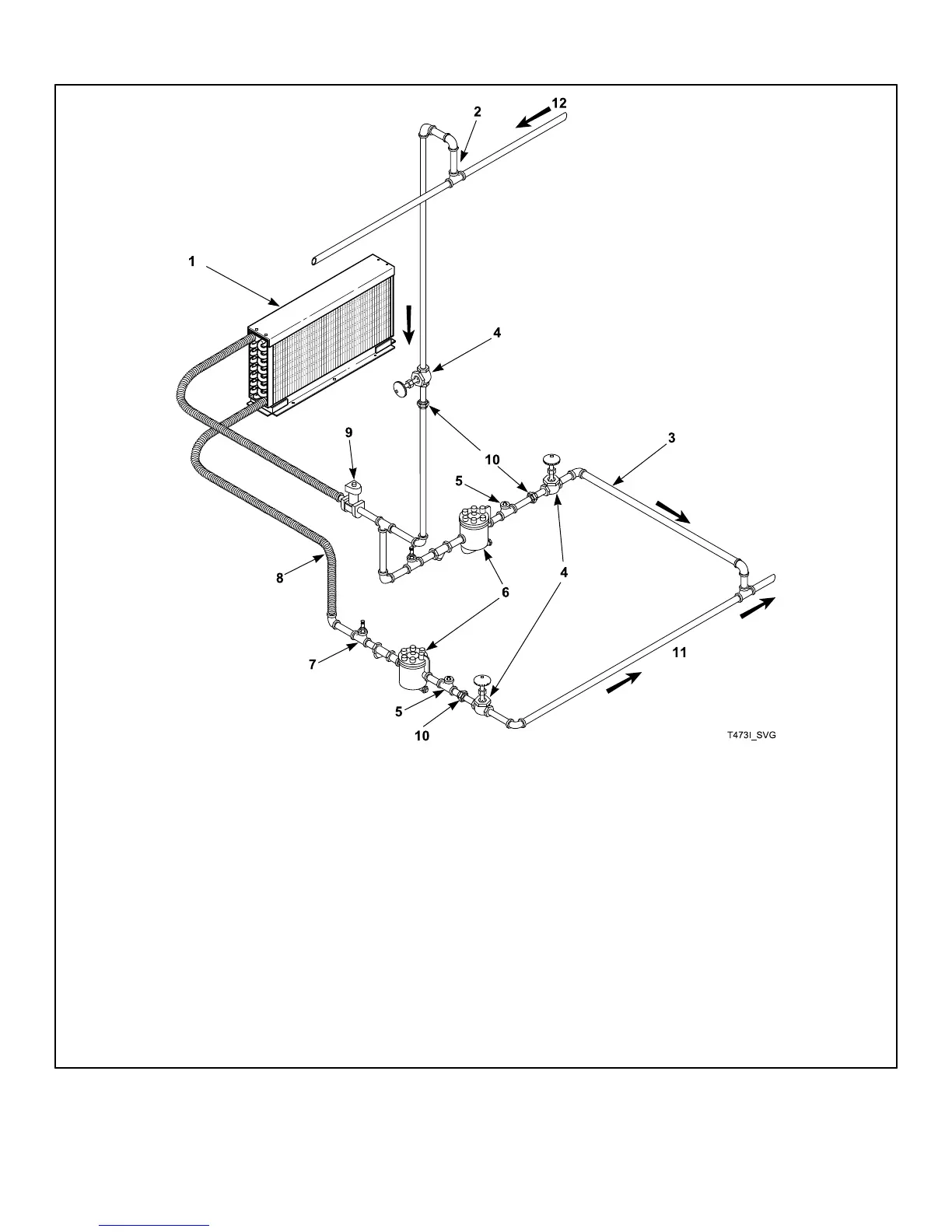

1
Steam Coil
2
12 in. (305 mm) Riser
3
Condensate Return Line from Supply Line
4
Shut-Off Valve
5
Check Valve
6
Trap with Built-In Strainer
7
Vacuum Breaker (Optional)
8
18 in. (457 mm) Drop
9
Solenoid Valve (Supplied with machine)
10
Union
11
Return
12
Supply
Figure 27
