How Your Dryer Works
1. Lint Filter
2. Cylinder
3. Exhaust Fan
4. Gas Valve
5. Air Duct
6. Heater Duct

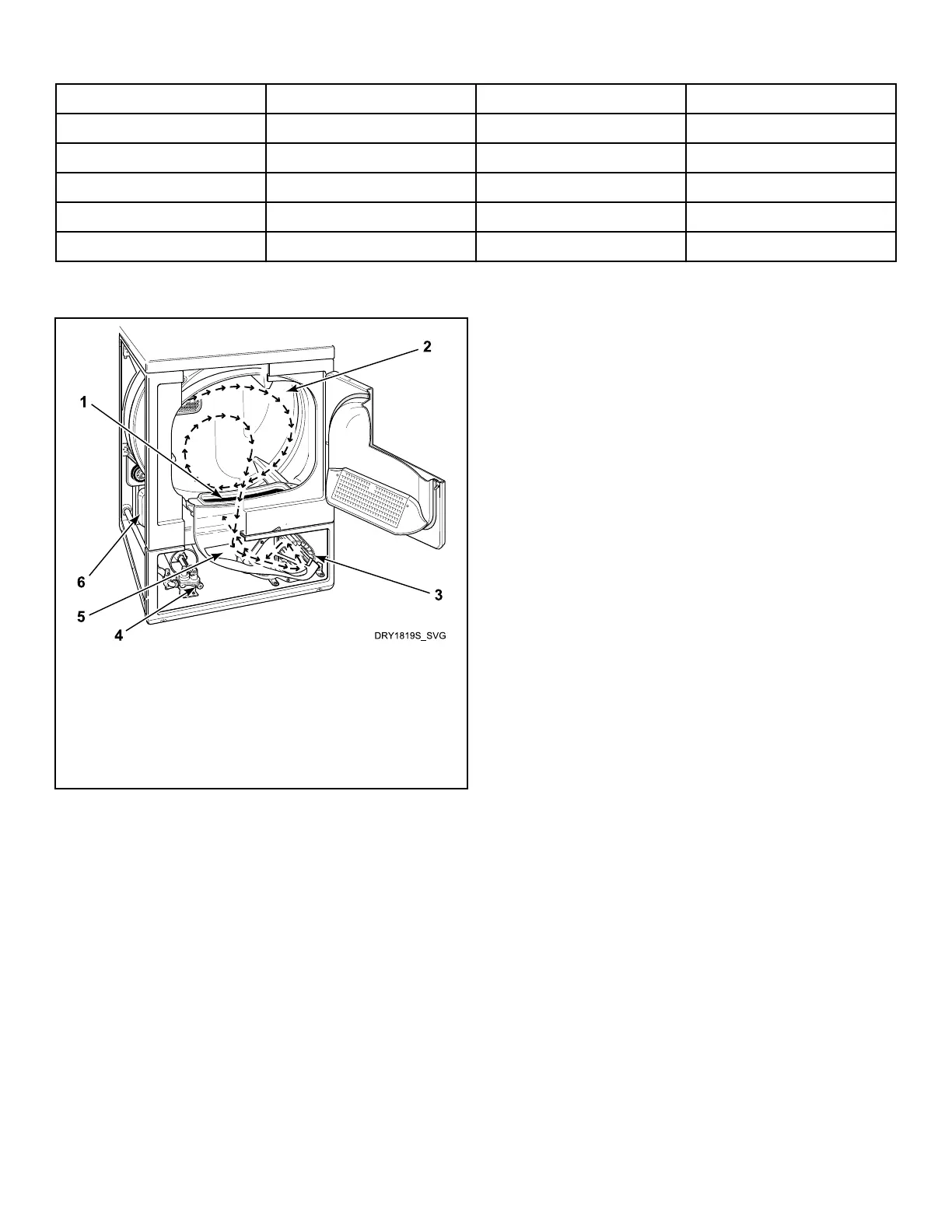

The dryer uses heated air to dry loads of laundry. When the motor
is started, the exhaust fan pulls room temperature air in through
louvers at the rear of the dryer and over the heat source (burner
flame for gas and heating element for electric). The heated air
moves through the heater duct and into the cylinder, where it cir-
culates through the wet load. The air then passes through the lint
filter, air duct, and exhaust fan, where it is vented to the outdoors.
