ALLIANCE STEBXASP434AW12 User Manual

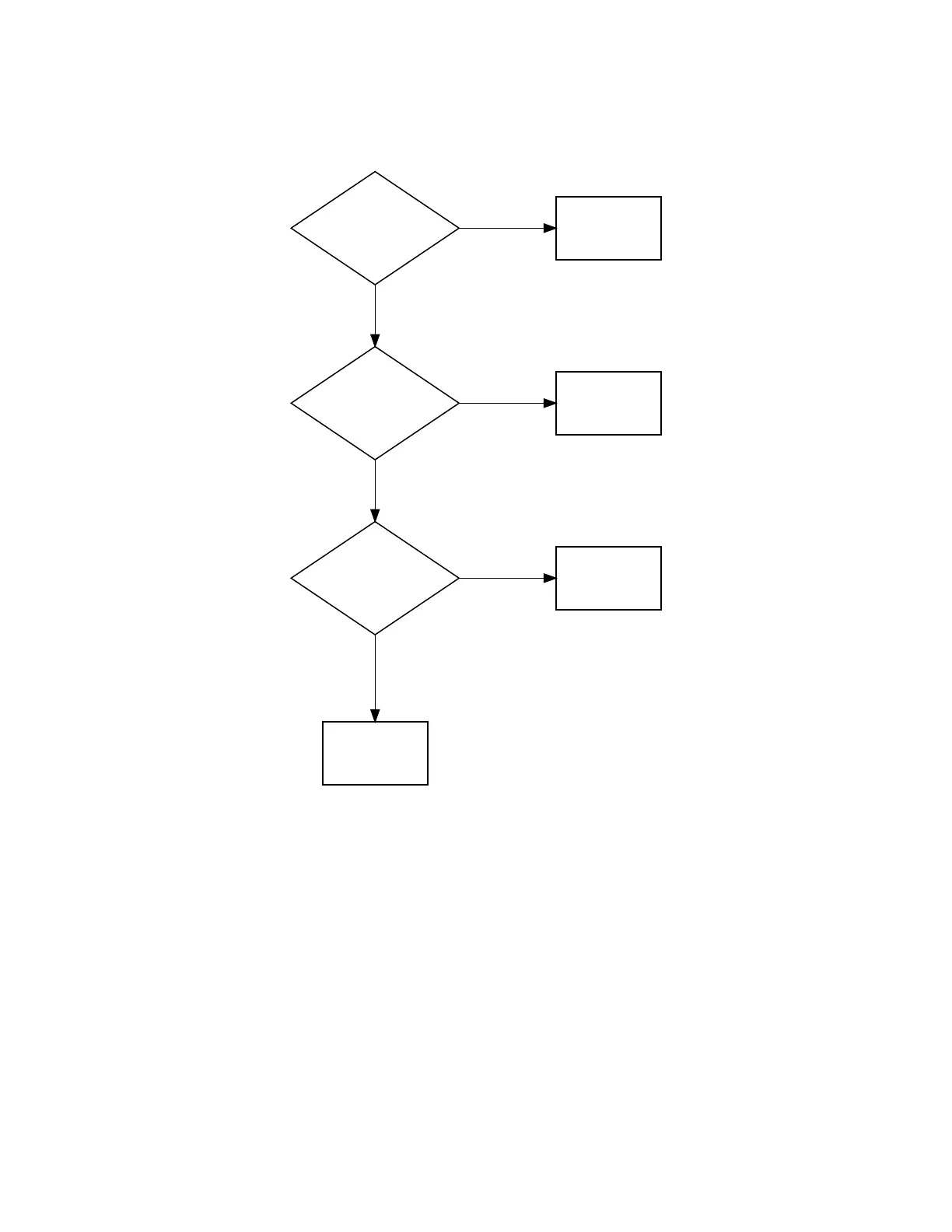

Door Open
NOTE: Conduct all tests with the door closed.
(1)
Is there voltage
across terminals H3-5
and H3-3?
(2)
Is there voltage on
the N.O. terminal of
the door switch to a
neutral wire?
No
Replace I/O control.
Yes
(3)
Is there voltage on
the COM terminal of
the door switch to a
neutral wire?
No
Correct wiring
between door switch
and control. Also
check neutral supply
to control.
Yes
Correct wiring to
door switch.
No
Check operation of
the door switch.
Replace if necessary.
Yes
Electronic Control Troubleshooting
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
41 Part No. D515519R3
