ALLIANCE T30 Series User Manual

70291301 45
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Electronic Control Troubleshooting

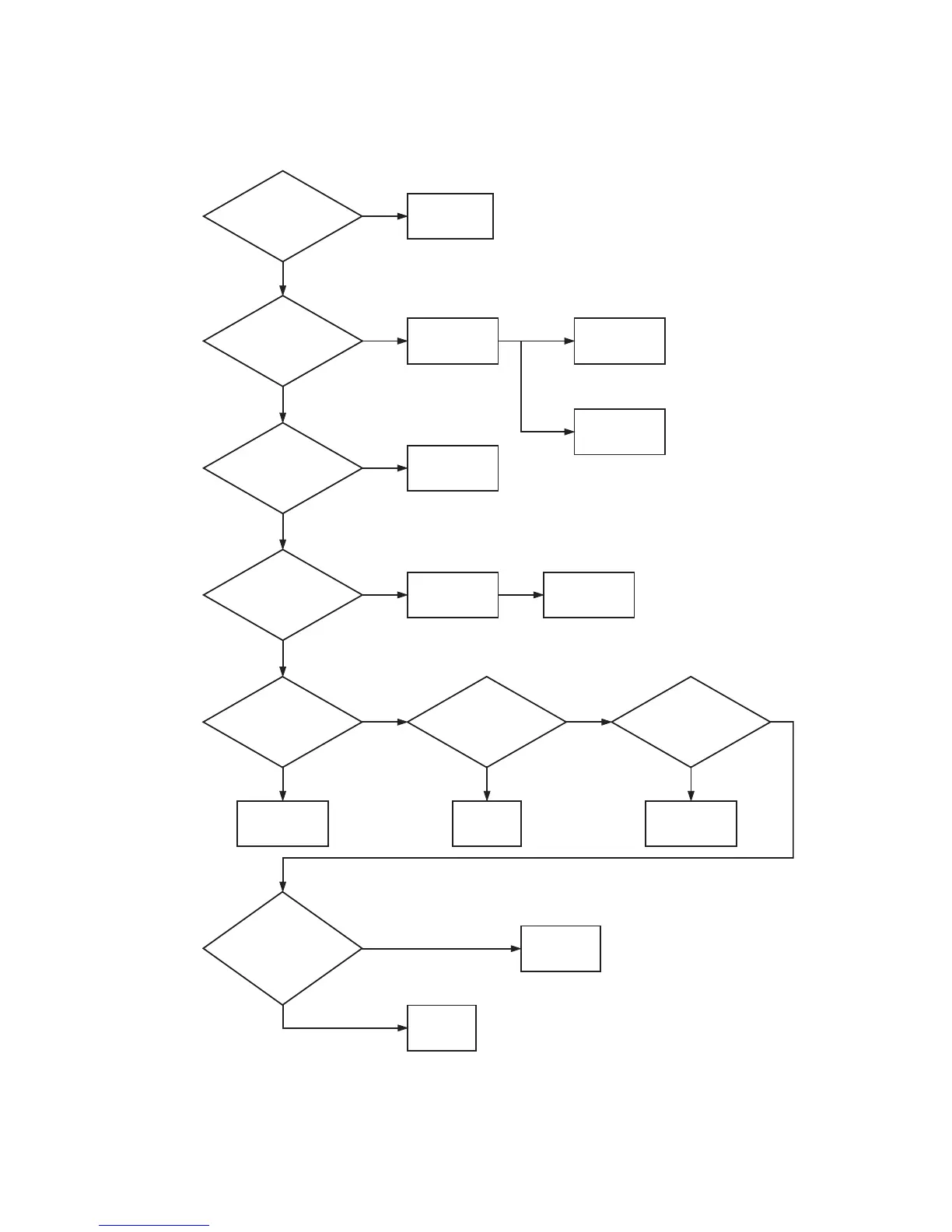

27.Will Not Start – Gas – Manual Timer
T041D
No motor run (start circuit) Manual Tumblers. Single and stacked units
with and without time delay.
Is there power supply
voltage coming to the
tumbler?
Connect power
and run the cycle.
Is there voltage
at the primary side of the
transformer at
terminals 1 and 2?
NO
YES
NO
Change the primary
fuse to the
transformer.
Correct wiring
between power
supply and
transformer.
Still no voltage
YES
Is there voltage
secondary side of the
at the transformer at terminal
2 and 3?
Replace the
transformer.
NO
YES
Is there voltage to the
output side of the
secondary fuse?
Change the
secondary fuse.
NO
NO
Correct the wiring
between the
secondary fuse and
the transformer
.
Is there voltage to the
input side of the door
switch?
YES
NO
Correct the wiring
between the door
switch and the
secondary fuse.
YES
Is there voltage to the
output side of the door
switch?
NO
Replace the
door switch.
YES
Is there voltage to the
input side of the lint
panel switch?
NO
Correct wiring
between lint panel
switch and door
switch.
YES
Is there voltage to the
output side of the lint
panel switch?
NO
Replace lint
panel switch.
YES
Refer to NO
MOTOR RUN
(run circuit).
NOTE: White wires are
transformer "neutral"
For stacked units.
Correct wiring
between upper and
lower pocket.
T041D
