Allied Systems LONG REACH FLN Series - Attachment Installation

45-009 REV. 8/20
18
5. When the truck hydraulic system flow (gpm) exceeds specified maximum, a flow
control valve is recommended to ensure optimal performance.
6. Consult the truck factory and/or Long Reach for guidance.
NOTICE
Equipment damage hazard.
Equipment damage, performance reduction, personal
injury and/or loss of warranty could result if any alter-
ations are made to the original attachment.
Consult with factory before altering original equipment.
4.2 Attachment Installation
There are two kinds of hooks, bolt-on and quick hook. Follow the directions for the hook
on your attachment.
Bolt-On Hooks
Remove the lower bolt-on hooks and, if applicable, make a note of any factory-installed
shims. Shims are used to create space between the hook and carriage.
Bottom
Bar
Bottom Hook
Spacer
Capscrew &
Lockwasher

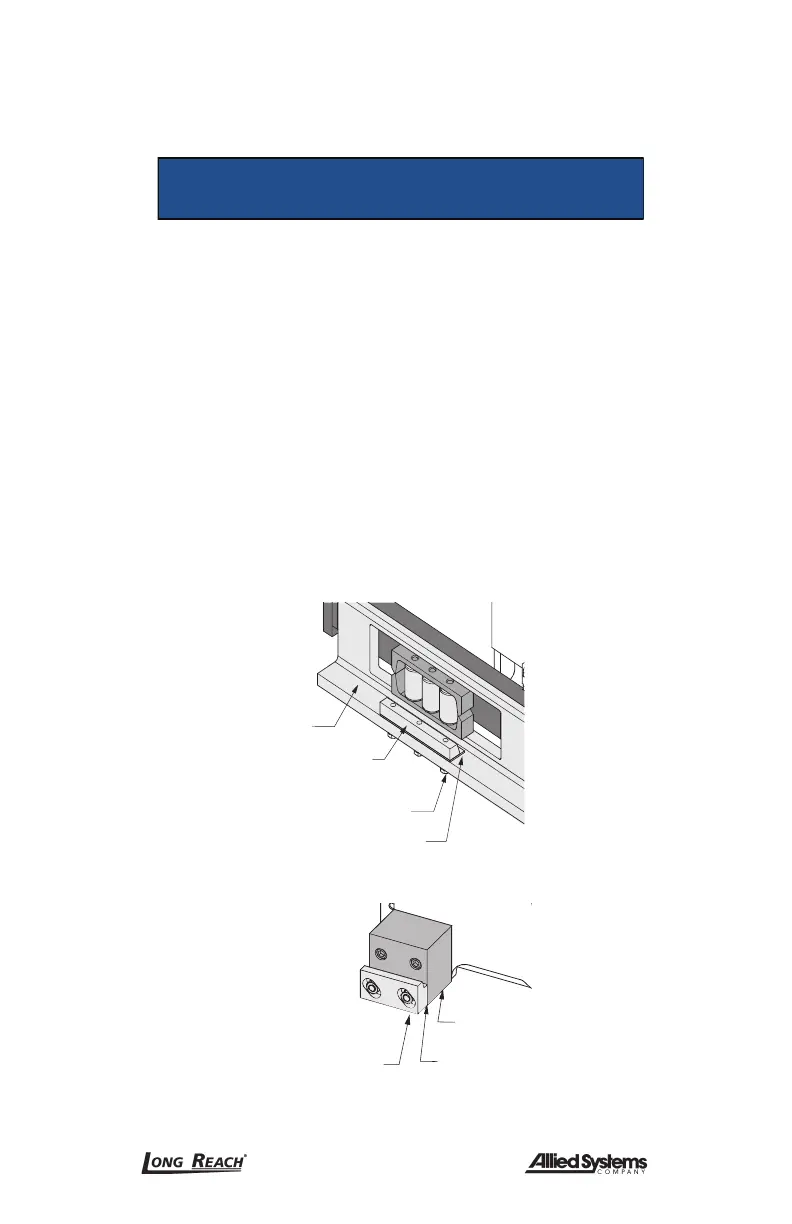

Figure 4-1, Remove the bottom bolt-on hooks
Bottom
Hook
Spacer
Shim
Figure 4-2, Remove the bottom bolt-on hooks,
leave the spacers and shims, if applicable
