The Maintenance Schedule is a program that includes
periodic inspection and lubr
ication.
Use the operating time
on the hour meter of the tractor to fi
nd the maintenance
time f
or the winch.

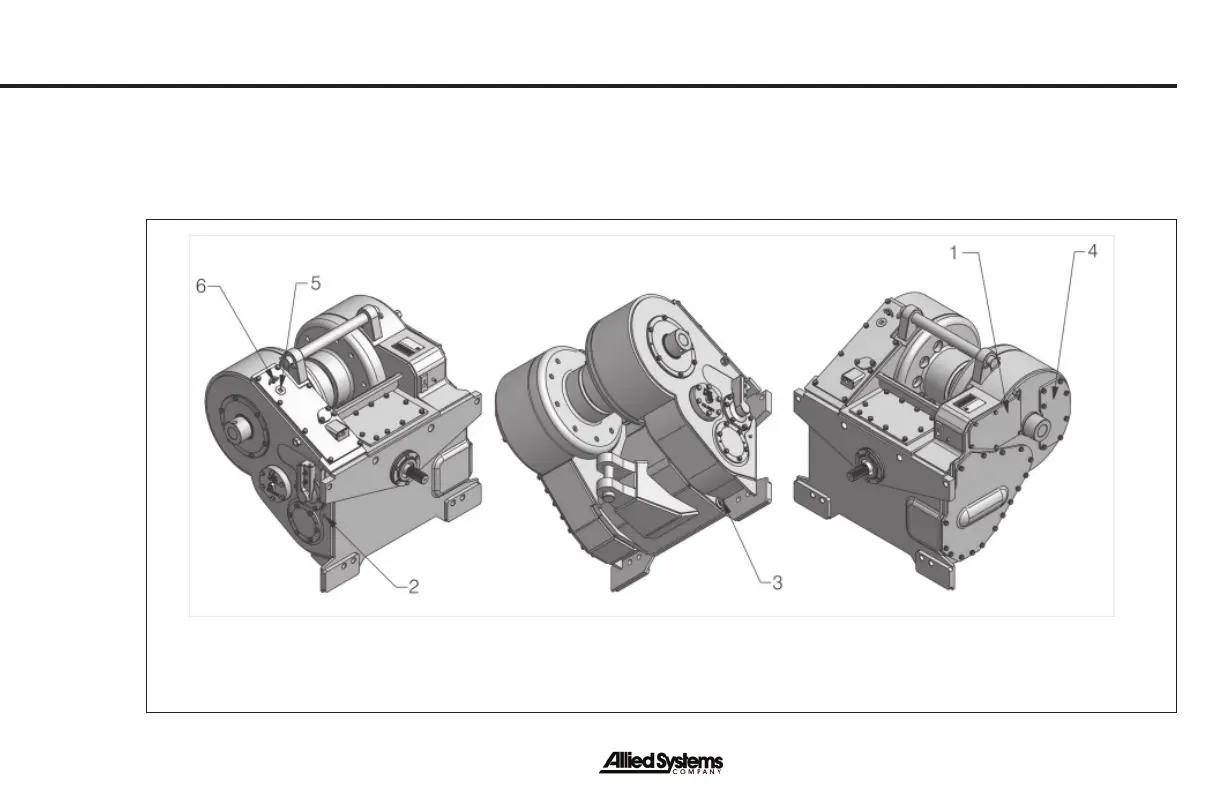

Figure 10 - Maintenance P
oints
1.
Access Cover f
or Control
V
alve
2.
Plug to Check Oil Le
vel
3.
Plug to Drain Oil
4.
Cover f
or Filter
5.
Fill
Plug
6.
Breather
Maintenance
Maintenance
42
44
