Allied Systems W6F User Manual

31

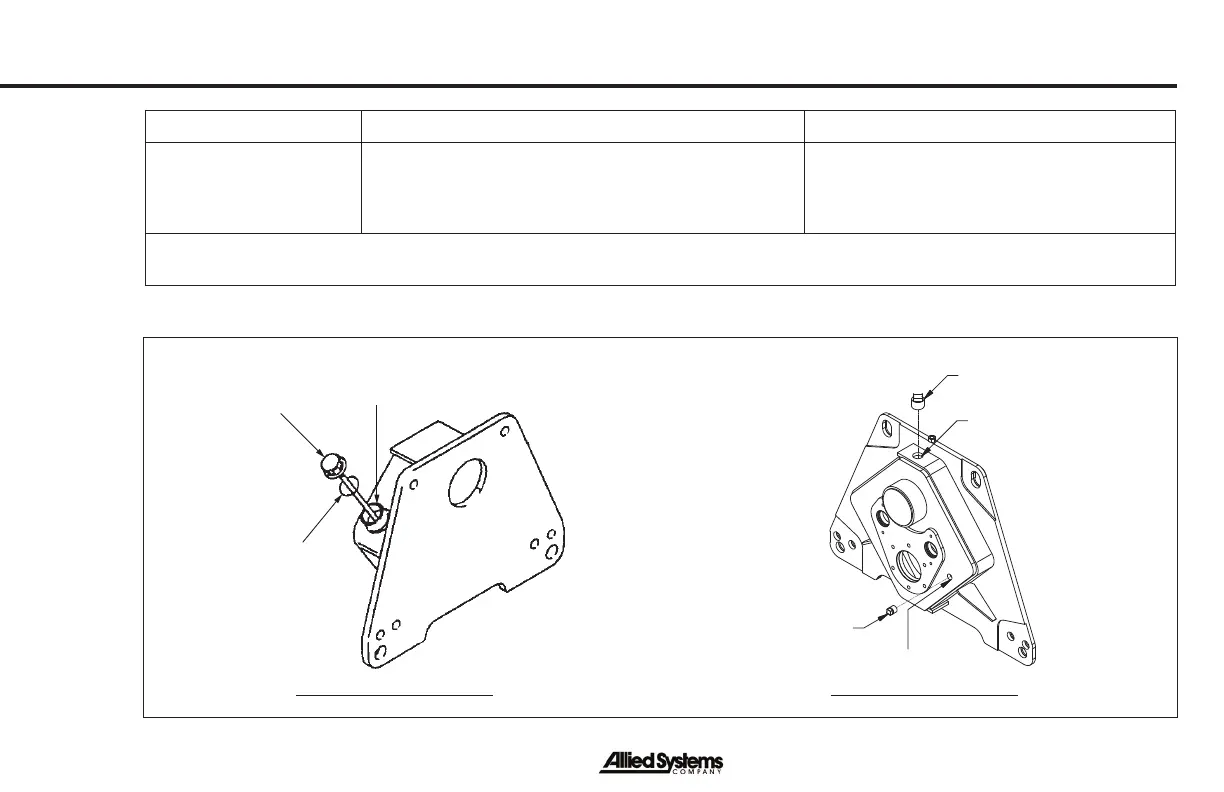

Figure 11 - Maintenance Schedule
INTERVAL PROCEDURE OR QUANTITY SPECIFICATION
1000 hours or every 6
months
Change the hydraulic oil. Drain oil from plug
(item 3). Clean the oil strainer. Through fi ll plug
(item 5), add 17 gallons (62 liters)
†
. Check the
oil level at item 2.
See Figure 4, Recommended Oil List.
* NOTE: Clean the oil strainer screen and change the oil fi lter after the fi rst 250 hours on new and rebuilt winches.
†
Amount of oil may vary slightly with tractor.
DIPSTICK
O-RING
CHECK & ADD OIL
HERE
FITTING
FITTING
CHECK OIL HERE
ADD OIL HERE
HYSTER-BUILT DROPBOX ALLIED-BUILT DROPBOX
Figure 11-1 - Oil Checking/Adding Points
