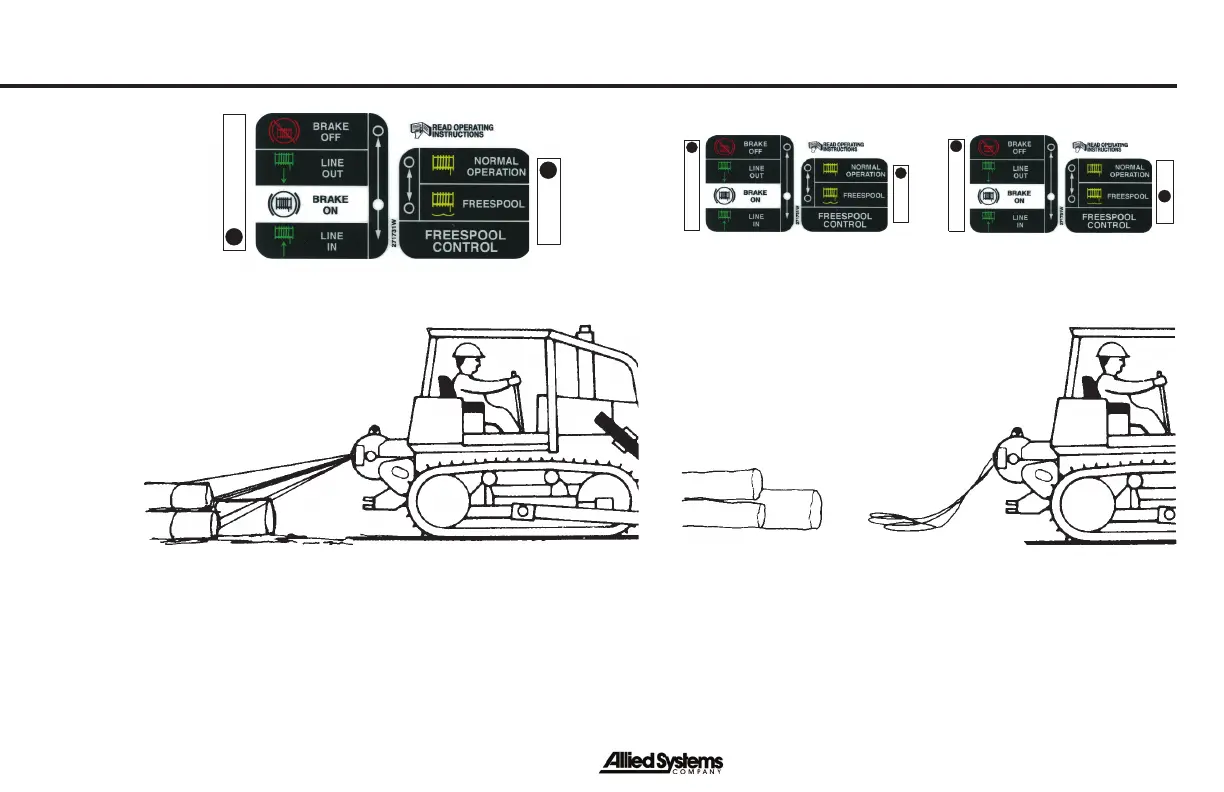

Step 5.
When the v
ehicle is on fi
r
m ground, the oper
ator
can mov
e the control lev
er to
LINE-IN
to pull the load
tow
ard the vehicle.
Step 6.
When the operator w
ants to disconnect from the
load, the vehicle is stopped and the control le
v
ers are
mov
ed to the
BRAKE-OFF
(DETENT) or
FREESPOOL
positions to loosen the wire rope.
The wire rope is then
disconnected from the load.
Operating T
echniques
OR
50
52
Table of Contents
Foreword
3
Table of Contents
5
Safety Summary
7
General
15
Introduction
15
How the Winch Operates
15
W6F Winch Description
16
Nameplate
18
Wire Rope Selection
19
Recommended Oil List & Oil Capacity
20
Optional Equipment
21
Unit Identifi Cation
22
Tractor Identifi Cation & Gear Ratio Codes
23
Operation
27
Checks before Operation
27
Checks During Operation
27
Operating Procedures
28
Power Operation
30
FREESPOOL Operation
32
FREESPOOL Adjustment
32
Troubleshooting Analysis Chart
34
Maintenance
43
Maintenance Points
43
Maintenance Schedule
44
Control Cable Adjustment
46
Operating Techniques
49
Tractor or Skidder Operation
49
How to Move a Disabled Vehicle
52
Working on a Steep Slope
54
Tractor Is down the Slope
54
Other Equipment Is down the Slope
55
Operational Differences, Optional Equipment
57
Integral Arch
57
Fairlead
57
Optional Gear Ratios
57
Freespool
58
Extended Heavy Duty Drawbar
58
