Allied Construction Products, LLC Technical Manual Ho-Pac 300, 300B & 500, 500B
16

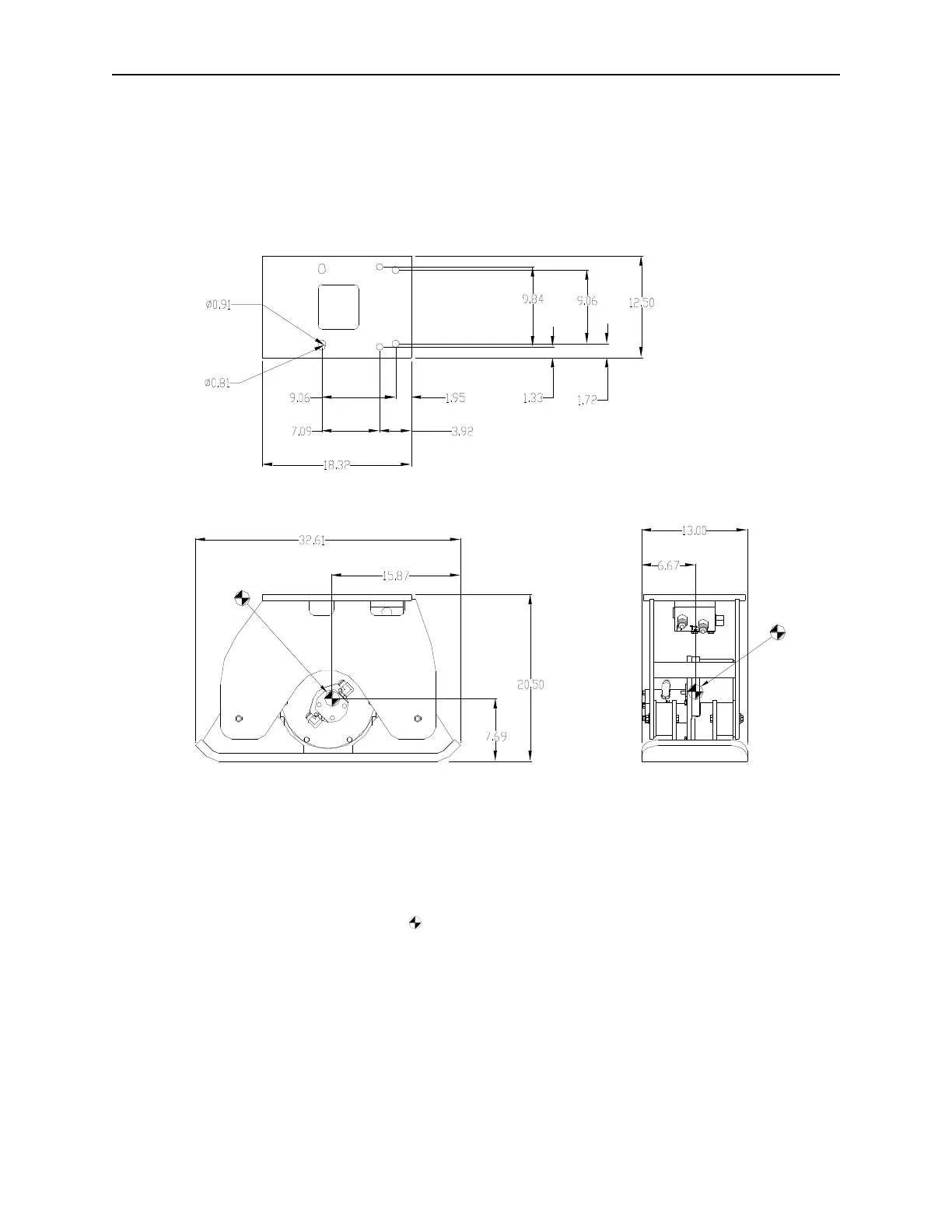

5.2 DIMENSION DIAGRAMS (cont’d)
Fig. 5-8
Model 500B shown with Flat Top Mounting Frame
(Mounting holes accept IN1 & IN2 / XR Mounting Brackets)
Center of Gravity
