Allied 300 - Motor Identification; Control Valve Identification

Allied Construction Products, LLC Technical Manual Ho-Pac 300, 300B & 500, 500B
34

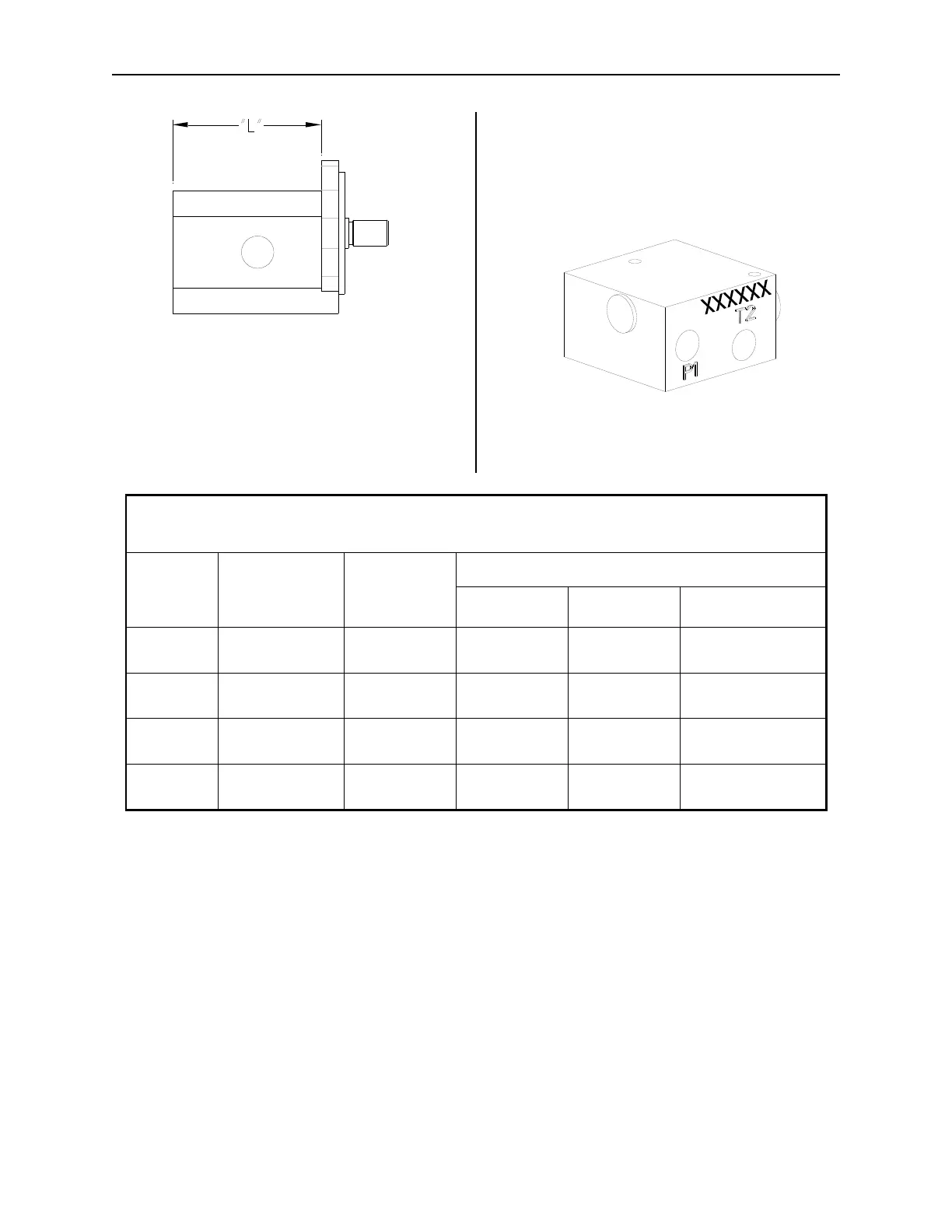

Fig. 12-1
Measure (“L”) to identify the motor’s part
number
12.3.2 Valve Identification
Locate the part number stamped on the
manifold to correctly identify the flow
regulator valve.
Fig. 12-2
Flow Regulator Valve - Part Number Location
XXXXXX
Table 12.1
Motor & Valve Package (6, 9, 14 or 18 gpm)
Option
“L” - Length
Inch
[mm]
Flow
gpm
[lpm]
Part Number
Motor
[Elbow]
(a)
Valve
Motor & Valve
Package
(b)
1
3-1/8
[80]
6
[23]
572886
[102698]
572887
573050
2
4-1/2
[114]
9
[34]
100469
[679306]
102514
100875
3
4-1/8
[105]
14
[53]
101445
[679306]
102515
100876
4
4-9/16
[116]
18
[68]
101323
[679306]
102516
100877
a)
The size of the elbow varies due to motor’s port size. [Part Number of Elbow].
b)
Package includes the following: 1-Motor, 1-Elbow
(a)
& 1-Flow Regulator Valve
