Allied Construction Products, LLC Technical Manual Ho-Pac 300, 300B & 500, 500B
equipped with quick mounting couplers. A
standardized bolt hole pattern allows
interchangeability with other Allied
attachments, including hydraulic hammers.
Typically, these mounting brackets are
designed to utilize the carrier’s pins during
installation.
6.1.2 Excavator Side Frame Mounting
– (XSF)
Another top mounting frame option is the
Excavator Side Frame “XSF”. The XSF
configuration is easily adapted to fit most
small excavators with the use of a XSF
mounting kit. Each kit includes the
necessary adapters to attach the Ho-Pac to
the desired carrier. Install as shown in
Figure 6-3. (NOTE: The XSF frame has
limited fit-up with carriers equipped with
quick mounting couplers).

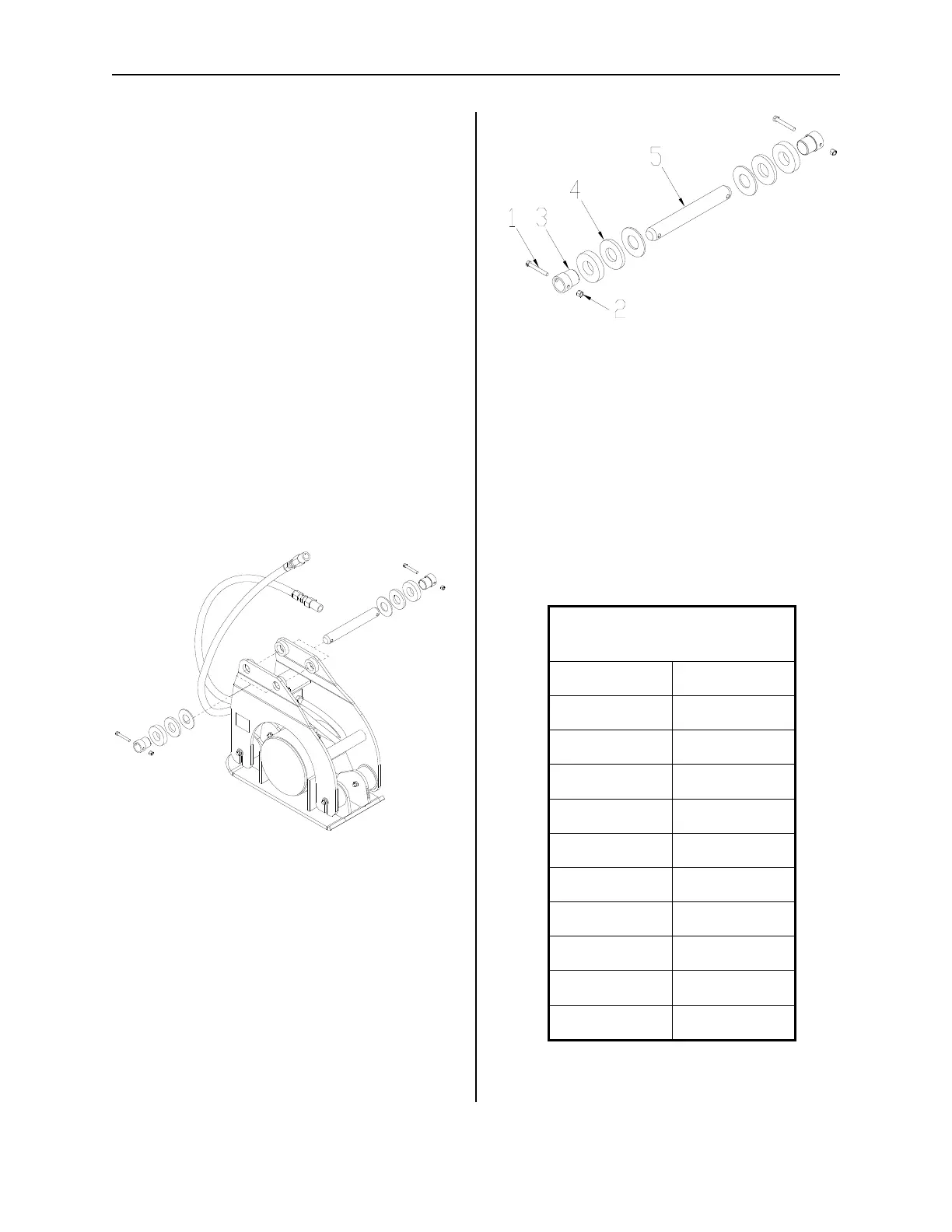

Fig. 6-3
Ho-Pac shown with “XSF” Top Mounting
Frame
1. Insert bushings into pin bores of top
mounting frame.
2. Spacers are supplied in various
thicknesses. Combine as required to
limit side-to-side movement.
3. Secure pins with nut and bolt.
Fig. 6-4
Mounting Kit for “XSF” Top Frame – Typical
Components Include:
1- Bolt, 2- Nut, 3- Flange Bushing, 4-Spacer,
5-mounting Pin
6.1.3 Mounting Kits for Excavator
Side Frame Mounting – (XSF)
Mounting kits are determined by the
carrier’s pin diameter. Spacers are supplied
in various thicknesses to meet width
requirements.
Table 6.2
XSF Mounting Kits
