SAFETY INFORMATION (cont’d)

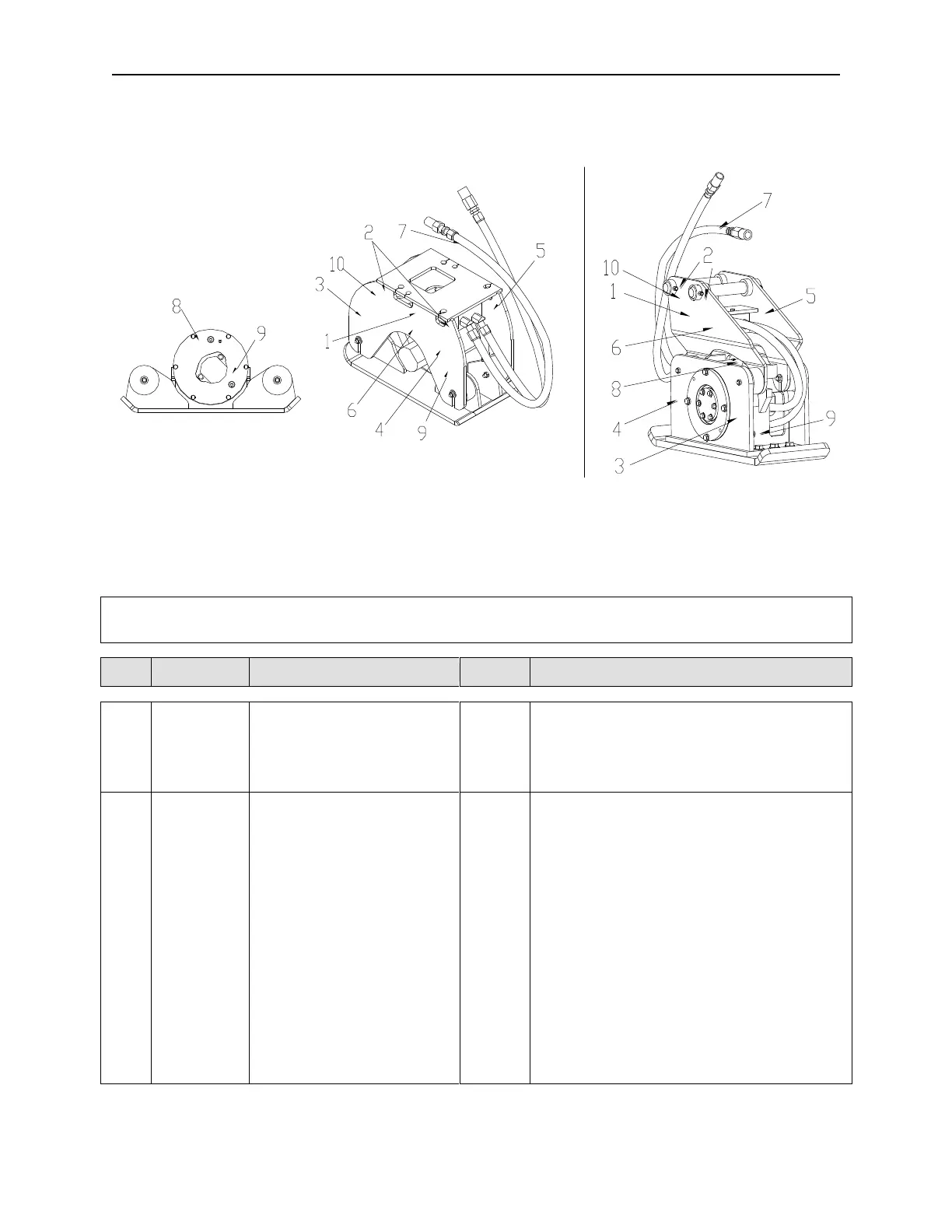

Figure on left is the label locations for 300,
300B & 500B
(IN1 & IN2 / XR Flat Top Mounting Frame
Shown. Same for XSF Mounting Frame)
Figure on right is the label locations for 500
(BSF Mounting Frame Shown. Same for XSF,
XR, XCS / BCS Mounting Frames)
Label Information
Item
Part No.
Description
Qty
Notes
---
573049
Decal Set for 300
1(Set)
Set Includes 1-10
---
573222
Decal Set for 300B
1(Set)
Set Includes 1-7
---
100940
Decal Set for 500
1(Set)
Set Includes 1-10
---
573219
Decal Set for 500B
1(Set)
Set Includes 1-7
1
573051
Model 300
2
Located on both sides
573216
Model 300B
Located on both sides
102730
Model 500B
Located on both sides
573217
Model 500B
Located on both sides
2
676982
Lift Point
4
Located on both sides
3
676981
Stay Clear
2
Located on both sides
4
676984
Read Instructions
2
Located on both sides
5
676983
Hot Surface
1
Located near valve
6
676651
Allied Logo
2
Located on both sides
7
818676
Pressure I.D. Tag
1
Located on Pressure Hose
8
102728
Oil Fill
1
Used on Model 300
9
A102729
Oil Level
1
Used on Model 300
10
676980
ID Plate
1
Not included in set – order separately
