508228-01Issue 2136Page 2 of 41
Technical Specications - 4AC16L
MODEL NUMBER GUIDE
PHYSICAL AND ELECTRICAL DATA
Model Voltage/Hz/Phase
Voltage
Range
Min.
Circuit
Amp.
Max. Over
Current
Device
(amps)
Compressor Fan Motor
Rated
Load
(amps)
Locked
Rotor
(amps)
Rated
Load
(amps)
Rated HP
Nom.
RPM
4AC16L18P-50 208-230/60/1 197-253 11.9 20 9.0 48 0.7 1/10 1075
4AC16L24P-50 208-230/60/1 197-253 14.6 25 10.9 59 1.0 1/6 825
4AC16L30P-50 208-230/60/1 197-253 17.0 25 12.8 68 1.0 1/6 825
4AC16L36P-50 208-230/60/1 197-253 18.0 30 13.6 79 1.0 1/6 825
4AC16L41P-50 208-230/60/1 197-253 19.3 30 14.7 75 1.0 1/6 825
4AC16L42P-50 208-230/60/1 197-253 23.4 40 17.9 112 1.0 1/6 825
4AC16L47P-50 208-230/60/1 197-253 21.9 35 16.1 106 1.8 1/3 825
4AC16L48P-50 208-230/60/1 197-253 24.2 40 18.0 117 1.7 1/4 825
4AC16L59P-50 208-230/60/1 197-253 28.2 45 20.8 127 2.8 1/3 V Spd
4AC16L60P-50 208-230/60/1 197-253 29.6 50 22.2 128 1.8 1/3 825

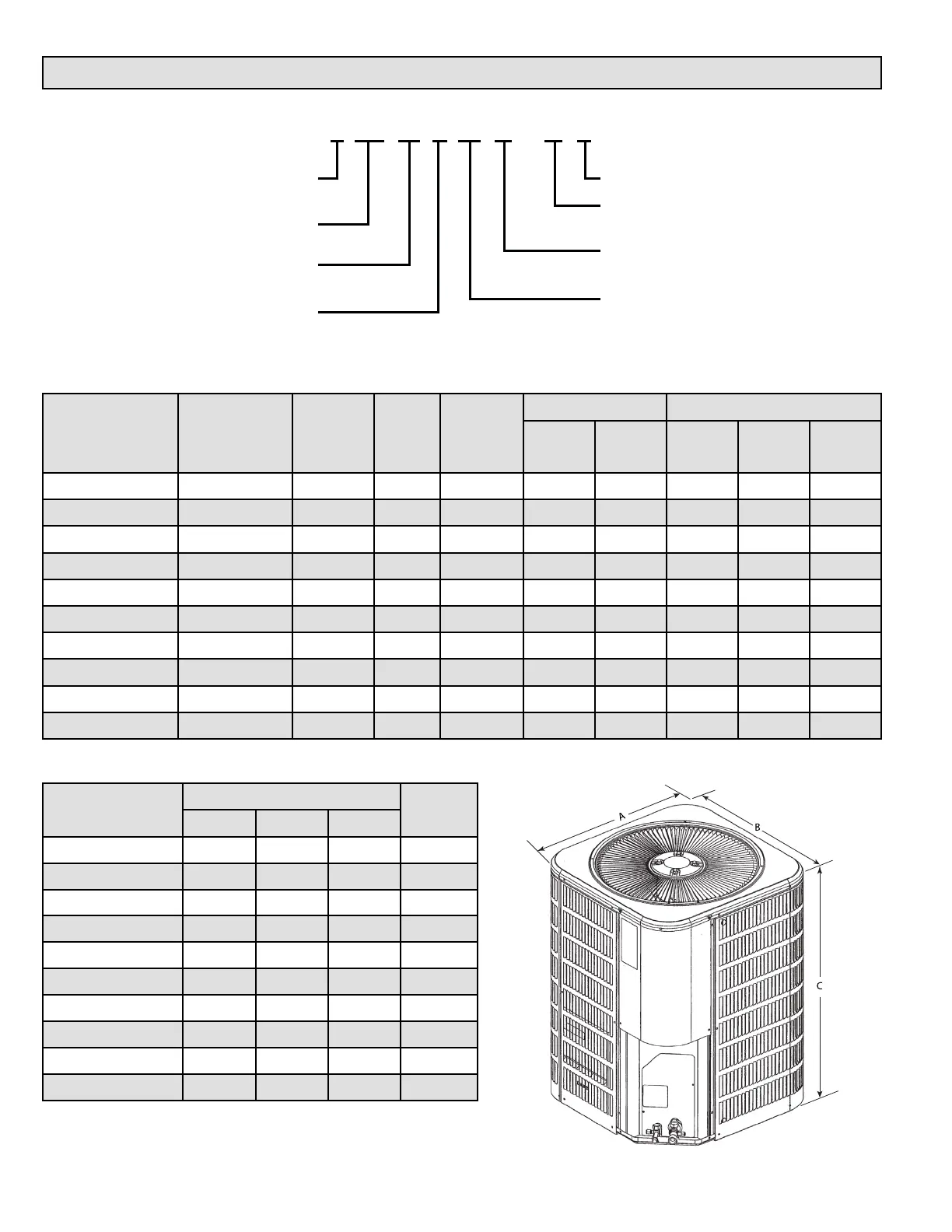

UNIT DIMENSIONS (IN.)
Model No.
Dimensions
Shipping
Weight
(lbs.)
A - width B - depth C - Height
4AC16L18P-50 24.25 24.25 29.00 134
4AC16L24P-50 28.25 28.25 29.00 154
4AC16L30P-50 28.25 28.25 37.00 169
4AC16L36P-50 28.25 28.25 29.00 181
4AC16L41P-50 28.25 28.25 37.00 192
4AC16L42P-50 28.25 28.25 37.00 211
4AC16L47P-50 32.25 32.25 33.00 231
4AC16L48P-50 28.25 28.25 37.00 218
4AC16L59P-50 32.25 32.25 43.00 253
4AC16L60P-50 32.25 32.25 43.00 226
Note:
Weights listed are unit weights with packaging
Dimensions listed are unit sizes w/o packaging
Minor Revision Code
Major Revision Code
50 = Omniguard
®
Electrical
P - 208 - 230v/60hz/1Ph
Tonnage
18, 24, 30, 36, 41, 42, 47, 48, 59, 60
Refrigerant
4 = R410A
AC
Air Conditioner
SEER
16
Tier
L = Louvered
4 AC 16 L 24 P - 50 A
