Allied 4AC16L - Technical Specifications - 4 AC14 B

508228-01 Issue 2136 Page 5 of 41

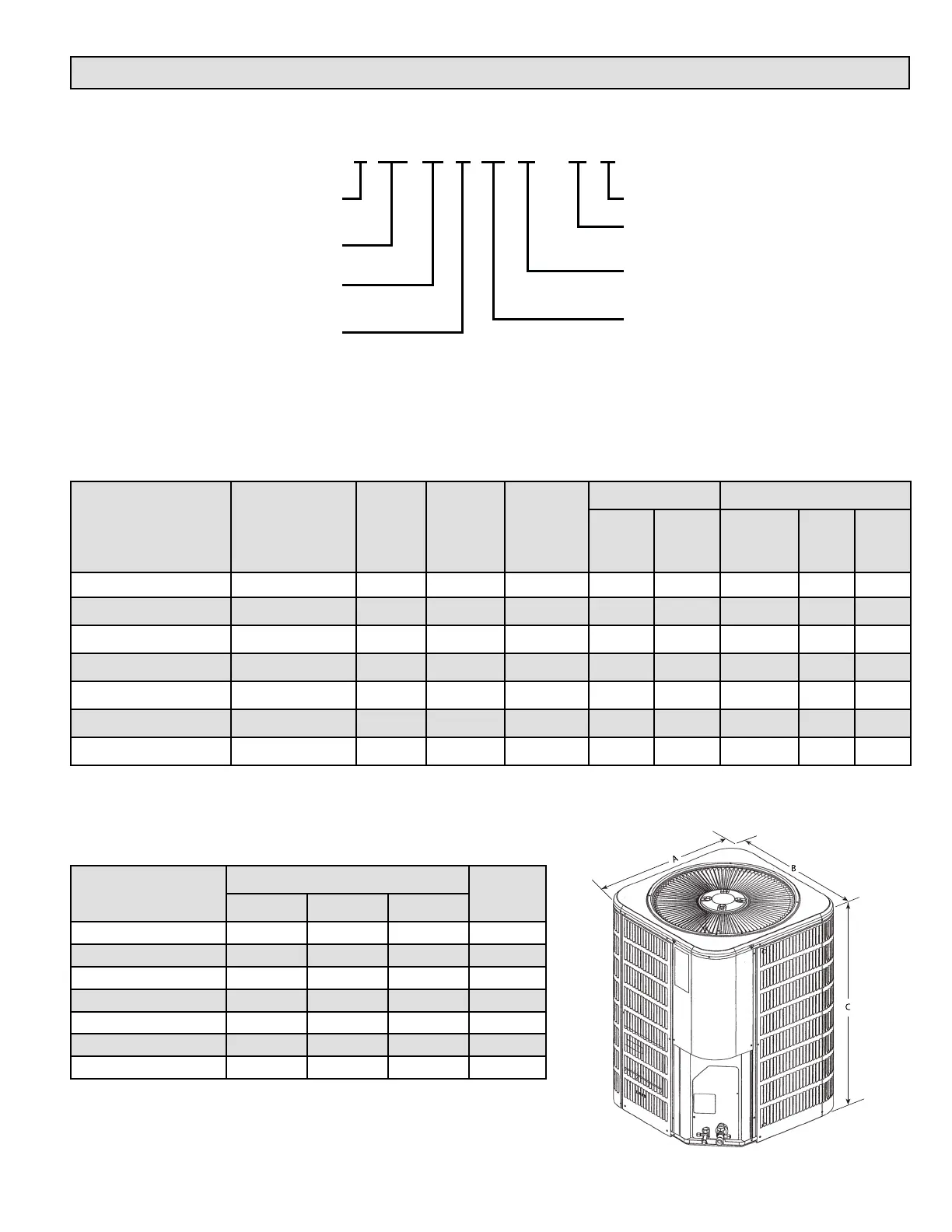

MODEL NUMBER GUIDE
PHYSICAL AND ELECTRICAL DATA
Model
Voltage/Hz/
Phase
Voltage
Range
Min.
Circuit
Amp.
Max. Over
Current
Device
(amps)
Compressor Outdoor Fan Motor
Rated
Load
(amps)
Locked
Rotor
(amps)
Rated
Load
(amps)
Rated
HP
Nom.
RPM
4AC14B18P-50 208-230/60/1 197-253 11.9 20 9.0 48 0.7 1/10 1075
4AC14B24P-50 208-230/60/1 197-253 14.6 25 10.9 59 1.0 1/6 825
4AC14B30P-50 208-230/60/1 197-253 17.0 25 12.8 68 1.0 1/6 825
4AC14B36P-50 208-230/60/1 197-253 18.0 30 13.6 79 1.0 1/6 825
4AC14B42P-50 208-230/60/1 197-253 23.4 40 17.9 112 1.0 1/6 825
4AC14B48P-50 208-230/60/1 197-253 24.2 40 18.0 117 1.7 1/4 825
4AC14B60P-50 208-230/60/1 197-253 29.6 50 22.2 128 1.8 1/3 825
UNIT DIMENSIONS (IN.)
Model
Dimensions (inch)
Shipping
Weight
(lbs.)
A - Width B - Depth C - Height
4AC14B18P-50 24.25 24.25 29.00 155
4AC14B24P-50 28.25 28.25 29.00 171
4AC14B30P-50 28.25 28.25 37.00 187
4AC14B36P-50 28.25 28.25 29.00 205
4AC14B42P-50 28.25 28.25 37.00 234
4AC14B48P-50 28.25 28.25 37.00 255
4AC14B60P-50 32.25 32.25 43.00 284
Note:
Dimensions listed are unit sizes w/o packaging
Weights listed are units weights with packaging.
Technical Specications - 4AC14B
Minor Revision Code
Major Revision Code
50 = Omniguard
®
Electrical
P - 208 - 230v/60hz/1Ph
Tonnage
18, 24, 30, 36, 42, 48, 60
Refrigerant
4 = R410A
AC
Air Conditioner
SEER
14
Tier
B = Wire Guard
4 AC 14 B 24 P - 50 A
