508228-01 Issue 2136 Page 9 of 41
ACCESSORIES
Description Where Used Kit Number
Crankcase Heater All models 93M04
Hard Start
18 10J42
24, 30, 36, 41, 42, 47, 48, 59, 60 88M91
Compressor Low Ambient All models 34M72
Short Cycle Protector All models 47J27
Freezestat
3/8 tubing 93G35
5/8 tubing 50A93
Time Delay Relay All models 58M81
Loss of Charge Kit All models 84M23 (factory installed)
Sound Blanket
18, 24, 30, 36, 41 14W00 (factory installed)
42, 47, 48, 59, 60 14W01 (factory installed)
TXV Kit
18, 24, 30, 36 A4TXV01
42, 48, 60 A4TXV02

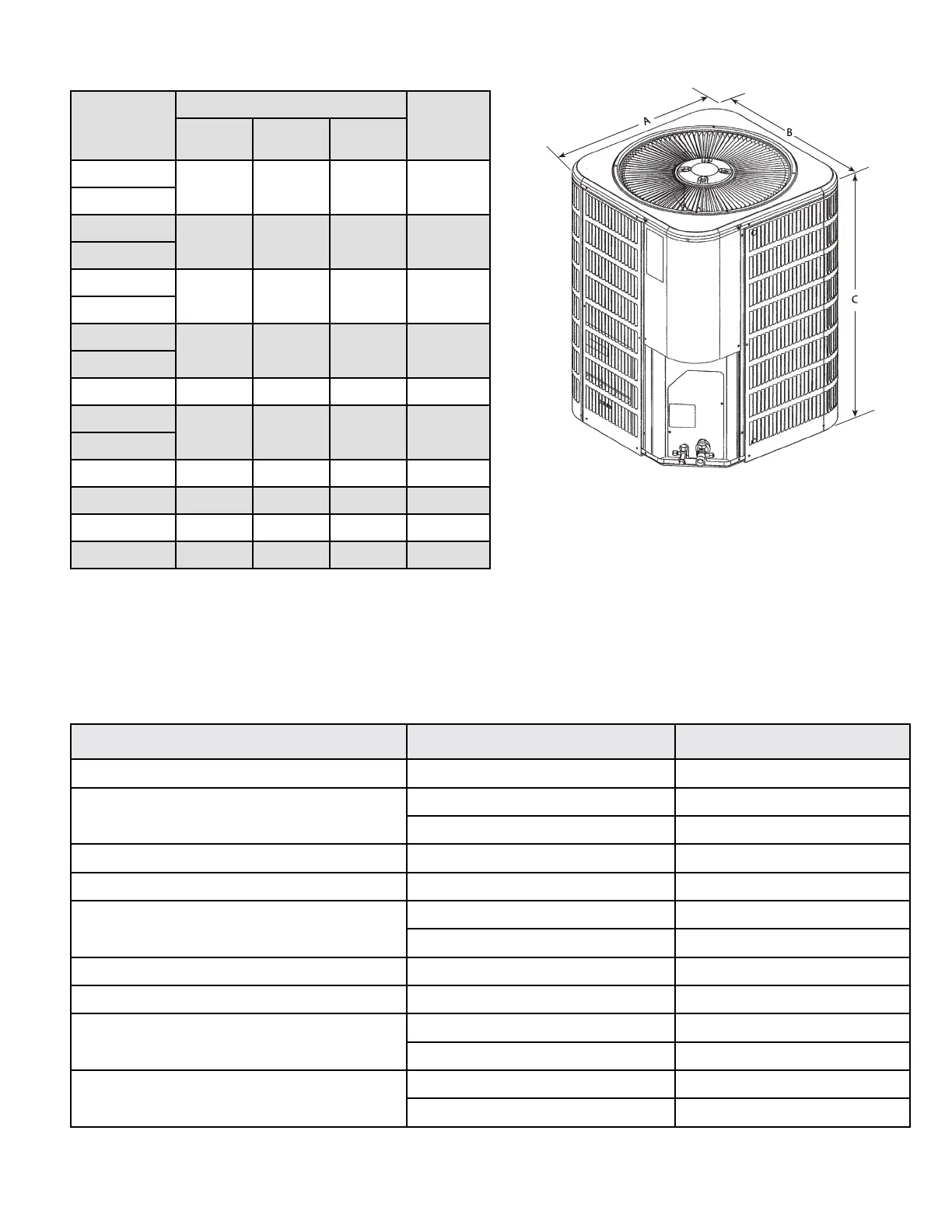

UNIT DIMENSIONS (IN.)
Model
Dimensions
Sound
Rating
(dBA)
A -
Width
B -
Depth
C -
Height
4AC14*18P
24.25 24.25 29.00 71
4AC14*R18P
4AC14*24P
28.25 28.25 29.00 76
4AC14*R24P
4AC14*30P
28.25 28.25 37.00 74
4AC14*R30P
4AC14*36P
28.25 28.25 37.00 74
4AC14*R36P
4AC14*41P 28.25 28.25 37.00 76
4AC14*42P
28.25 28.25 33.00 76
4AC14*R42P
4AC14*47P 28.25 28.25 37.00 80
4AC14*48P 28.25 28.25 33.00 80
4AC14*59P 32.25 32.25 37.00 78
4AC14*60P 32.25 32.25 37.00 80
Note:
Dimensions listed are unit sizes w/o packaging
