PAGE 28 ALMAC s.r.l.
2.13.3 Replacement of individual batteries
a. Disconnect the power supply of the machine via the battery switch;

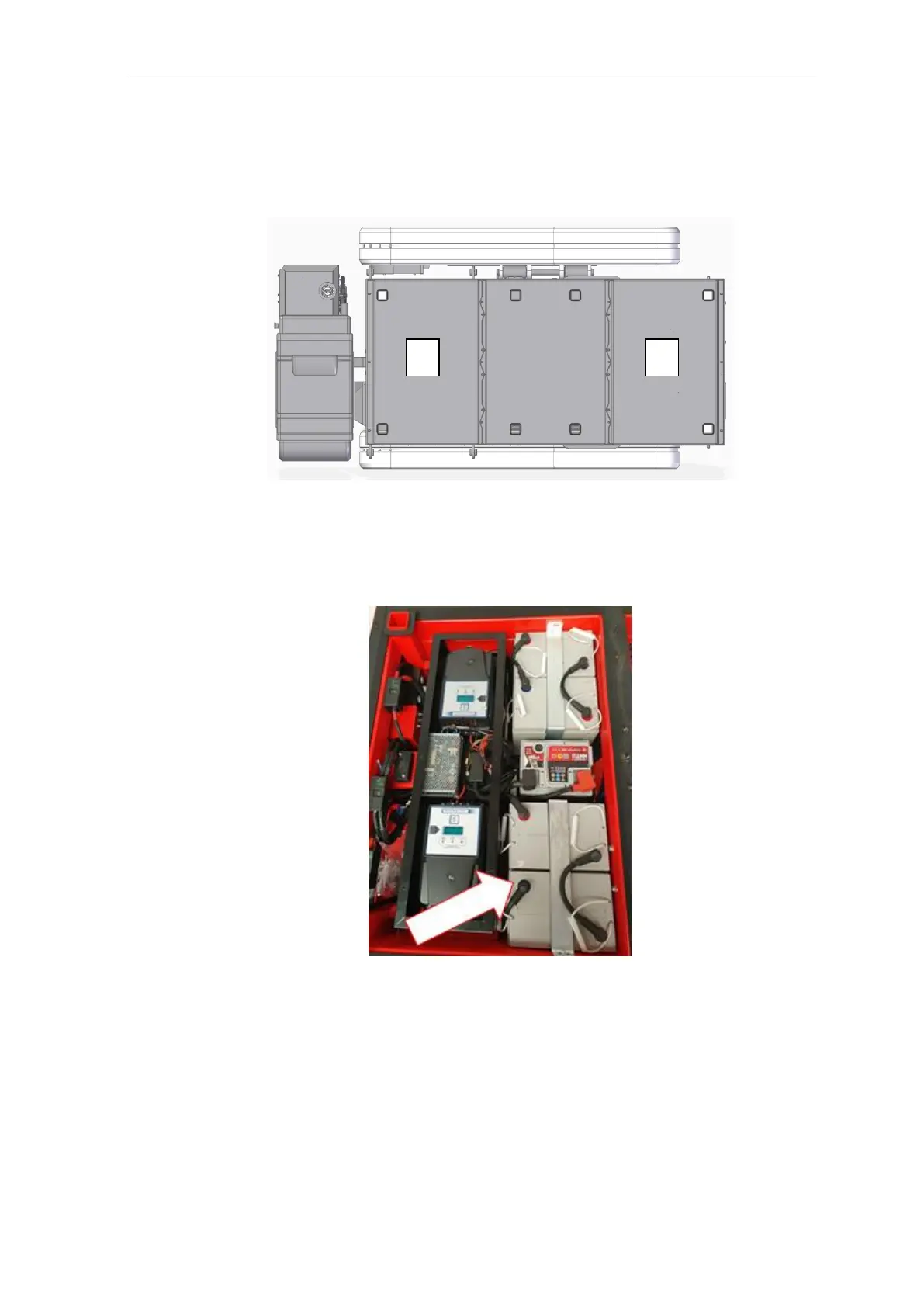

b. Remove the two planes A and B
c. Disconnect the GND battery negative pole (see photo below) taking care
to keep the disconnected part well insulated, protecting it adequately. By
way of example only, achieve this with insulating tape or with plastic
casing.
d. Disconnect the +48V battery positive pole (see photo below) taking care
to keep the disconnected part well insulated, protecting it adequately. By
way of example only, achieve this with insulating tape or with plastic
casing.
