ALMAC MULTI-LOADER 6.0 - Page 29

PAGE 29 ALMAC s.r.l.

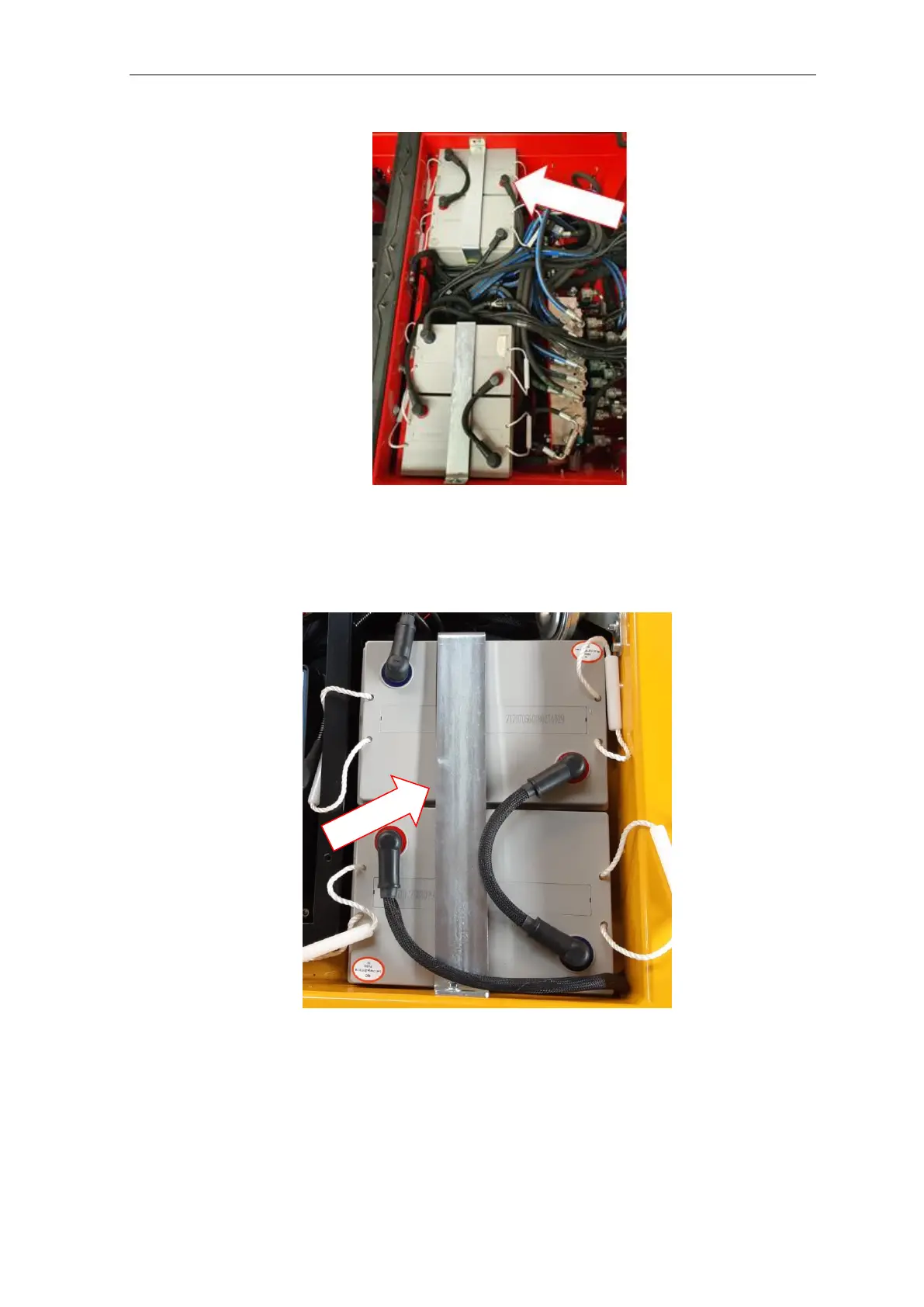

e. Once all the operations have been performed up to point d, each
individual battery (6V) can be replaced by removing the mechanical fixing
(See photo indication).
This can also be achieved by disconnecting the poles (as shown in the figure
below) having also in this case protected and isolated them.
