Alpha ESS M4856-S - ACR10 R Meter (if Applicable)

2.4.1.4 ADL-3000 (with CT, with meter plug), if applicable:

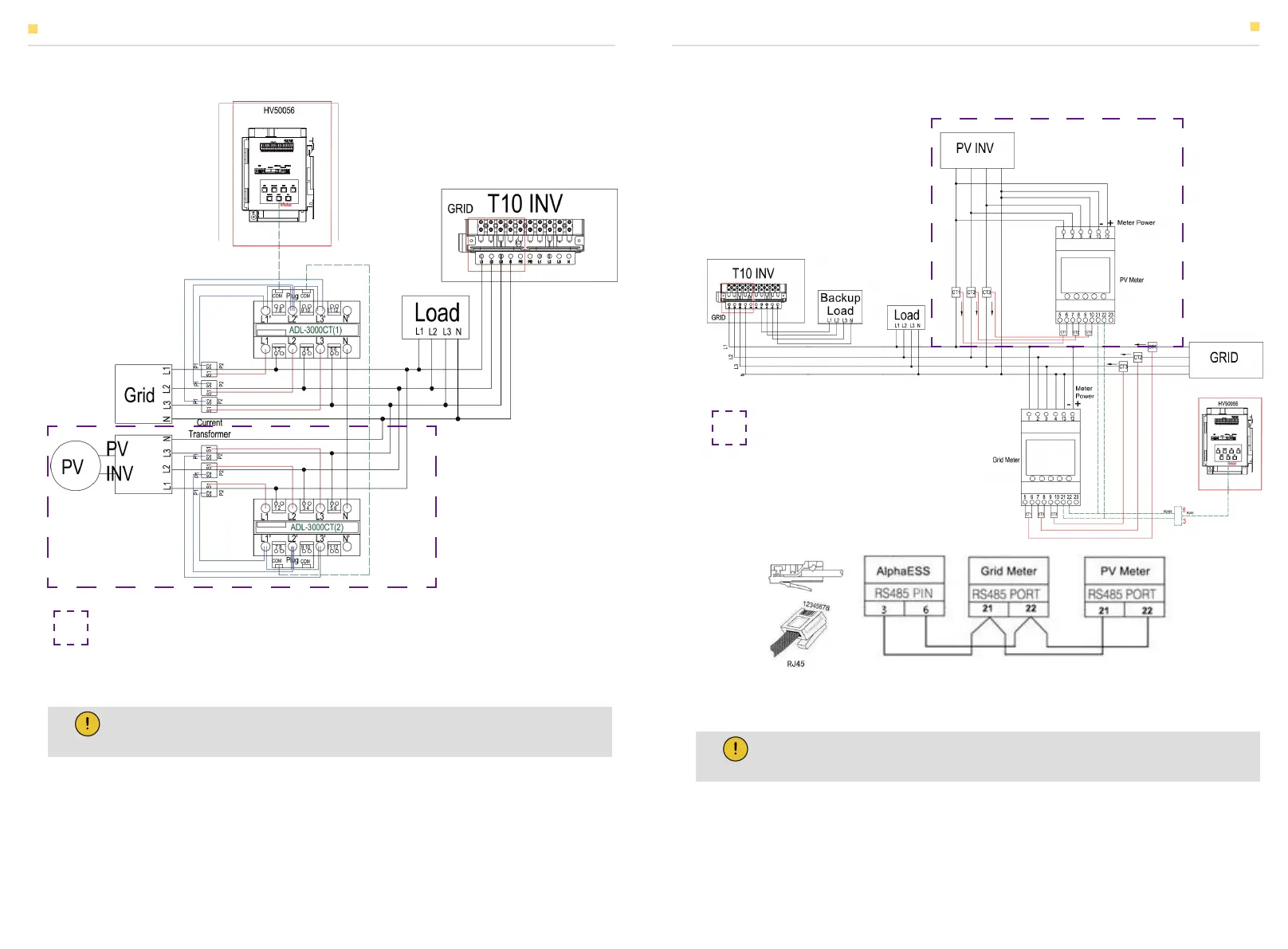

Figure 40 ADL-3000 Connection (with CT, with Meter Plug)
2.4.2 ACR10R Meter (If Applicable)
Figure 41 ACR10R with CT Connection (without Meter Plug)
INSTALLATION
INSTALLATION
Note: When connecting CTs, pay attention to the current direction. P1 should be
nearest to the grid or the PV-inverter.
A PV meter will be applied in an
AC/hybrid system.
Note: When connecting CTs, pay attention to CT arrow directions, please refer to
Figure 41.
A PV meter will be applied in an
AC/hybrid system.
