2.1.2 Restricted Locations
2.2 Installation
Figure 13 Unpacking the Battery
Figure 12 Removing Front Panel

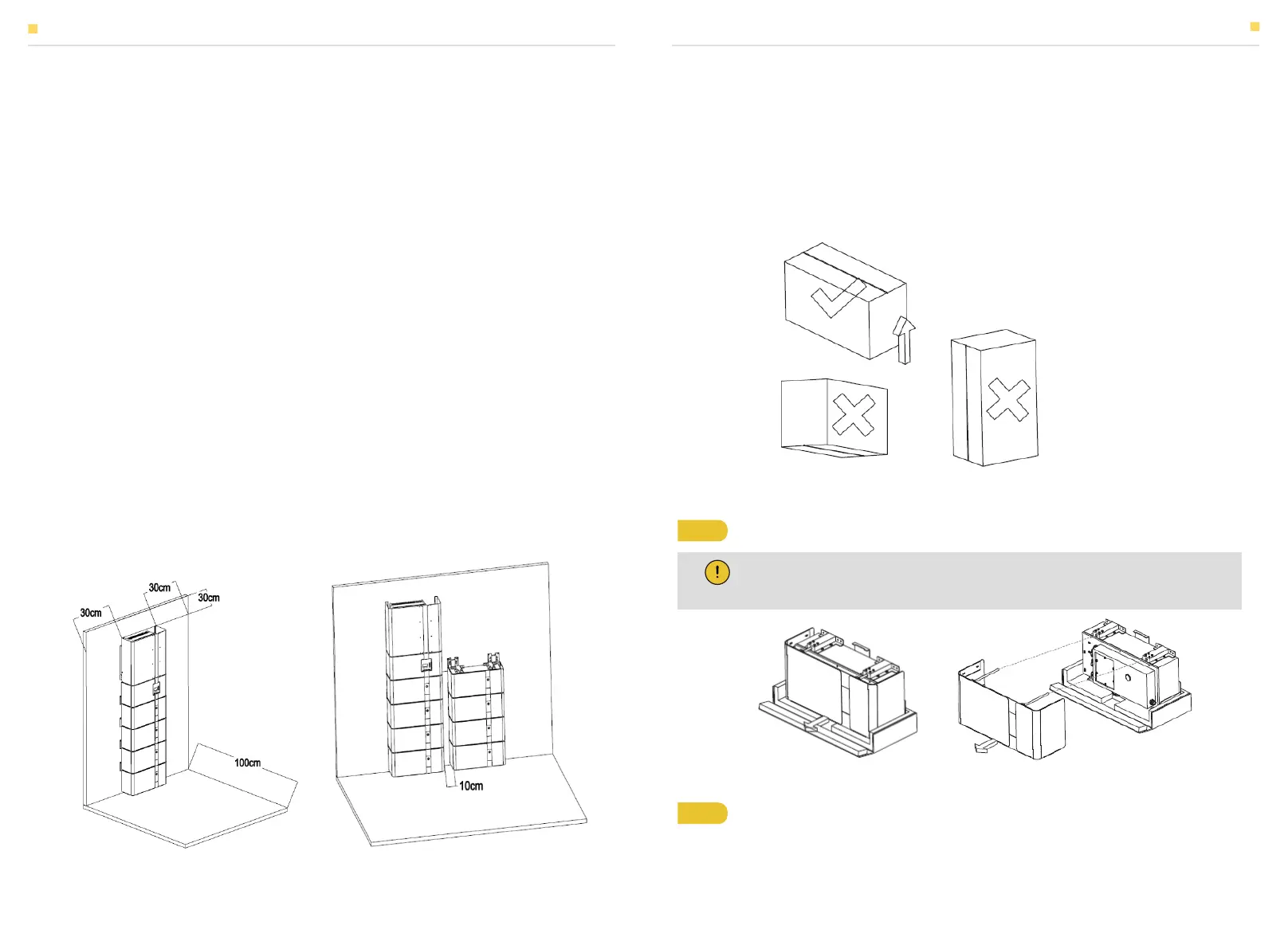

Figure 12 Distancelimit of Installation to Neighboring Objects
Where the SMILE-T10 is located on or within 300mm of the wall or structure separat-
ing it from the habitable room, the barrier shall extend —
Please refer to Figure 9
(i) 1000 mm beyond the vertical sides of the SMILE-T10;
(ii) 300 mm above the SMILE-T10; and
(iii) To the extent of the bottom of the SMILE-T10.
The following location are not allowed for installation:
• habitable rooms;
• in ceiling spaces;
• wall cavities;
• on roofs not specifically deemed suitable;
• areas of access/egress;
• under stairways;
• under access walkways;
• sites where the freezing point is reached, like garages, carports or other places;
• sites with humidity and condensation over 85%;
• sites which are salty and where humid air can penetrate;
• earthquake areas –additional security measures are required here;
• sites that are higher than 3000 meters above the sea level;
• sites with explosive atmosphere;
• sites with direct sunlight;
• sites with extreme change of ambient temperature;
• wet rooms;
• sites with highly flammable materials or gases; or
• sites with a potentially explosive atmosphere;
Step 1 Take out the battery from the packaging box.
Step 2 Pull the buckle from the bottom right in the middle and pull the top two guide rods
to remove the front panel.
INSTALLATION
INSTALLATION
NOTE: the packaging box must be placed in accordance with the marked direction, the
upward carton, unpacking in the other direction is wrong.
Where the top of the SMILE-T10 is within 300 mm of the ceiling or structure above the
SMILE-T10, the ceiling or structure surface shall be suitably non-combustible for an
area of 600 mm past the extremities of the SMILE-T10.
Where more than 4 batteries are installed, some batteries shall be installed beside,
distance between two rows batteries shall be not less than 100 mm
SMILE-T10 shall be mounted with the highest point no greater than 2.2 m above the
floor or platform.
11 12
