We reserve the right to make technical changes.
UK830509/200114 © Alpha-InnoTec GmbH

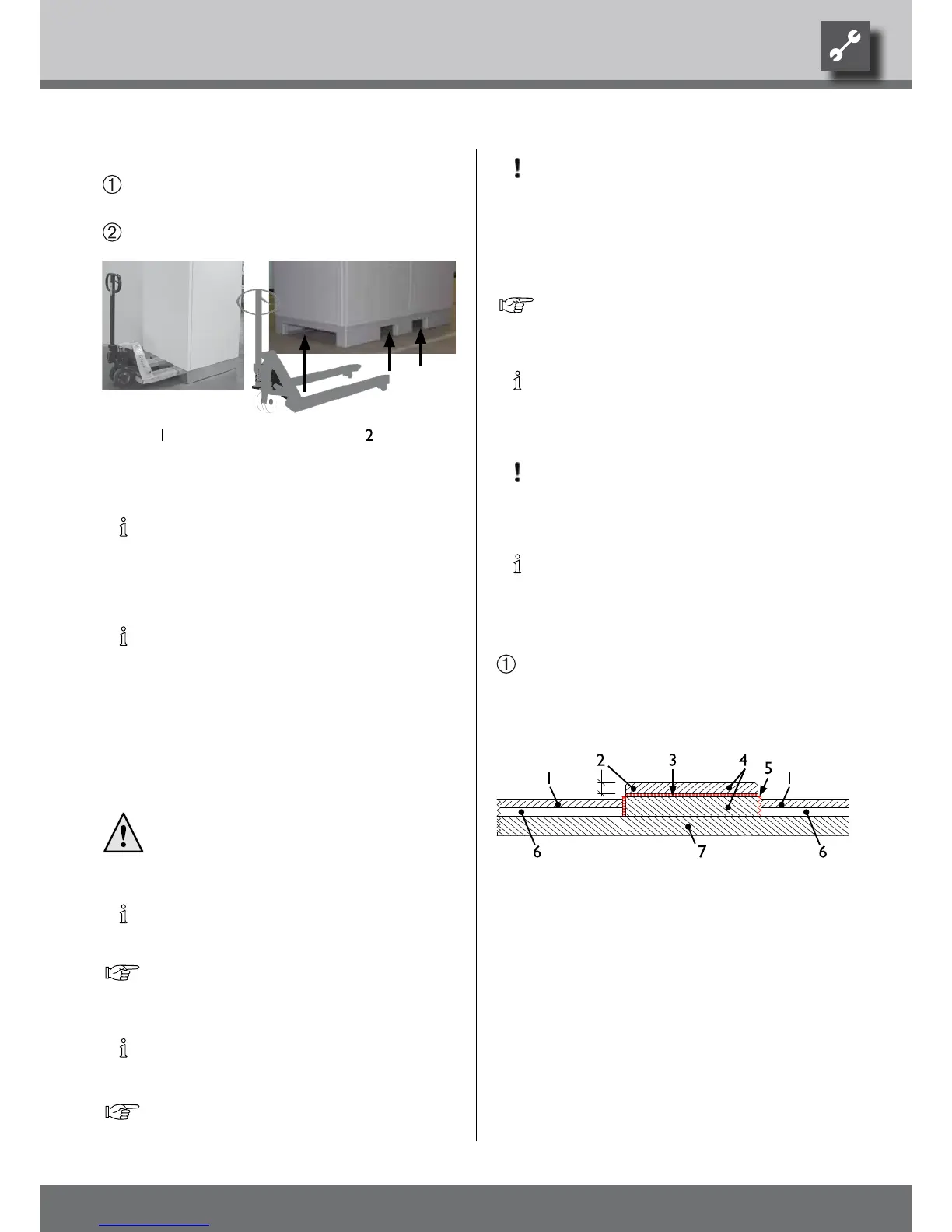

Proceed as follows:
Remove packaging and set extra box aside (will be
needed later on!)...
Transport the unit using a lifting truck...
1 Size 1
2 Size 2
NOTE.
The two openings for the lifting truck must
be closed with the covering plates supplied
(two screws each).
NOTE.
Please always close the transport open-
ings so as to reduce noise!
installation
DANGER!
Several people are required to install the
unit.
NOTICE:
Take into account the size of the unit.
Overview “Technical data/scope of delivery”,
“General unit data” section.
NOTICE:
Always comply with the dimensional draw-
ings for the respektive size.
Overview “Dimensional drawings” and “Clear-
ance dimensions” for the respective size.
CAUTION.
The heat pump must be placed on a load-
bearing, horizontal base. Ensure that the
base is designed for the weight of the heat
pump.
Do not use a rigid foam boiler platform!
Overview “Technical data/scope of delivery”,
“General unit data” section.
NOTE.
Set up the device so that the control side
is accessible at all times!
CAUTION.
Do not tilt device more than 45° - applies
for every direction!
NOTE.
The openings for the lifting truck must be
closed with the covering plate supplied!.
Proceed as follows at the installation site:
Place the device on a load-bearing and horizon-
tal base, preferably insulated from structure-borne
sound…
Detail drawing of concrete foundation:
1 Screed
2 Approx. 100 mm according
to weight of heat pump
3 Insulation from structure-
borne sound according to
weight of heat pump
4 Concrete foundation
5 Edge insulation strip
6 Impact sound insulation
7 Concrete cover
