Alpha 9500 HF Linear Amplifier Operating Manual Alpha Radio Products
Setting Up the Amplifier Product Release 1
DOCNUMBER 9500
Document Issue 1, Revision 7
Page 5–2 June 2009
55

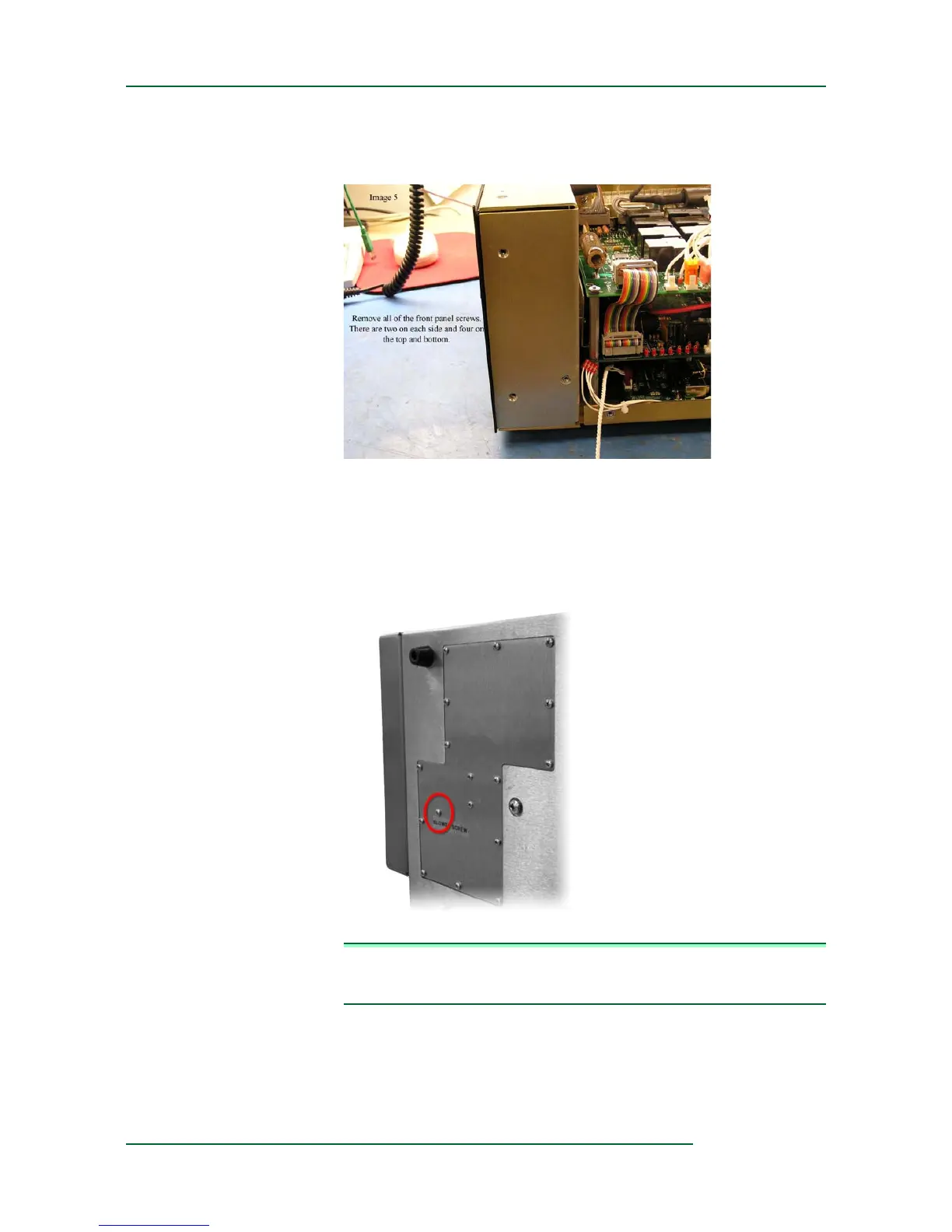

3b Remove the cover screws (Figure 5-1) and the cover.
Figure 5-1
Cover screws
3c Rotate the amplifier onto its right hand side.
3d While looking at the bottom, locate and remove the screw (labeled
BLOWER SCREW, Figure 5-2) that holds the blower in place
during shipping.
Figure 5-2
Blower screw
NOTE: Before shipping, reinsert the screw to prevent damage to the
blower.
