Alpha Radio Products Alpha 9500 HF Linear Amplifier Operating Manual
Product Release 1 Setting Up the Amplifier
3c Align the connectors with both pins in their appropriate slots, then
gently but firmly push the connectors together so that they are fully
mated.

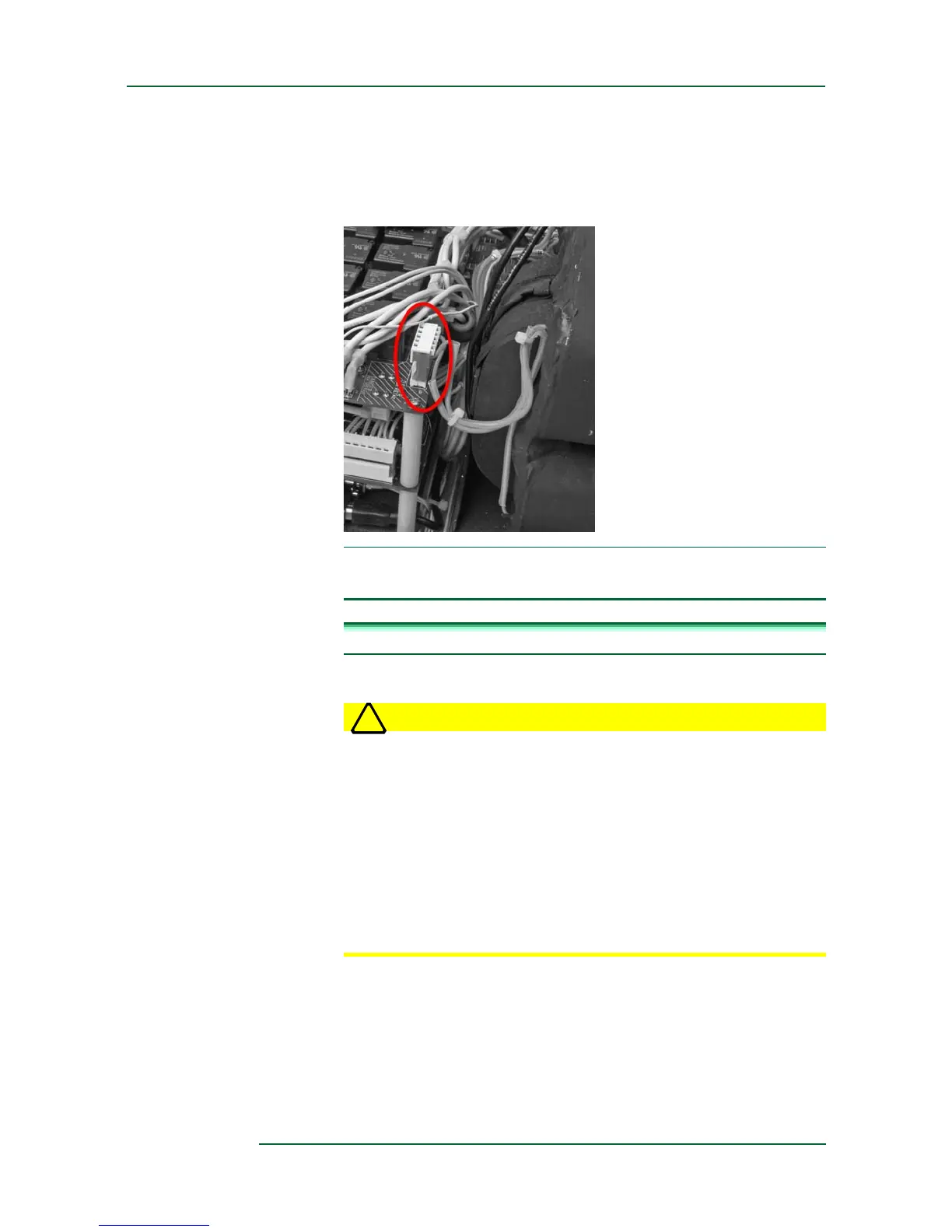

Figure 5-10
Connecting transformer to mains board
5.4 Connect the Cables
Procedure 5-4 Connect the cables
Step 1 Connect the power cord.
WARNING! To avoid the hazard of a potentially fatal electric shock
and/or severe damage to the ALPHA 9500 and other equipment:
•
ALWAYS use an AC plug that is appropriate for the primary mains
voltage, current rating, and configuration.
•
ALWAYS use grounding type AC connectors that conform to local codes.
•
NEVER use 120-V-type plugs to connect to power receptacles for
190–250 V circuits.
•
ALWAYS connect ALL station equipment to a good common ground.
Failure to do so may allow RF feedback to leak into the transceiver and
cause severe signal distortion.
