Alpha 9500 HF Linear Amplifier Operating Manual Alpha Radio Products
Setting Up the Amplifier Product Release 1
DOCNUMBER 9500
Document Issue 1, Revision 7
Page 5–6 June 2009
55
2c Align the transformer’s HV connector with the amplifier’s HV board
connector, with all pins in their appropriate slots, then gently but
firmly push the connectors together so that they are fully mated.

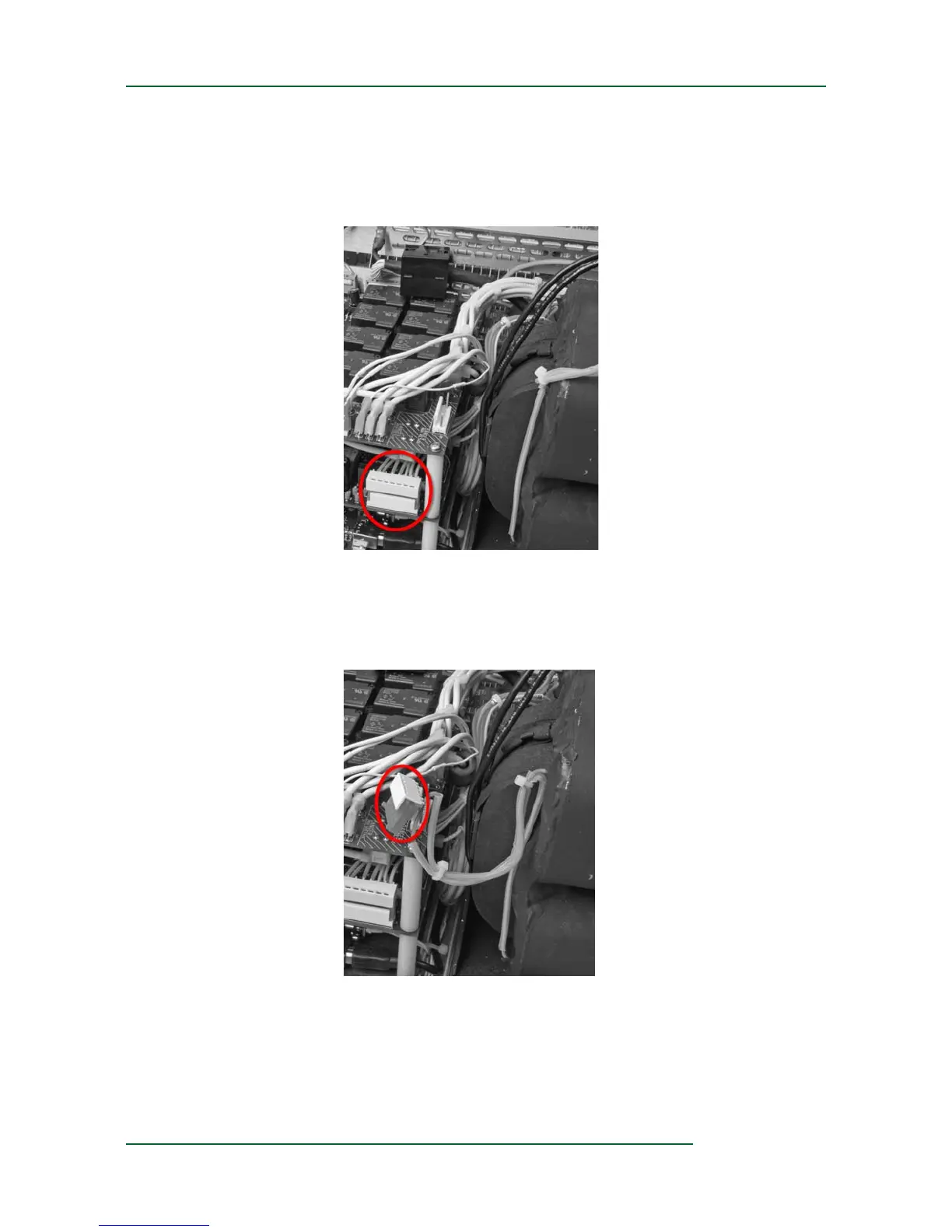

Figure 5-8
Connecting transformer to the HV board
Step 3 Connect the transformer to the amplifier’s mains board (the upper of the
two boards).
3a Locate the transformer’s 2-pin mains-board connector.
Figure 5-9
Transformer’s 2-pin mains-board connector
3b Locate the respective 2-pin connector on the amplifier’s mains board.
