Alpine Spas K2 - Page 54

54
SIERRA SPA POOL OVERVIEW
7. GETTING TO KNOW YOUR SPA POOL
Components:
Spa Pool Controller SpaNet SV-SMART
TopsideControlPanel SpaNet SV-SMART
Heater Element 3KW
Pumps 1xCirculationPump+2xJetMassagePump(3HP)
Skimmer/FilterType Grate Filter
Sanitizers Ozone,Ultra-Violet
Electrical Info 25amps 230 - 240V AC 50hz IPX5
Cable NoCable-HardwiringRequired.
Hardwire Required:
Thisspapoolrequiresdirecthardwiringfromthecircuitboardtothesystem
controllerwithsuitableelectricalcable.
Locating the Controller
Removethecabinetpanelsfromthesideofthespathathousesthecontroller(see
followingpictureforexactlocation).

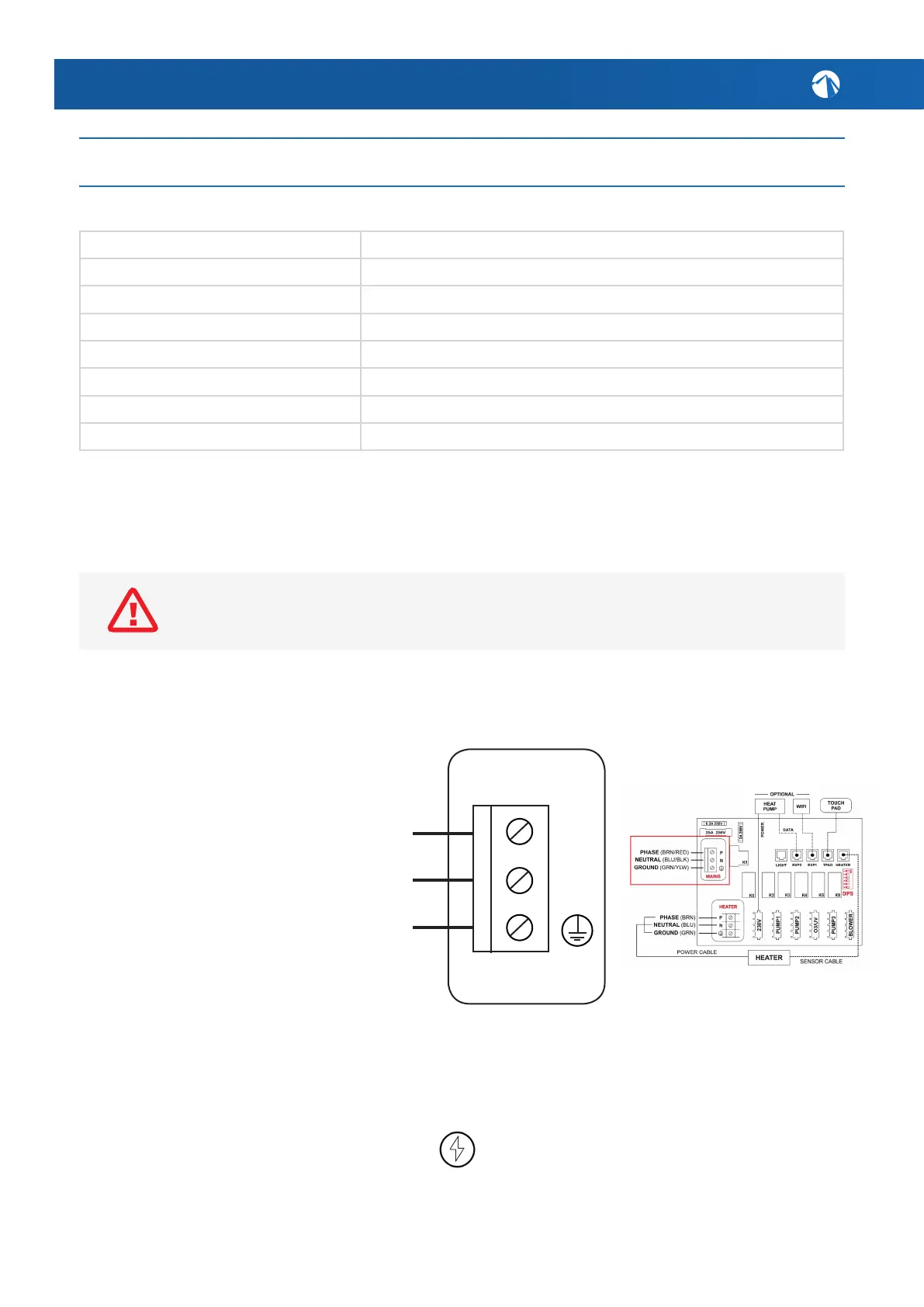

BELOW DIAGRAM IS FOR SINGLE PHASE 25A CONNECTION.
DIP SWITCHES ARE PRESET & SHOULD NOT NEED ALTERING.
DO NOT POWER THE SPA POOL BEFORE IT HAS BEEN FILLED
PHASE (BRN/RED)
NEUTRAL (BLU/BLK)
GROUND (GRN/YLW)
MAINS
P
N
