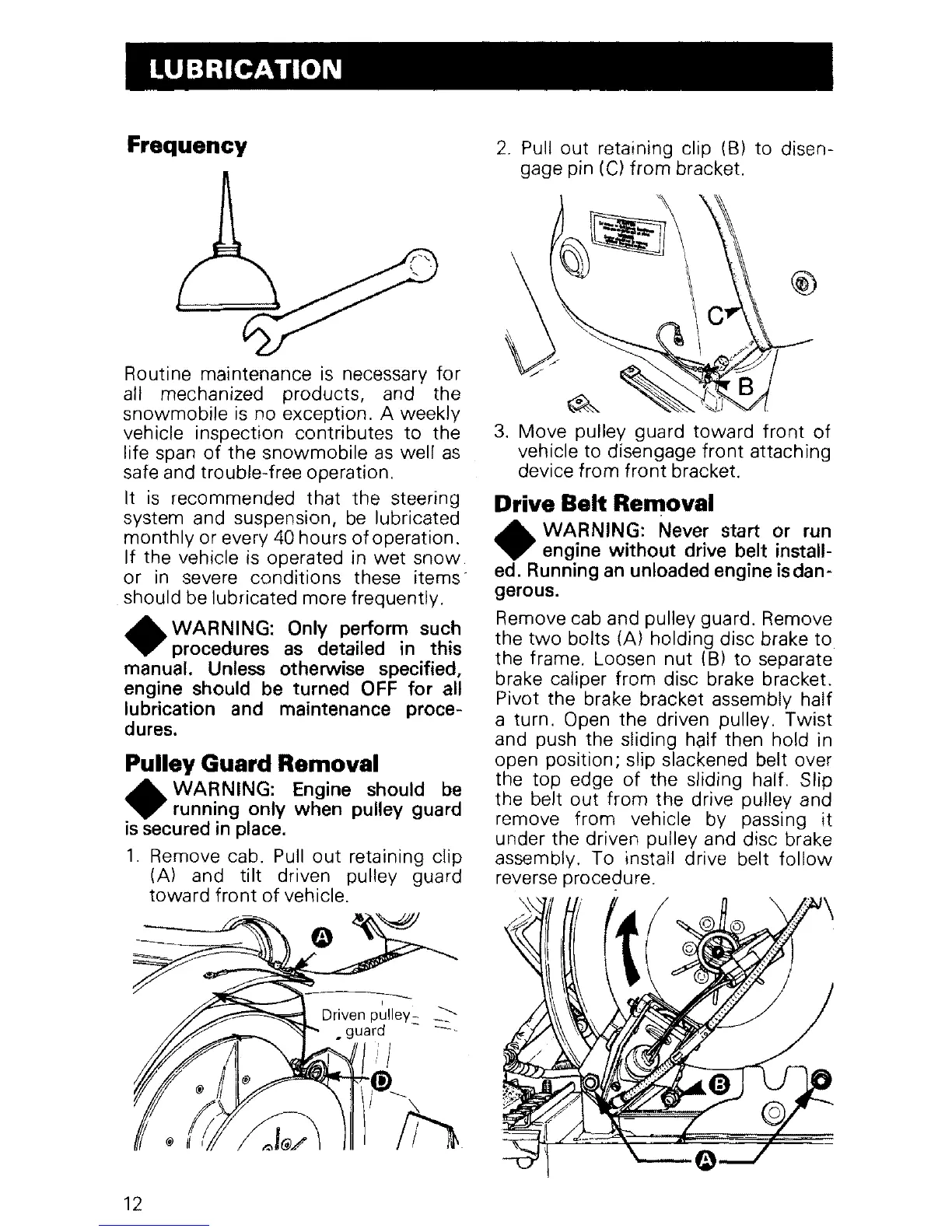

LUBRICATION
2. Pull out retaining clip (8) to disen-
gage pin (C) from bracket.
~~~
~~
3. Move pulley guard toward front of
vehicle to disengage front attaching
device from front bracket.
Drive Belt Removal
.....
WARNING: Never start or run
"".
engine without drive belt install-
ed. Running an unloaded engine isdan-
gerous.
Remove cab and pulley guard. Remove
the two bolts (A) holding disc brake to
the frame. Loosen nut (B) to separate
brake caliper from disc brake bracket.
Pivot the brake bracket assembly half
a turn. Open the driven pulley. Twist
and push the sliding half then hold in
open position; slip slackened belt over
the top edge of the sliding half. Slip
the belt out from
the drive pulley and
remove from vehicle by passing
it
under the driven pulley and disc brake
assembly. To install drive belt follow
reverse procedure.
Frequency
Pulley Guard Removal
.....
WARNING: Engine should be
"".
running only when pulley guard
is secured in place.
1. Remove cab. Pull out retaining clip
(A) and tilt driven pulley guard
toward front of
vehicle.
~
Routine maintenance is necessary for
all mechanized products, and the
snowmobile is no exception. A weekly
vehicle inspection contributes to the
life span of the snowmobile as well as
safe and trouble-free operation.
It is recommended that the steering
system and suspension, be lubricated
monthly or every 40 hours of operation.
If the
vehicle is operated in
wet
snow.
or in severe conditions these items'
should be lubricated more frequently.
.....
WARNING: Only perform such
"".
procedures as detailed in this
manual. Unless otherwise specified
engine should be turned OFF for
all
lubrication and maintenance proce-
dures.
