(M7)
General
Inspection
Check electrical wiring and compo-
nents, retighten loose connections.
Check for stripped wires or damaged
insulation. Thoroughly inspect the ve-
hicle and tighten loose bolts, nuts and
linkage. Inspect ski and ski runner for
wear.

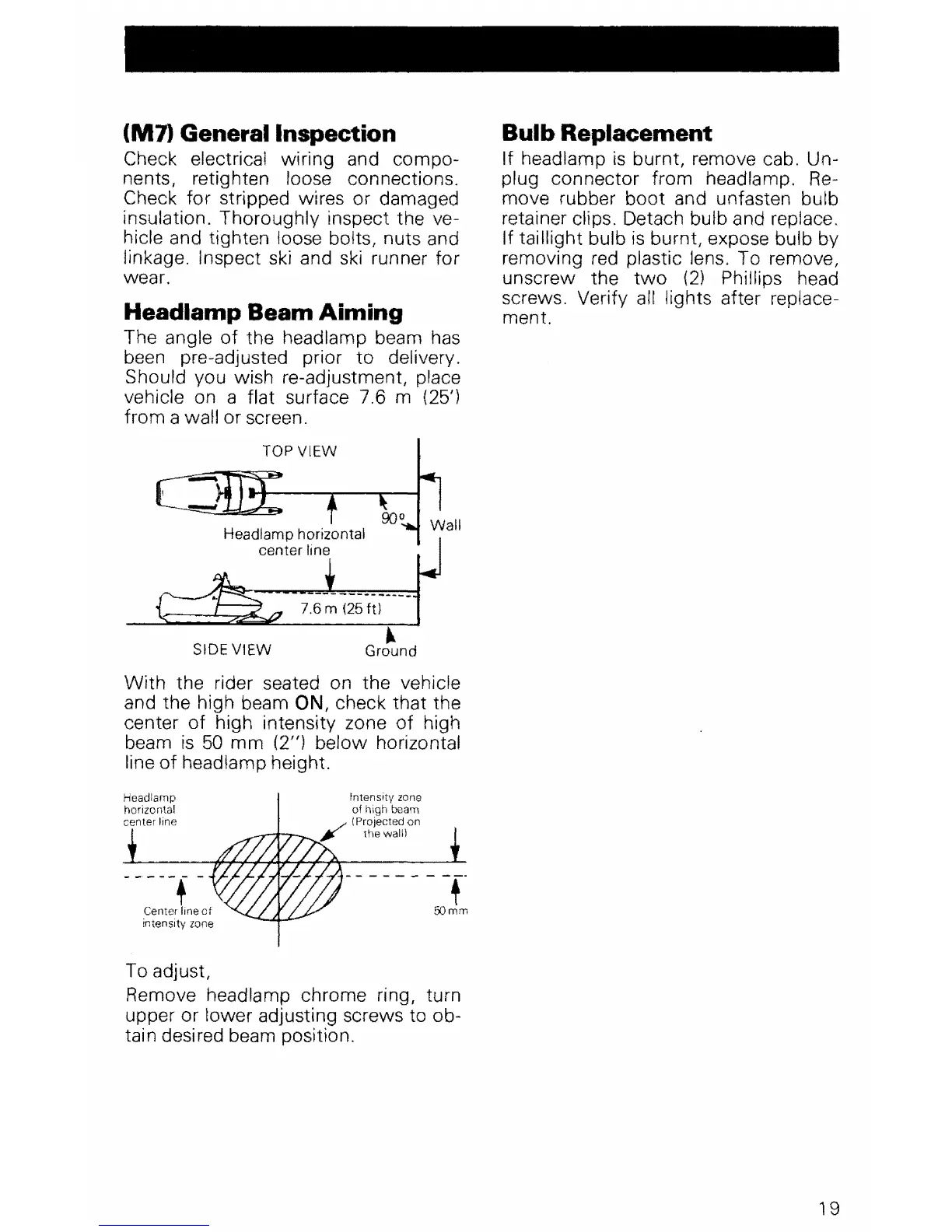

Headlamp Beam Aiming
The angle of the headlamp beam has
been pre-adjusted prior to delivery.
Should you wish re-adjustment, place
vehicle on a flat surface 7.6 m (25')
from a wall or screen.
TOP
VIEW
Bulb Replacement
If headlamp is burnt, remove cab. Un-
plug connector from headlamp.
Re-
move rubber
boot
and unfasten bulb
retainer clips. Detach bulb and replace.
If taillight bulb is burnt, expose bulb by
removing red plastic lens. To remove,
unscrew the
two
(2) Phillips head
screws. Verify
all lights after
reotaca-
ment.
SIDE
VIEW
~
Ground
With
the rider seated on the vehicle
and the high beam ON, check that the
center of high intensity zone of high
beam
is 50 mm (2") below horizontal
line of headlamp height.
center
-------
-f'
50mm
To adjust,
Remove headlamp chrome ring, turn
upper or lower adjusting screws to ob-
tain desired beam position.
19
