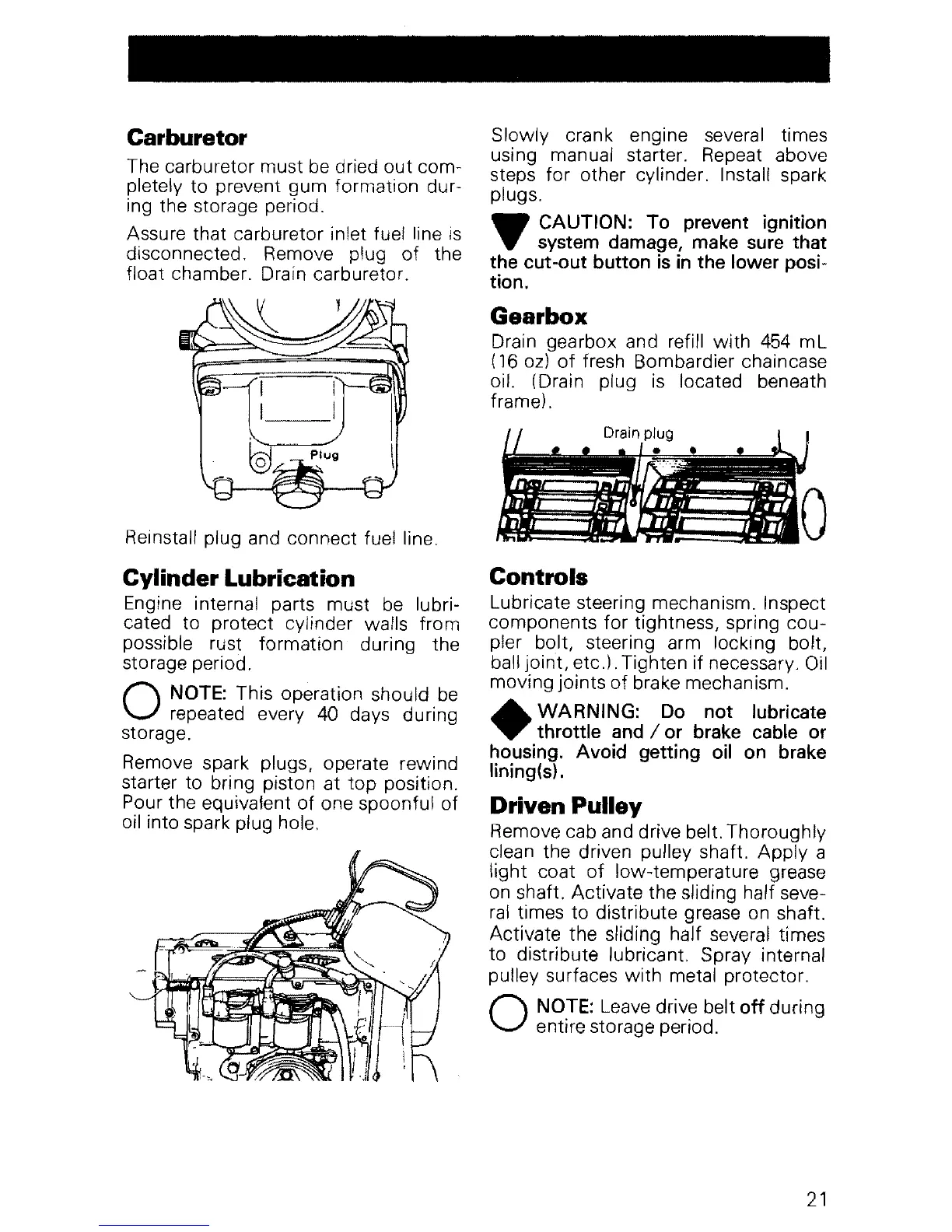

Carburetor
The carburetor must be dried out com-
pletely to prevent gum formation dur-
ing the storage period.
Assure that carburetor inlet fuel line is
disconnected. Remove
plug of the
float chamber. Drain carburetor.
Reinstall plug and connect fuel line.
Cylinder Lubrication
Engine internal parts must be lubri-
cated to protect cylinder walls from
possible rust formation during the
storage period.
O
NOTE: This operation should be
repeated every 40 days during
storage.
Remove spark plugs, operate rewind
starter to bring piston at top position.
Pour the equivalent of one spoonful of
oil into spark plug hole.
Slowly crank engine several times
using manual starter. Repeat above
steps for other cylinder. Install spark
plugs.
...
CAUTION: To prevent ignition
...
system damage, make sure that
the cut-out button is in the lower posi-
tion.
Gearbox
Drain gearbox and refill with 454 mL
(16 oz) of fresh Bombardier chaincase
oil. (Drain plug is located beneath
frame).
Controls
Lubricate steering mechanism. Inspect
components for tightness, spring
cou-
pler bolt, steering arm locking bolt,
ball joint, etc.l. Tighten if necessary. Oil
moving joints of brake mechanism.
...
WARNING: Do not lubricate
....... throttle and / or brake cable or
housing. Avoid getting oil on brake
lining(s).
Driven Pulley
Remove cab and drive belt. Thoroughly
clean the driven pulley shaft. Apply a
light coat of low-temperature grease
on shaft. Activate the sliding half
seve-
ral times to distribute grease on shaft.
Activate the sliding half several times
to distribute lubricant. Spray internal
pulley surfaces with metal protector.
O
NOTE: Leavedrive belt
off
during
entire storage period.
21
