Tighten link plate spring lock nuts.
Rotate tracks slowly and recheck
alignment.
....
WARNING:
Before
checking
....
track alignment, ensure that the
track is free of all particles which could
be thrown out while track is rotating.
Keep hands, tools, feet and clothing
clear
of
track.
Ensure
no-one
is
stand-
ing in close proximity to the vehicle.

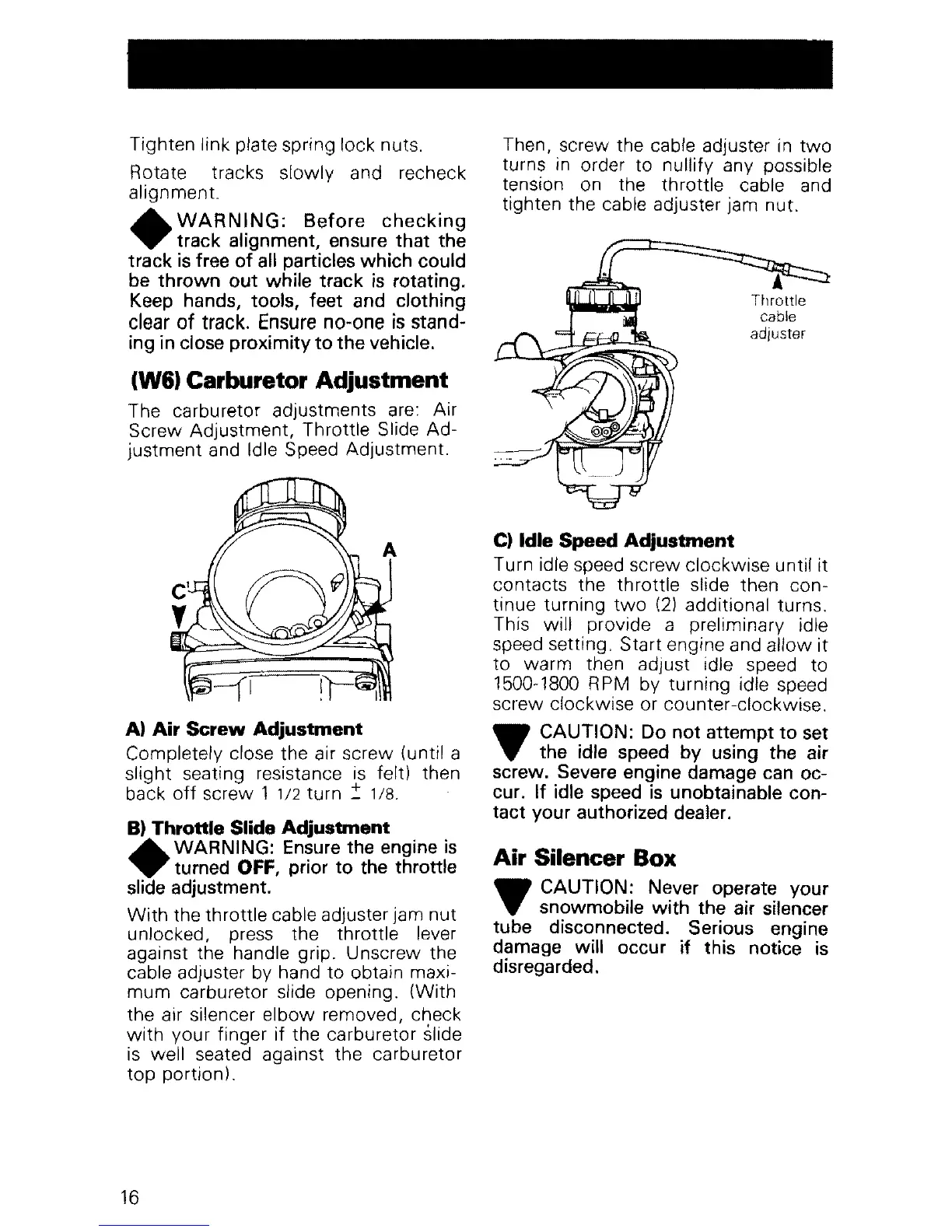

(W6) Carburetor Adjustment
The carburetor adjustments are: Air
Screw Adjustment, Throttle Slide Ad-
justment and Idle Speed Adjustment.
A) Air Screw Adjustment
Completely close the air screw (until a
slight seating resistance is felt) then
back
off
screw 1
1/2
turn Z
1/8.
B) Throttle Slide Adjustment
....
WARNING:
Ensure the engine is
....
turned OFF, prior to the throttle
slide adjustment.
With
the throttle cable adjuster jam nut
unlocked, press the throttle lever
against the handle grip. Unscrew the
cable adjuster by hand to obtain maxi-
mum carburetor slide opening. (With
the air silencer elbow removed, check
with
your finger if the carburetor slide
is well seated against the carburetor
top portion).
16
Then, screw the cable adjuster in
two
turns in order to nullify any possible
tension on the throttle cable and
tighten the cable adjuster jam nut .
A
Throttle
cable
adjuster
C) Idle Speed Adjustment
Turn idle speed screw clockwise until it
contacts the throttle slide then con-
tinue turning
two
(2) additional turns.
This will provide a preliminary idle
setting. Start engine and allow it
to warm then adjust idle speed to
1500-1800 RPM
by turning idle speed
screw clockwise or counter-clockwise.
tIP
CAUTION:
Do not attempt to set
....
the idle speed by using the air
screw. Severe engine damage can oc-
cur. If idle speed is unobtainable con-
tact your authorized dealer.
Air Silencer Box
tIP
CAUTION:
Never operate your
....
snowmobile with the air silencer
tube disconnected. Serious engine
damage will occur if this notice is
disregarded.
