Alpine 3523 - Cabinet Assembly Parts List

| 3523

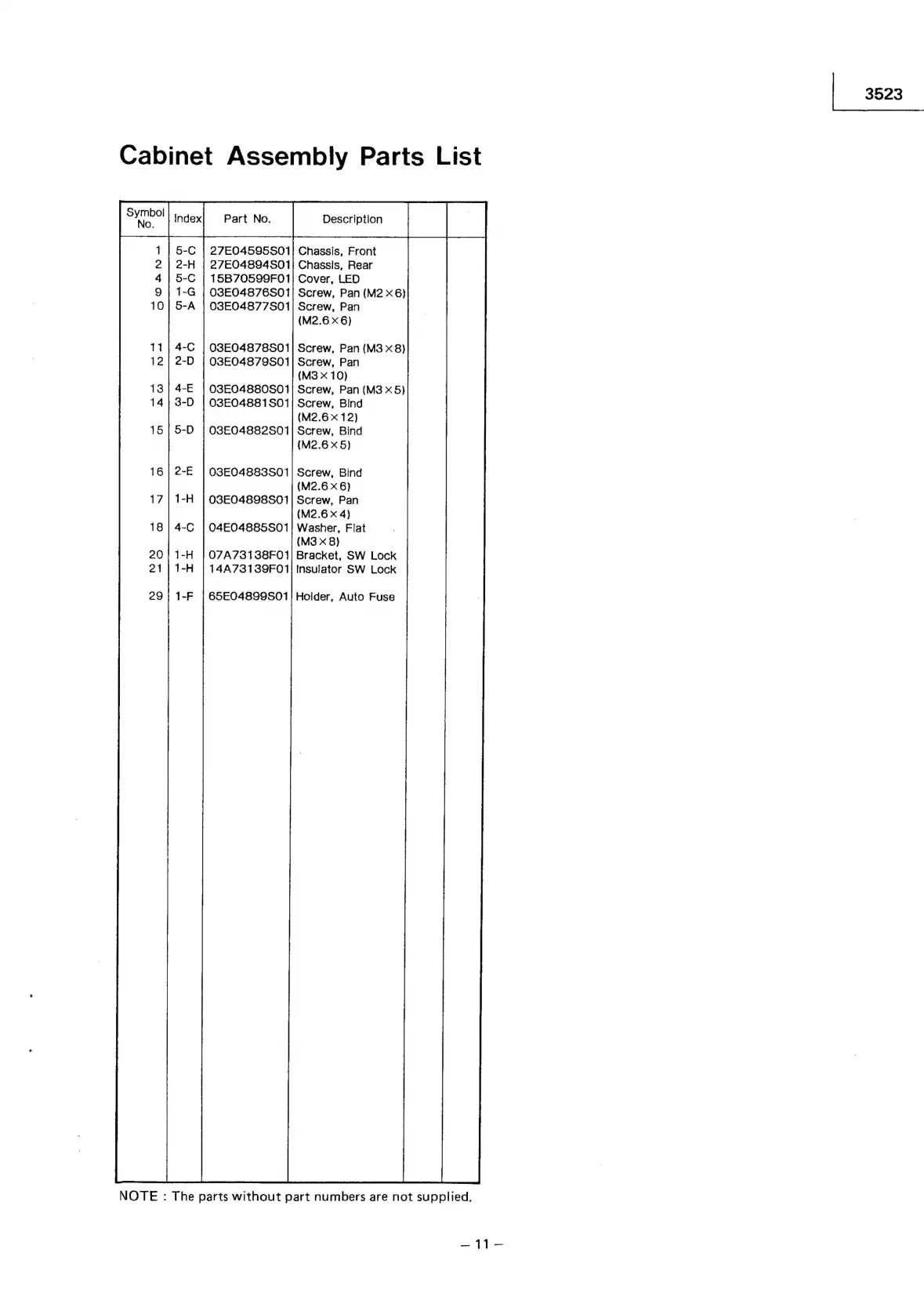

Cabinet Assembly Parts List
27E04595S01! Chassis, Front
27E04894S01) Chassis, Rear
15B70599F 01} Cover, LED
03E04876S01| Screw, Pan (M2 x6}
03E048773S01| Screw, Pan
(M2.6 x6)
03E04878S01| Screw, Pan (M3 x8)
03E04879S01)| Screw, Pan
(M3 X 10)
03E04880S01| Screw, Pan (M3 x5)
03E04881S01| Screw, Bind
(M2.6 x 12)
03E04882S01| Screw, Bind
(M2.6 x 5)
O03E04883S01| Screw, Bind
(M2.6 x 6)
03E04898S01| Screw, Pan
(M2.6 x 4)
04E04885S01| Washer, Flat
(M3 x 8)
07A73138F01| Bracket, SW Lock
14A73139F01! Insulator SW Lock
65E04899S01}| Holder, Auto Fuse
NOTE : The parts without part numbers are not supplied.
—11-—
