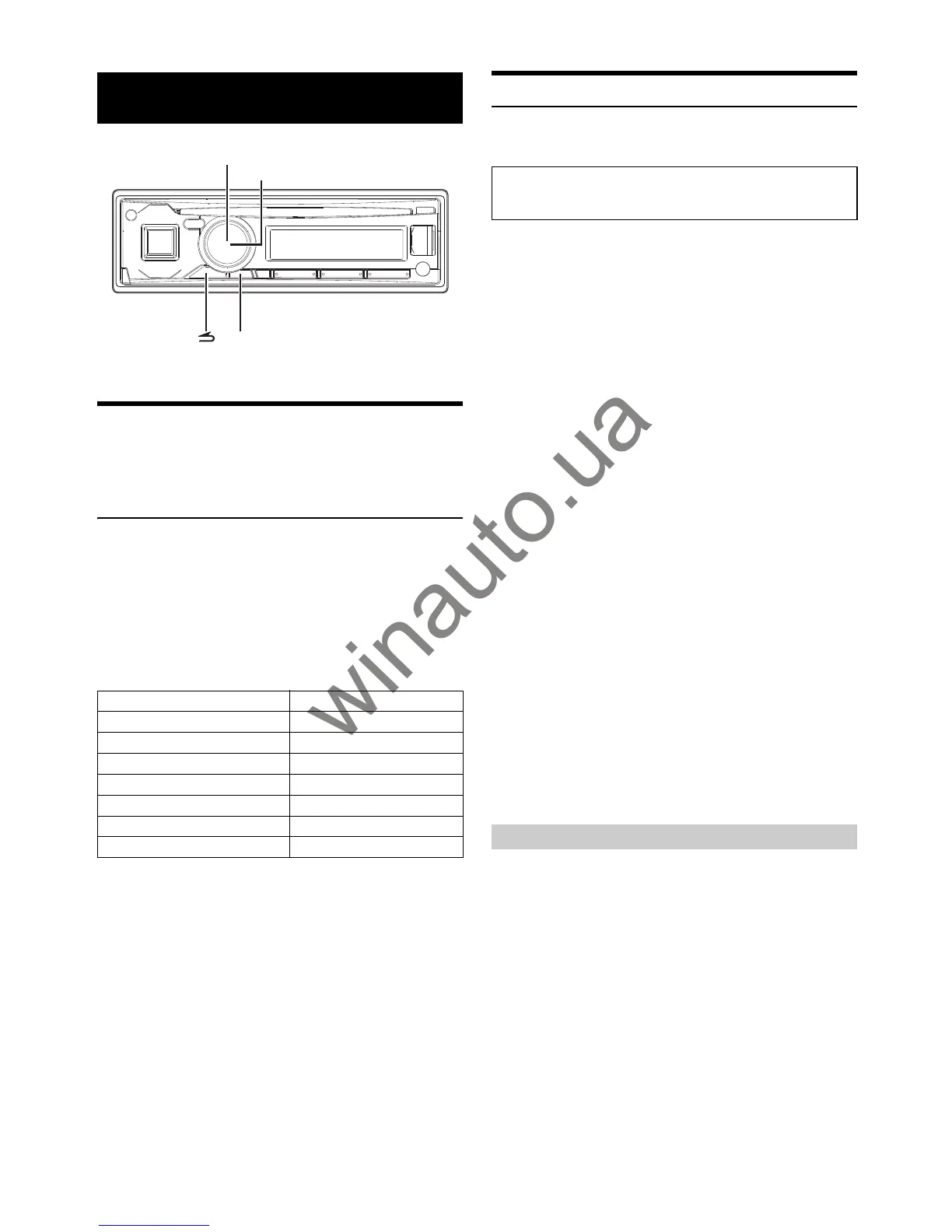

* The illustration is for CDE-173BT.
Adjusting Subwoofer Level/Bass Level/Mid
Level/Treble Level/Balance (Between Left
and Right)/Fader (Between Front and Rear)/
Defeat
1
Press AUDIOSETUP repeatedly to choose the desired
mode.
Each press changes the mode as follows:
SUBWOOFER
*1
BASS LEVEL
*2
MID LEVEL
*2
TRE LEVEL
*2
BALANCE FADER DEFEAT VOLUME SUBWOOFER
*1 When the SUBWOOFER mode is set to OFF, its level cannot be
adjusted.
*2 Adjustable only when DEFEAT is OFF.
Note
If no operation is performed for 5 seconds, the unit automatically
returns to normal mode.
2
Turn the Rotary encoder until the desired sound is
obtained in each mode.
By setting DEFEAT ON, previously adjusted settings of BASS, MID
and TRE LEVEL will return to the factory defaults.
Audio Setup
You can flexibly customize the unit to suit your own preference and
usage. From the AUDIO SETUP menu, Audio Setting can be modified.
1
Press and hold AUDIOSETUP for at least 2 seconds to
activate the SETUP mode.
2
Turn the Rotary encoder to select AUDIO, and then press
ENTER.
AUDIO GENERAL DISPLAY TUNER iPod BLUETOOTH
3
Turn the Rotary encoder to select the desired sound
setting menu, and then press ENTER.
FAC TORY EQ
*1/*2
3BAND EQ
*1/*3
VOL LV ADJ HPF
*1
SUBWOOFER SUBW LPF
*1/*4
SUBW PHASE
*4
SUBW SYS
*4
POWER IC MX SETTING
*1
(e.g. Select SUBWOOFER)
*1 Adjustment cannot be performed when DEFEAT is set to ON.
*2 Any changes made to either FACTORY EQ or 3BAND EQ are
reflected in the others’ settings.
*3 In step 3, three sound adjustment items (Bass, Mid and Treble)
can be selected in 3BAND EQ mode. Turn the Rotary encoder
to select the desired item, and then press ENTER to continue
to step 4.
*4 These functions are inoperable when SUBWOOFER is set to
OFF.
4
Turn the Rotary encoder to change the setting, and then
press ENTER.
(e.g. Select SUBW ON or SUBW OFF)
5
Press and hold AUDIOSETUP for at least 2 seconds to
return to normal mode.
Notes
•Pressing r returns to the previous Sound menu mode.
Pressing and holding r for at least 2 seconds will return to normal
mode.
If no operation is performed for 60 seconds, Sound menu mode is
cancelled.
10 typical equalizer settings are preset at the factory for a variety of
musical source material. USER settings are created in the 3BAND EQ
mode.
Setting item: FACTORY EQ
Setting contents:
USER / FLAT (Initial setting) / POPS / ROCK / NEWS / JAZZ /
ELEC DANCE / HIP HOP / EASY LIS / COUNTRY / CLASSICAL
Sound Setting
Subwoofer +0 ~ +15
Bass level −7 ~ +7
Mid level −7 ~ +7
Treble level −7 ~ +7
Balance L15 ~ R15
Fader R15 ~ F15
Defeat ON/OFF
Volume 0 ~ 35
AUDIO/SETUP
/ENTER
Rotary encoder
Use steps 1 to 5 to select one of the setting modes to modify.
See the applicable section below for details about the
selected setting item.
Equalizer Presets (F-EQ)
