38-EN

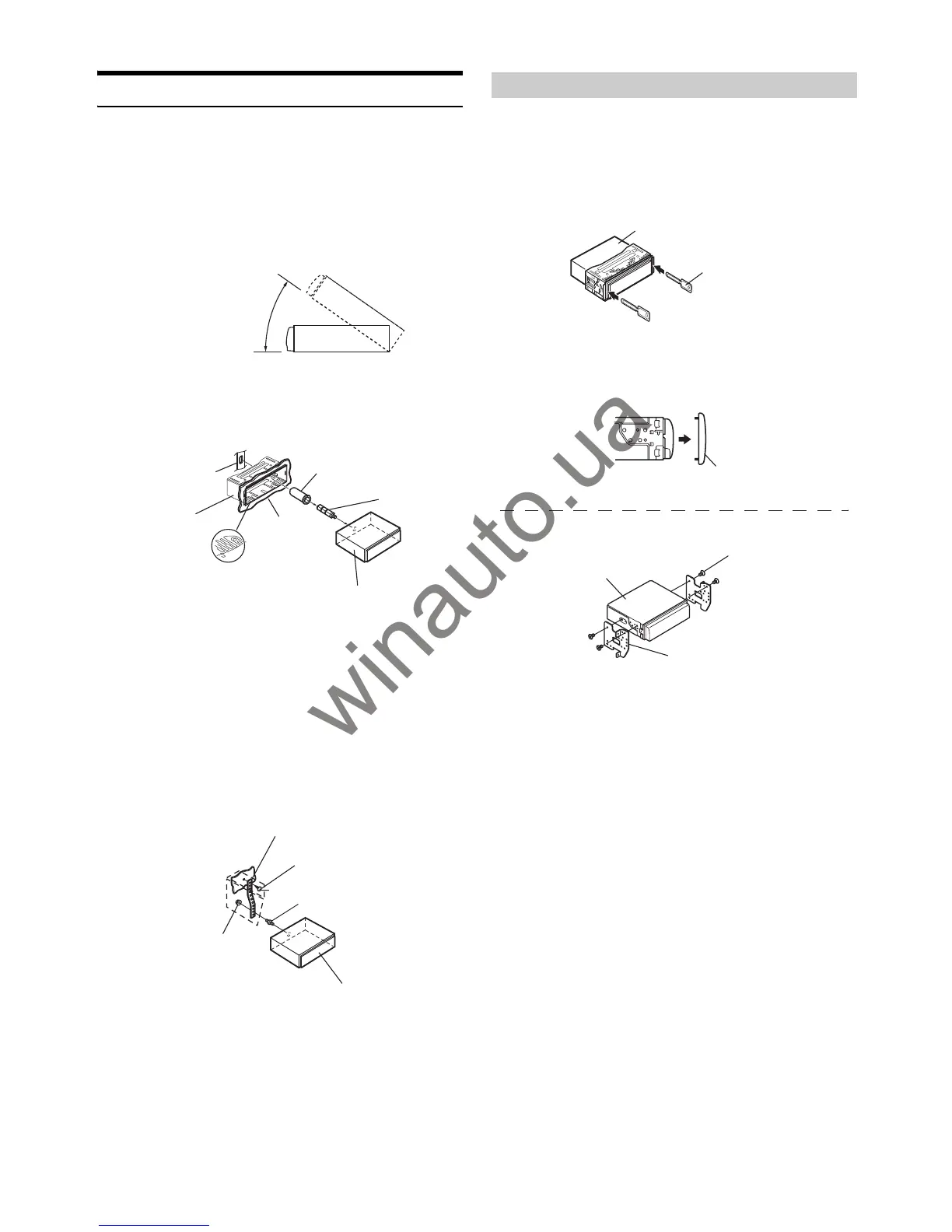

Installation
CAUTION
When you install this unit in your car, do not remove the
detachable front panel.
If the detachable front panel is removed during installation, you
might press too hard and warp the metal plate that holds it in
place.
The main unit must be mounted within 35 degrees of the
horizontal plane, back to front.
1
Remove the mounting sleeve from the main unit (refer to
“Removal” on page 38). Slide the mounting sleeve into the
dashboard and fix it with the metal shackles.
* If the installed mounting sleeve is loose in the dashboard, the
pressure plates may be bent slightly to remedy the problem.
2
When your vehicle has the Bracket, mount the long hex
bolt onto the rear panel of the CDE-174BT/CDE-173BT/
UTE-72BT and put the Rubber Cap on the hex bolt. If your
vehicle does not have the Mounting Support, reinforce
the head unit with the metal mounting strap (not
supplied). Connect all the leads of the CDE-174BT/
CDE-173BT/UTE-72BT according to details described in
the CONNECTIONS section.
* For the screw
*
, provide a proper screw to the chassis installing
location.
3
Slide the CDE-174BT/CDE-173BT/UTE-72BT into the
dashboard until it clicks. This ensures that the unit is
properly locked and will not accidentally come out from
the dashboard. Install the detachable front panel.
1
Remove the detachable front panel.
2
Insert the bracket keys into the unit, along the guides on
either side. The unit can now be removed from the
mounting sleeve.
3
Pull the unit out, keeping it unlocked as you do so.
JAPANESE CAR
To Next Page
