Alpine CDE-173BT User Manual

41-EN

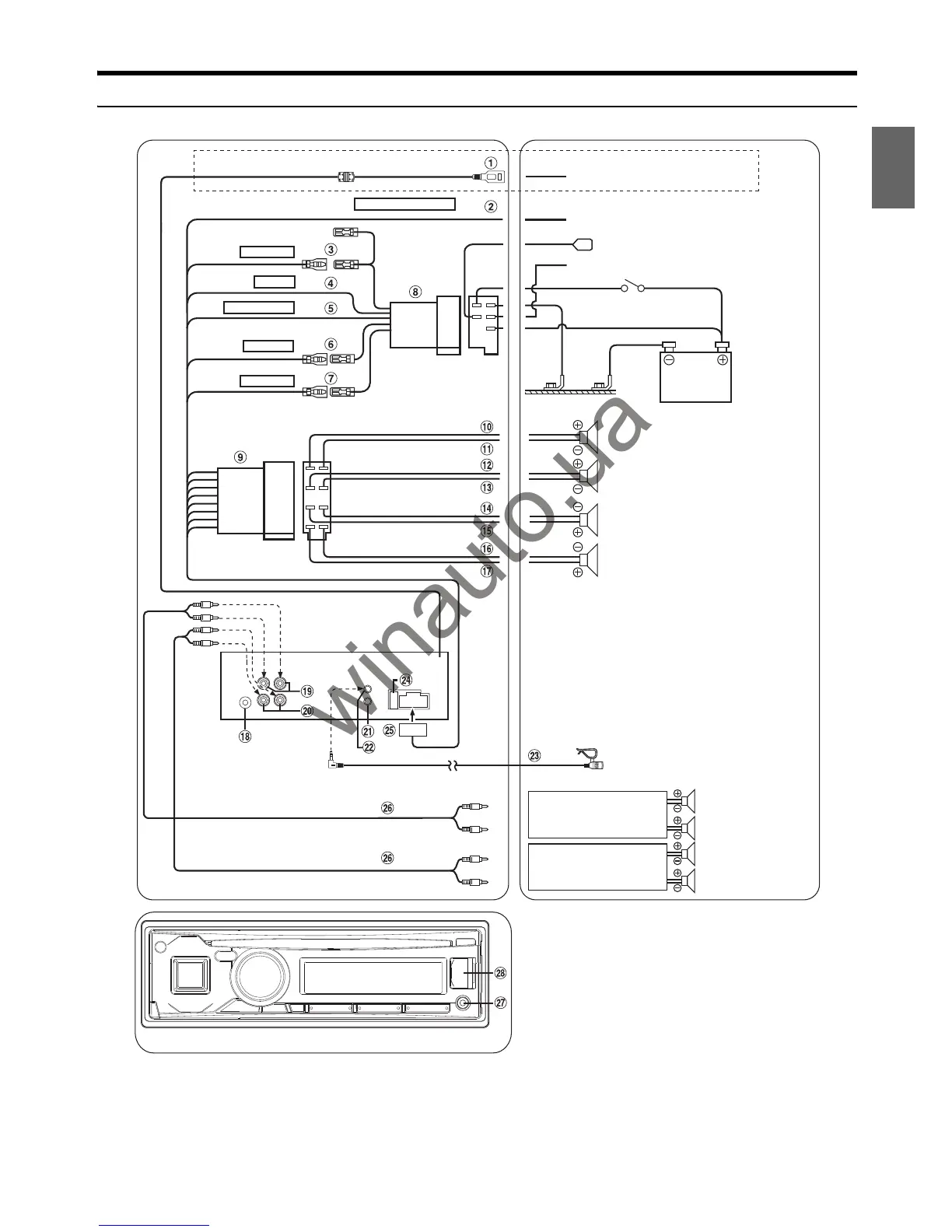

Connections
* When Subwoofer is OFF: Output is for Rear speakers. When Subwoofer is ON: Output is for Subwoofer.
For details on how to set the Subwoofer to ON/OFF, refer to “Turning Subwoofer ON/OFF” on page 18.
IGNITION
GND
POWER ANT
DIMMER
BATTERY
REMOTE TURN-ON
Microphone (supplied)
To USB memory/iPod/iPhone
CDE-174BT only
To amplier
To power antenna
To the instrument cluster illumination lead
Ignition Key
(Blue/White)
(Red)
(Black)
(Blue)
Amplier
Amplier
Battery
Speakers
Rear Left
Front Left
Front Right
Rear Right
Speakers
Front
Rear or Subwoofers*
The illustration is for CDE-173BT.
(Green)
(Green/Black)
(White)
(White/Black)
(Grey/Black)
(Grey)
(Violet/Black)
(Violet)
(Orange)
(Yellow)
