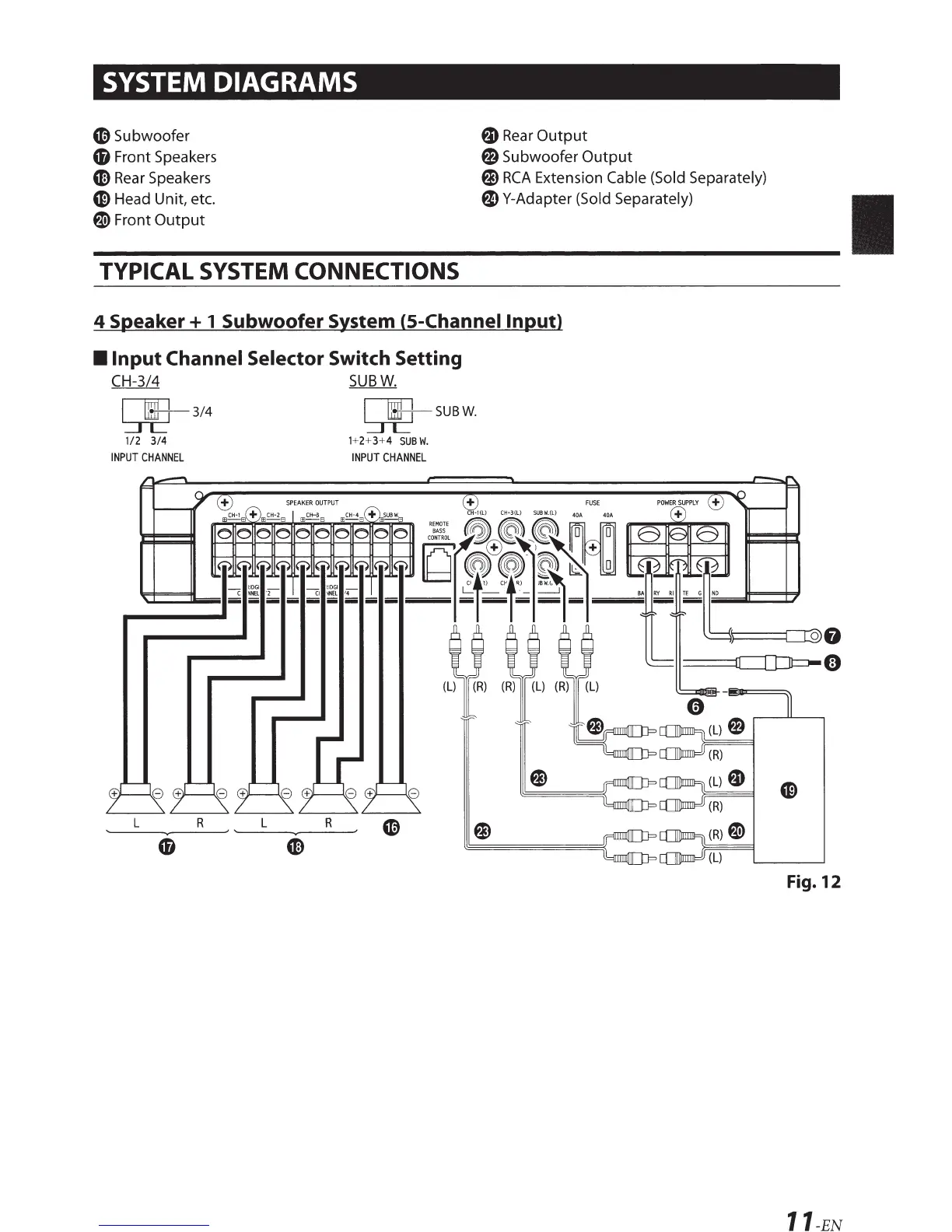

Alpine PDR-V75 - System Diagrams; 5-Channel Input System

SYSTEM DIAGRAMS
~ Subwoofer
«8 Front Speakers
G) Rear Speakers
CD Head Unit, etc.
~ Front Output
TYPICAL SYSTEM CONNECTIONS
~Rear Output
f) Subwoofer Output
@)RCA Extension Cable (Sold Separately)
~ Y-Adapter (Sold Separately)
4 Speaker+ 1 Subwoofer System (5-Channellnput)
• Input Channel Selector Switch Setting
CH-3/4 SUB W.
~ 3/4
~ SUBW.
1/2 3/4 1+2+3+4 SUB W.
INPUT CHANNEL INPUT CHANNEL
SPEAKER OUTPUT
L R L R
(R)
(L)~
(R)
(R)~
(L)
Fig. 12
11-EN
