ATTACHING
THE
TOP
COVER
AND
LOGO
PLATE
1.
Attach the
Top
Cover after connections and
confirmation
of
correct operation.
2.
Peel
the backing paper from the Logo Plate,
then attach
it
to
this
unit
in your desired
direction.

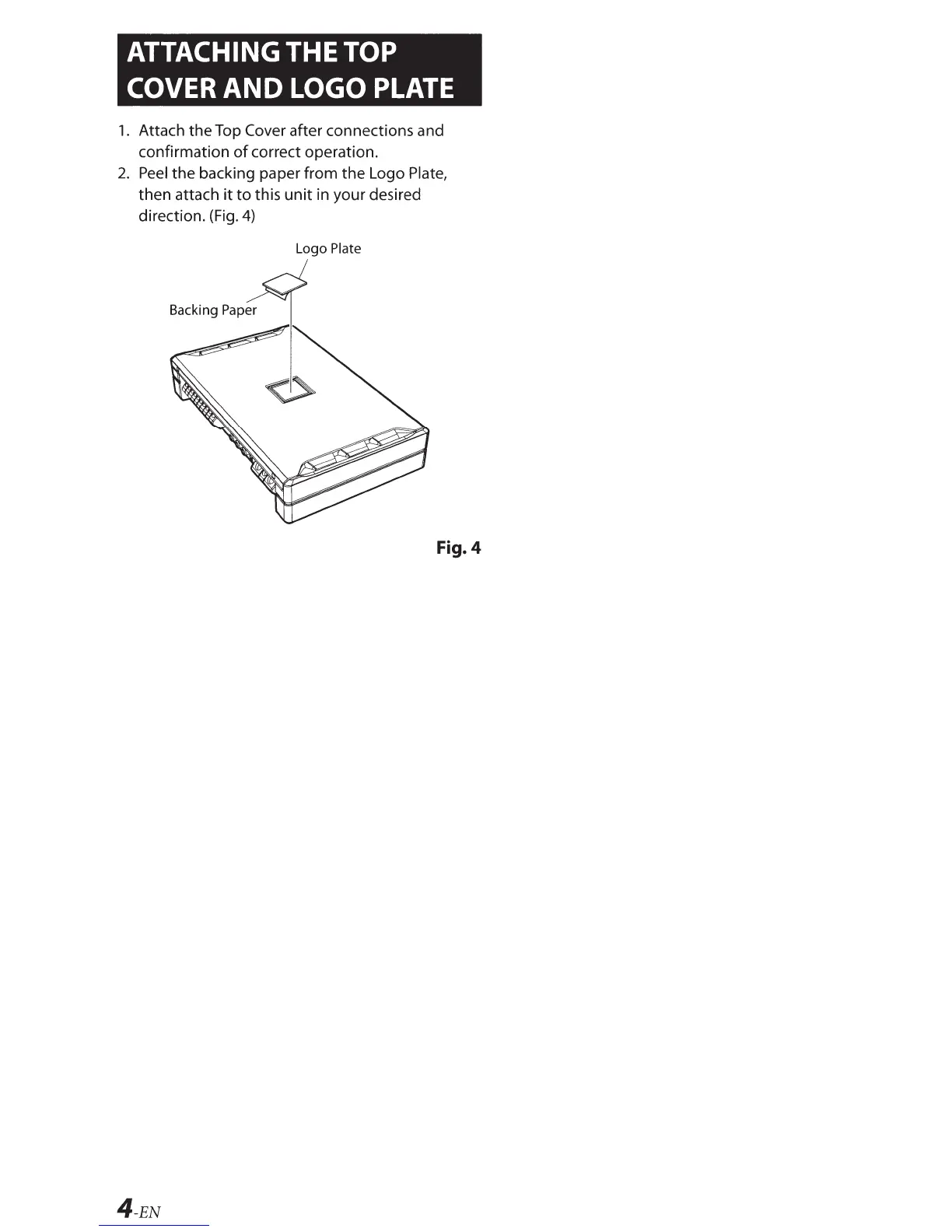

(Fig.
4)
Logo Plate
Fig. 4
4-EN
